M40124
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

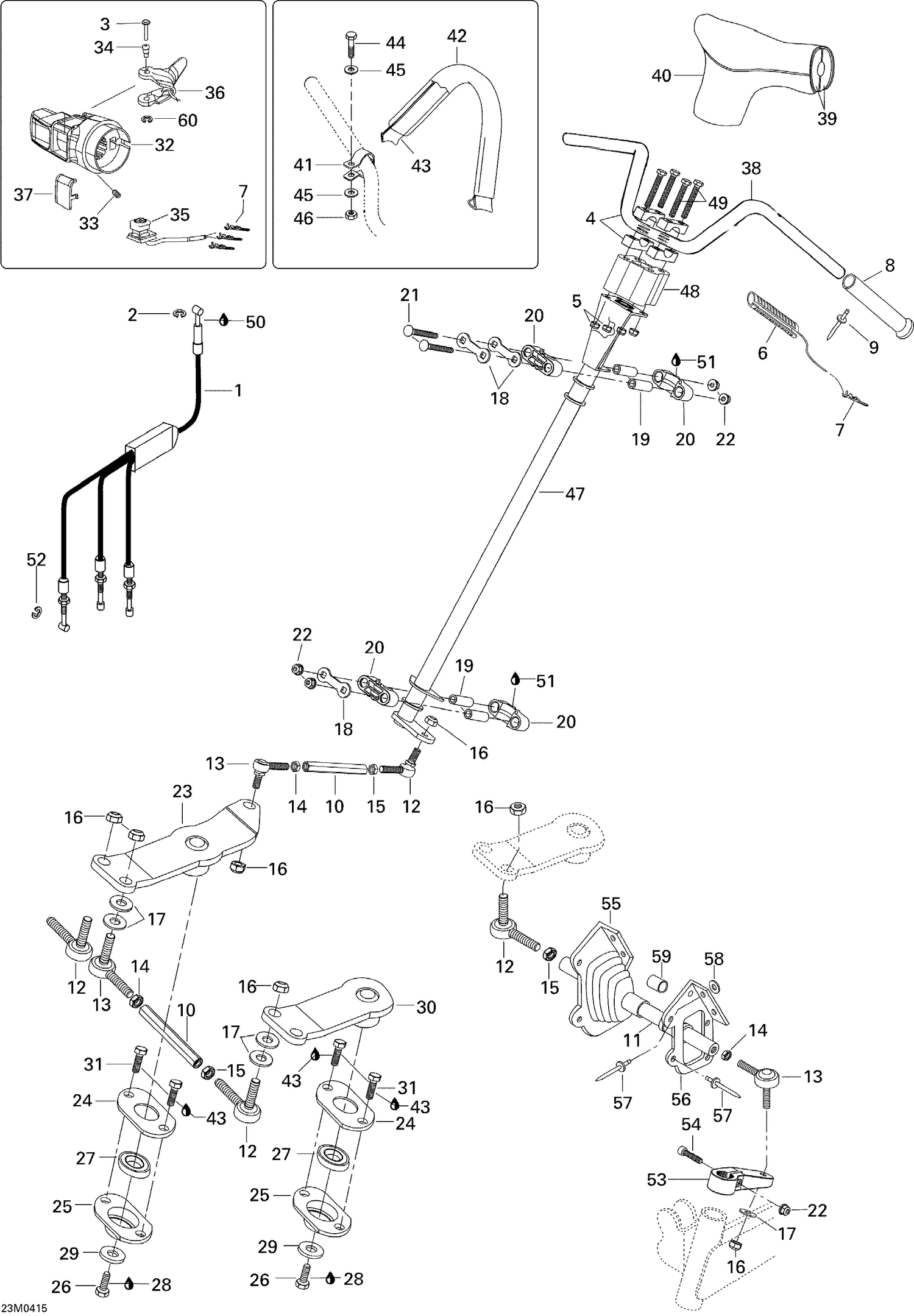

Схема сборки, где используется деталь
Used in (28 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 07- Steering System | Ski-Doo / 2004 / Skandic / Skandic SUV 550F, 2004 / 07- Steering System | 49 |
| SKI_DOO_EN_US | 07- Steering System WT/ WTLC | Ski-Doo / 2004 / Skandic / Skandic WT/SWT 550F , 2004 / 07- Steering System WT/ | 30 |
| SKI_DOO_EN_US | 07- Steering System | Ski-Doo / 2005 / Expedition / Expedition 600 H.O. SDI, 2005 / 07- Steering Syste | 32 |
| SKI_DOO_EN_US | 07- Steering System 550F SUV | Ski-Doo / 2005 / Skandic / Skandic SUV 550F, 2005 / 07- Steering System 550F SUV | 43 |
| SKI_DOO_EN_US | 07- Steering System 600 SUV | Ski-Doo / 2005 / Skandic / Skandic SUV 600, 2005 / 07- Steering System 600 SUV | 43 |
| SKI_DOO_EN_US | 07- Steering System 550F WT | Ski-Doo / 2005 / Skandic / Skandic WT 550F, 2005 / 07- Steering System 550F WT | 32 |
| SKI_DOO_EN_US | 07- Steering System 600 WT | Ski-Doo / 2005 / Skandic / Skandic WT 600, 2005 / 07- Steering System 600 WT | 32 |
| SKI_DOO_EN_US | 07- Steering System | Ski-Doo / 2006 / Expedition / Expedition 600 H.O. SDI, 2006 000FB6A00 000FB6B00 | 32 |
| SKI_DOO_EN_US | 07- Steering System , 500F SUV | Ski-Doo / 2006 / Skandic / Skandic SUV 550F, 2006 000FD6B00 000FD6D00 / 07- Stee | 33 |
| SKI_DOO_EN_US | 07- Steering System , 600 SUV | Ski-Doo / 2006 / Skandic / Skandic SUV 600, 2006 000FC6B00 000FC6D00 / 07- Steer | 33 |
| SKI_DOO_EN_US | 07- Steering System | Ski-Doo / 2007 / Expedition / Expedition TUV 600 H.O. SDI, 2007 000FB7A00 000FB7 | 32 |
| SKI_DOO_EN_US | 07- Steering System 550F SUV | Ski-Doo / 2007 / Skandic / Skandic SUV 550F, 2007 000FD7D00 000FD7F00 / 07- Stee | 33 |
| SKI_DOO_EN_US | 07- Steering System 600 SUV | Ski-Doo / 2007 / Skandic / Skandic SUV 600, 2007 000FC7D00 000FC7E00 / 07- Steer | 33 |
| SKI_DOO_EN_US | 07- Steering System WT | Ski-Doo / 2007 / Skandic / Skandic WT 550F, 2007 000FE7B00 000FF7B00 000FG7B00 / | 22 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2008 / Expedition / Expedition TUV 600 H.O. SDI, 2008 000FB8A00 000FB8 | 32 |
| SKI_DOO_EN_US | 07- Steering 550F | Ski-Doo / 2008 / Skandic / Skandic SUV 550F, 2008 000FT8D00 000FT8E00 / 07- Stee | 32 |
| SKI_DOO_EN_US | 07- Steering 600HO SDI | Ski-Doo / 2008 / Skandic / Skandic SUV 600HO SDI, 2008 000FB8H00 / 07- Steering | 32 |
| SKI_DOO_EN_US | 07- Steering SWT 550F | Ski-Doo / 2008 / Skandic / Skandic SWT 550F, 2008 000FU8C00 / 07- Steering SWT 5 | 22 |
| SKI_DOO_EN_US | 07- Steering WT 550F | Ski-Doo / 2008 / Skandic / Skandic WT 550F, 2008 000FW8B00 / 07- Steering WT 550 | 21 |
| SKI_DOO_EN_US | 07- Steering WT 600 | Ski-Doo / 2008 / Skandic / Skandic WT 600, 2008 000FX8B00 / 07- Steering WT 600 | 21 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2009 / Expedition / Expedition TUV 600 H.O. SDI, 2009 000FB9A00 / 07- | 32 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2009 / Skandic / Skandic SUV, 2009 000FT9D00 / 07- Steering | 32 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2009 / Skandic / Skandic WT 550F, 2009 000FW9B00 / 07- Steering | 21 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2009 / Skandic / Skandic WT 600, 2009 000LS9B00 / 07- Steering | 21 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2010 / Skandic / Skandic SUV 550F, 2010 000FTAD00 / 07- Steering | 32 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2010 / Skandic / Skandic WT 550F, 2010 000FWAB00 000FXAB00 / 07- Steer | 22 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2010 / Skandic / Skandic WT 600, 2010 000FXAB00 / 07- Steering | 22 |
| SKI_DOO_EN_US | 07- Steering | Ski-Doo / 2011 / Skandic / Skandic WT 550F YetiII, 2011 000FWBC00 / 07- Steering | 22 |
