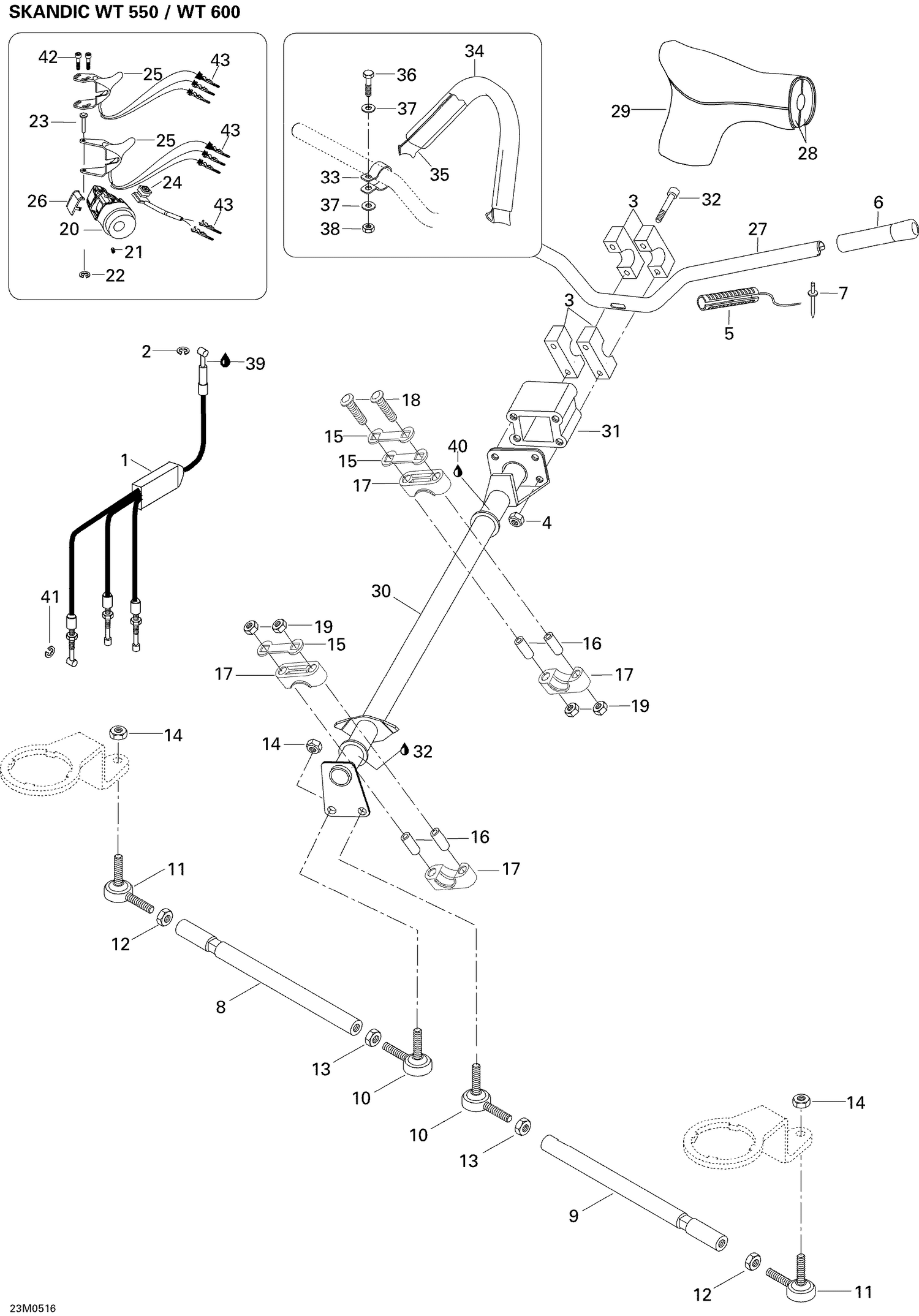

| Ref | Part Number | Description |
|---|
| 2 |
M31038 |
Circlip |
| 3 |
M548448 |
Support Guidon *Support-Steer. |
| 4 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 5 |
515175664 |
Heating Grip |
| 6 |
506152483 |
Grip This part replaces M5340464. |
| 7 |
36005 |
Rivet This part replaces M36005. |
| 8 |
M5441066 |
Tie Rod LH |
| 9 |
M548983 |
Rh Tie Rod |
| 10 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 11 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 12 |
M33019 |
RH NUT - Call your local BRP dealership |
| 13 |
M33017 |
LH NUT - Call your local BRP dealership |
| 14 |
232501416 |
Elastic Flange Nut M10 This part replaces M33023. |
| 15 |
506150600 |
Stopper Plate |
| 16 |
506150500 |
Housing Bushing |
| 17 |
506150400 |
Housing Half |
| 18 |
207787044 |
Carriage Bolt M8 X 70 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 21 |
414440800 |
Socket Set Screw M8 X 10 |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
XXX |
Not Available As Spare Parts |
| 24 |
515175410 |
Kill Switch |
| 26 |
572100901 |
Switch Cover |
| 27 |
605249033 |
HANDLE BAR - Call your local BRP dealership |
| 28 |
605250305 |
Front Padding Steering |
| 28 |
605250306 |
REAR PADDING STEERING - Call your local BRP dealership |
| 30 |
605249849 |
MAIN TUBE - Call your local BRP dealership |
| 31 |
605349584 |
EXTENSION - Call your local BRP dealership |
| 32 |
M40124 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 33 |
XXX |
Not Available As Spare Parts |
| 34 |
XXX |
Not Available As Spare Parts |
| 35 |
XXX |
Not Available As Spare Parts |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 40 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 41 |
414753500 |
Circlip This part replaces M31035. |
