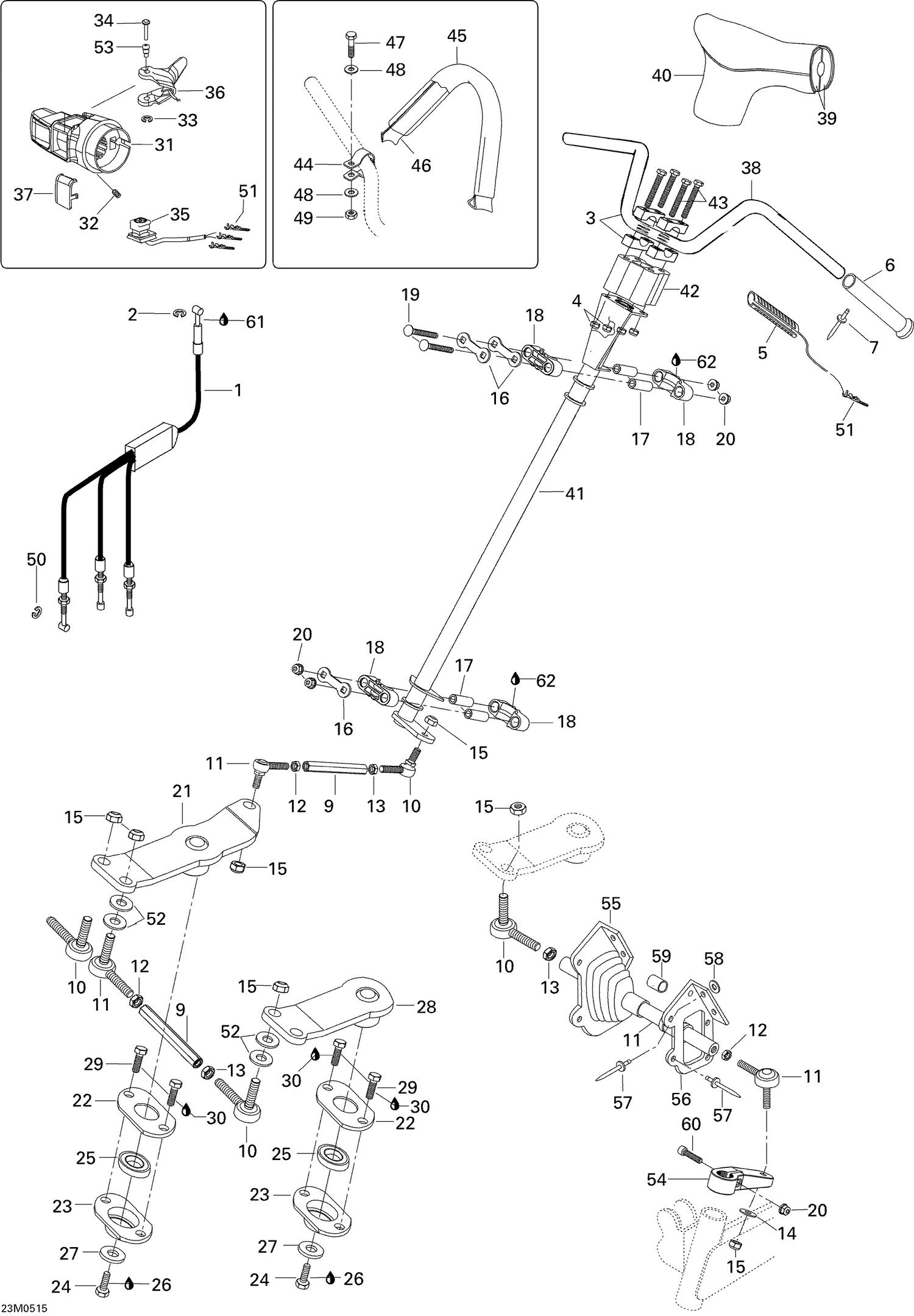

| Ref | Part Number | Description |
|---|
| 2 |
M31038 |
Circlip |
| 3 |
M548448 |
Support Guidon *Support-Steer. |
| 4 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 5 |
515175664 |
Heating Grip |
| 6 |
506152483 |
Grip This part replaces M5340464. |
| 7 |
36005 |
Rivet This part replaces M36005. |
| 8 |
605448307 |
ROD_LINK - Call your local BRP dealership |
| 9 |
605448308 |
SHORT TIE ROD - Call your local BRP dealership |
| 10 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 11 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 12 |
M33019 |
RH NUT - Call your local BRP dealership |
| 13 |
M33017 |
LH NUT - Call your local BRP dealership |
| 14 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 15 |
232501416 |
Elastic Flange Nut M10 This part replaces M33023. |
| 16 |
506150600 |
Stopper Plate |
| 17 |
506150500 |
Housing Bushing |
| 18 |
506150400 |
Housing Half |
| 19 |
207787044 |
Carriage Bolt M8 X 70 |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 21 |
605348402 |
RH WELDED LEVER - Call your local BRP dealership |
| 22 |
M5345380 |
Cover |
| 23 |
605350644 |
Bearing Support |
| 24 |
M40337 |
Hex. Screw |
| 25 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 26 |
293800005 |
Loctite 271, 10 ml |
| 27 |
M5446279 |
WASHER - Call your local BRP dealership |
| 28 |
605348403 |
LH WELDED LEVER - Call your local BRP dealership |
| 29 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 32 |
414440800 |
Socket Set Screw M8 X 10 |
| 33 |
414439000 |
Circlip |
| 34 |
414438700 |
Lever Pin |
| 35 |
515175410 |
Kill Switch |
| 37 |
572100901 |
Switch Cover |
| 38 |
605249033 |
HANDLE BAR - Call your local BRP dealership |
| 39 |
605250305 |
Front Padding Steering |
| 39 |
605250306 |
REAR PADDING STEERING - Call your local BRP dealership |
| 40 |
605250279 |
Handle Bar Cover |
| 41 |
605250189 |
MAIN TUBE - Call your local BRP dealership |
| 42 |
605349584 |
EXTENSION - Call your local BRP dealership |
| 43 |
M40124 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 44 |
506148200 |
Support Plate |
| 45 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 46 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 47 |
207162544 |
Hex. Screw M6 X 25 |
| 48 |
234061410 |
Flat Washer 6 mm |
| 49 |
232561414 |
Elastic Stop Nut M6 |
| 50 |
414753500 |
Circlip This part replaces M31035. |
| 51 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 54 |
M5348261 |
Steering Arm |
| 55 |
570024800 |
RH Tie Rod Cap |
| 55 |
570024900 |
LH TIE ROD CAP - Call your local BRP dealership |
| 56 |
517241200 |
RH Cap Plate |
| 56 |
517241300 |
LH CAP PLATE - Call your local BRP dealership |
| 57 |
M36036 |
Black, Rivet |
| 58 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 59 |
572036500 |
BUSHING - Call your local BRP dealership |
| 60 |
M40828 |
Allen Screw M8 X 45 |
| 61 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
