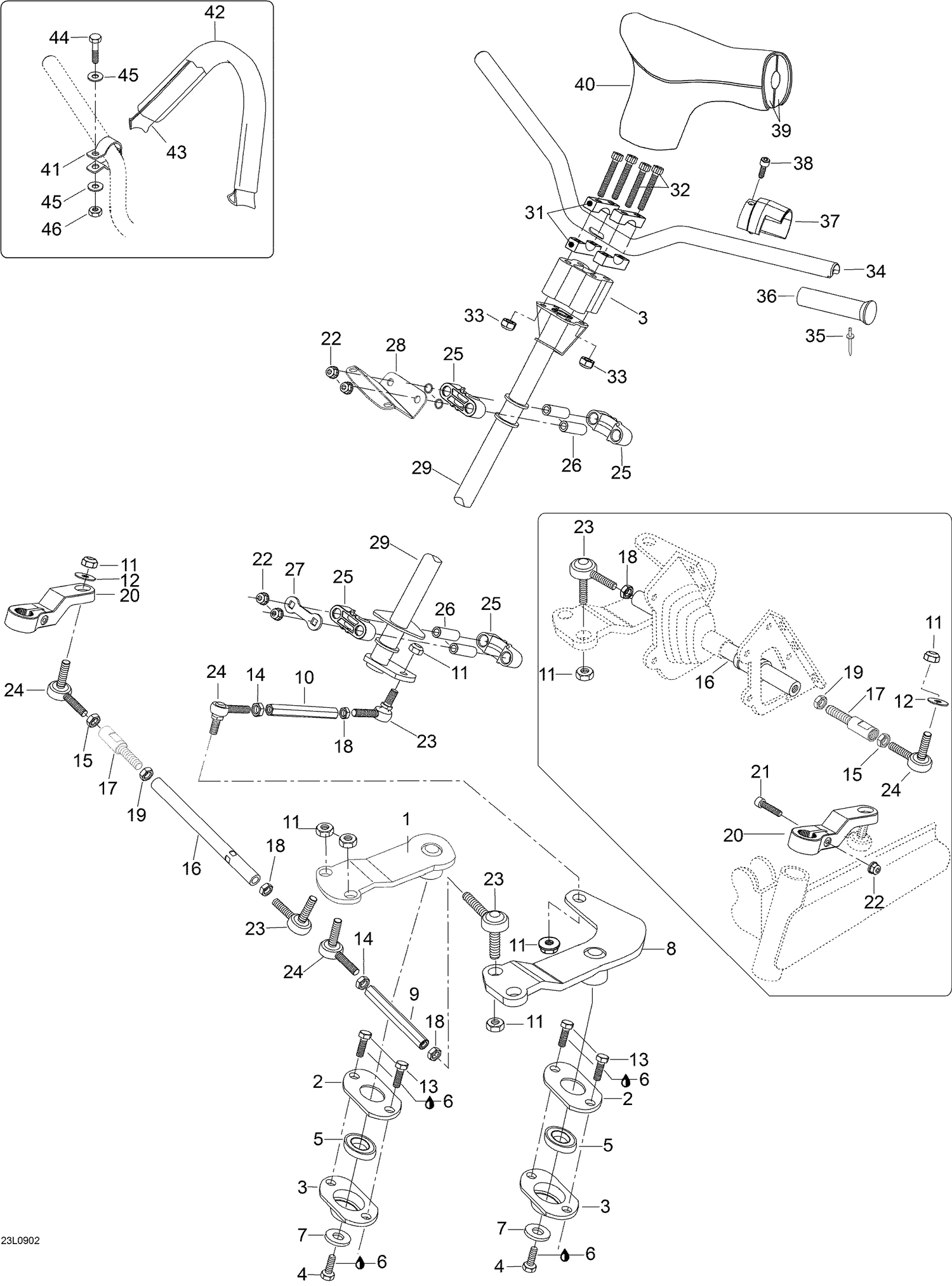

| Ref | Part Number | Description |
|---|
| 1 |
605348403 |
LH WELDED LEVER - Call your local BRP dealership |
| 2 |
M5345380 |
Cover |
| 3 |
605350644 |
Bearing Support |
| 4 |
M40337 |
Hex. Screw |
| 5 |
293350115 |
Ball Bearing This part replaces 503190795. |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
M5446279 |
WASHER - Call your local BRP dealership |
| 8 |
605351764 |
LH LEVER - Call your local BRP dealership |
| 9 |
605448308 |
SHORT TIE ROD - Call your local BRP dealership |
| 10 |
605450220 |
TIE-ROD - Call your local BRP dealership |
| 11 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 12 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 13 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 14 |
M33019 |
RH NUT - Call your local BRP dealership |
| 15 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 16 |
605450794 |
ROD_LINK - Call your local BRP dealership |
| 17 |
605450793 |
ADJUSTER - Call your local BRP dealership |
| 18 |
M33017 |
LH NUT - Call your local BRP dealership |
| 19 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 20 |
M5348261 |
Steering Arm |
| 21 |
M40828 |
Allen Screw M8 X 45 |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 23 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 24 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 25 |
506150400 |
Housing Half |
| 26 |
506150500 |
Housing Bushing |
| 27 |
506150600 |
Stopper Plate |
| 28 |
605352322 |
CONSOLE HOLDER - Call your local BRP dealership |
| 29 |
605251694 |
MAIN TUBE - Call your local BRP dealership |
| 30 |
605349584 |
EXTENSION - Call your local BRP dealership |
| 31 |
M548448 |
Support Guidon *Support-Steer. |
| 32 |
M40124 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 33 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 34 |
605251368 |
HANDLE BAR - Call your local BRP dealership |
| 35 |
36005 |
Rivet This part replaces M36005. |
| 36 |
506152483 |
Grip This part replaces M5340464. |
| 37 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 38 |
M40390 |
Allen Screw M8 X 20 |
| 39 |
605252110 |
FOAM, FRONT - Call your local BRP dealership |
| 39 |
605252111 |
FOAM, REAR - Call your local BRP dealership |
| 40 |
605254571 |
STEERING COVER - Call your local BRP dealership |
| 41 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 42 |
506152115 |
Strap Ass'y |
| 43 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 44 |
207162544 |
Hex. Screw M6 X 25 |
| 45 |
234061410 |
Flat Washer 6 mm |
