5031878
DOWEL PIN

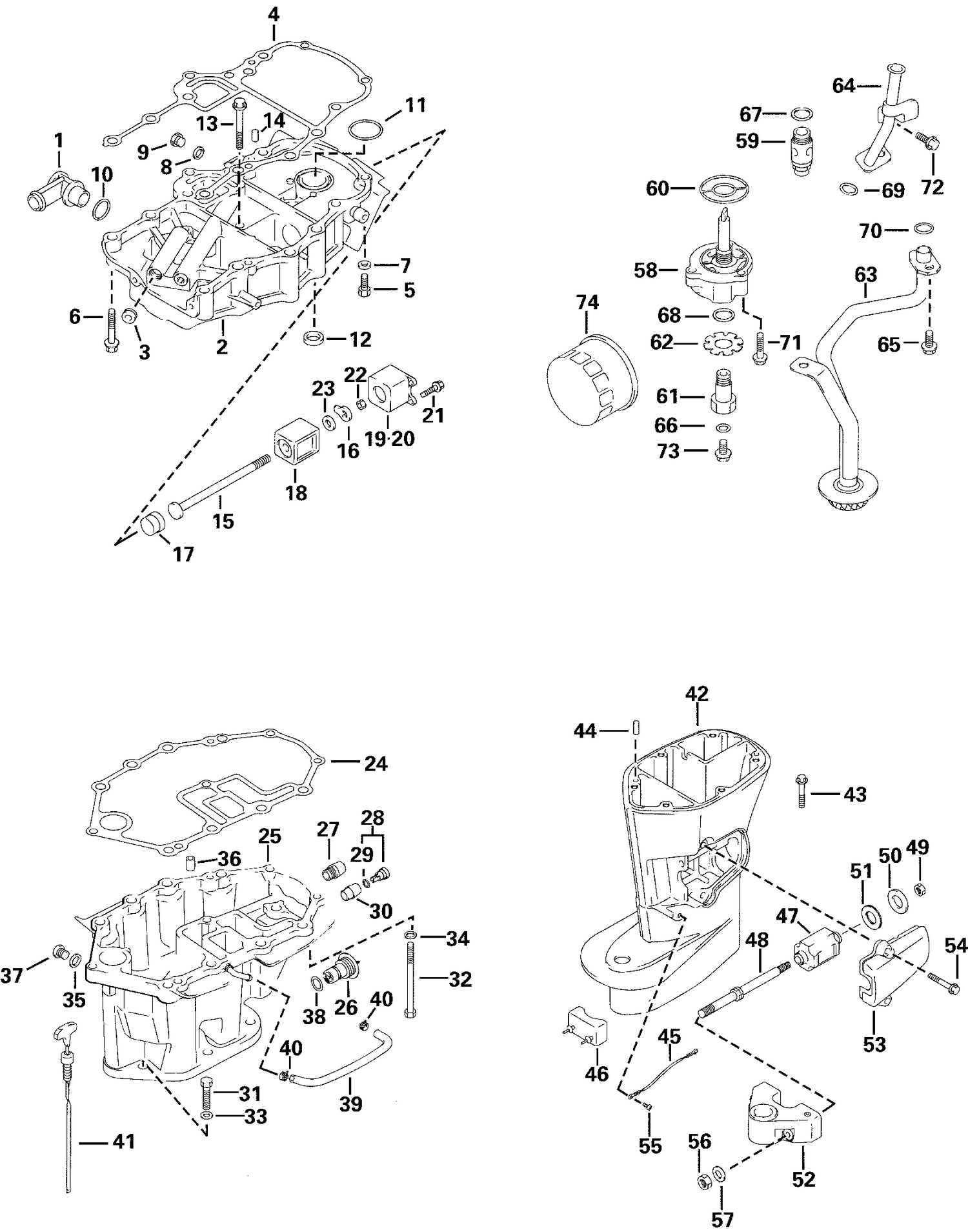

Схема сборки, где используется деталь
Used in (22 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| EJP_EN_US | MIDSECTION & OIL SYSTEM | Evinrude/Johnson / EVINRUDE / 2000 / 25 / E25EL4SSS 4-Stroke, Elec. Start, 20 I | 44 |
| EJP_EN_US | MIDSECTION & OIL SYSTEM | Evinrude/Johnson / EVINRUDE / 2001 / 25 / E25EL4SIC 4-Stroke, Elec. Start, 20 I | 44 |
| EJP_EN_US | DRIVESHAFT HOUSING | Evinrude/Johnson / JOHNSON / 2002 / 15 / J15R4SNF 4-Stroke, Tiller, Rope, Carb | 5 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2002 / 15 / J15R4SNF 4-Stroke, Tiller, Rope, Carb | 12 |
| EJP_EN_US | DRIVESHAFT HOUSING | Evinrude/Johnson / JOHNSON / 2003 / 10 / J10R4STC / DRIVESHAFT HOUSING | 5 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2003 / 10 / J10R4STC / GEARCASE | 12 |
| EJP_EN_US | DRIVESHAFT HOUSING | Evinrude/Johnson / JOHNSON / 2004 / 10 / J10EL4SRC / DRIVESHAFT HOUSING | 5 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2004 / 10 / J10EL4SRC / GEARCASE | 12 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2004 / 25 / J25PL4SRS, J25TEL4SRS / EXHAUST HOUSING | 3 |
| EJP_EN_US | DRIVESHAFT HOUSING | Evinrude/Johnson / JOHNSON / 2005 / 10 / J10EL4SOR / DRIVESHAFT HOUSING | 5 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2005 / 10 / J10EL4SOR / GEARCASE | 12 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2005 / 25 / J25PL4SOC / EXHAUST HOUSING | 3 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2006 / 10 / J10EL4SDA / EXHAUST HOUSING | 5 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2006 / 10 / J10EL4SDA / GEARCASE | 12 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2006 / 25 / BJ25E4SDS / EXHAUST HOUSING | 3 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2006 / 25 / BJ25E4SDS / GEARCASE | 7 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2006 / 30 / J30PL4SDR / EXHAUST HOUSING | 3 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2007 / 10 / J10BL4SUM / EXHAUST HOUSING | 5 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2007 / 10 / J10BL4SUM / GEARCASE | 12 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2007 / 25 / BJ25E4SUC / EXHAUST HOUSING | 3 |
| EJP_EN_US | GEARCASE | Evinrude/Johnson / JOHNSON / 2007 / 25 / BJ25E4SUC / GEARCASE | 7 |
| EJP_EN_US | EXHAUST HOUSING | Evinrude/Johnson / JOHNSON / 2007 / 30 / J30PL4SUA / EXHAUST HOUSING | 3 |
