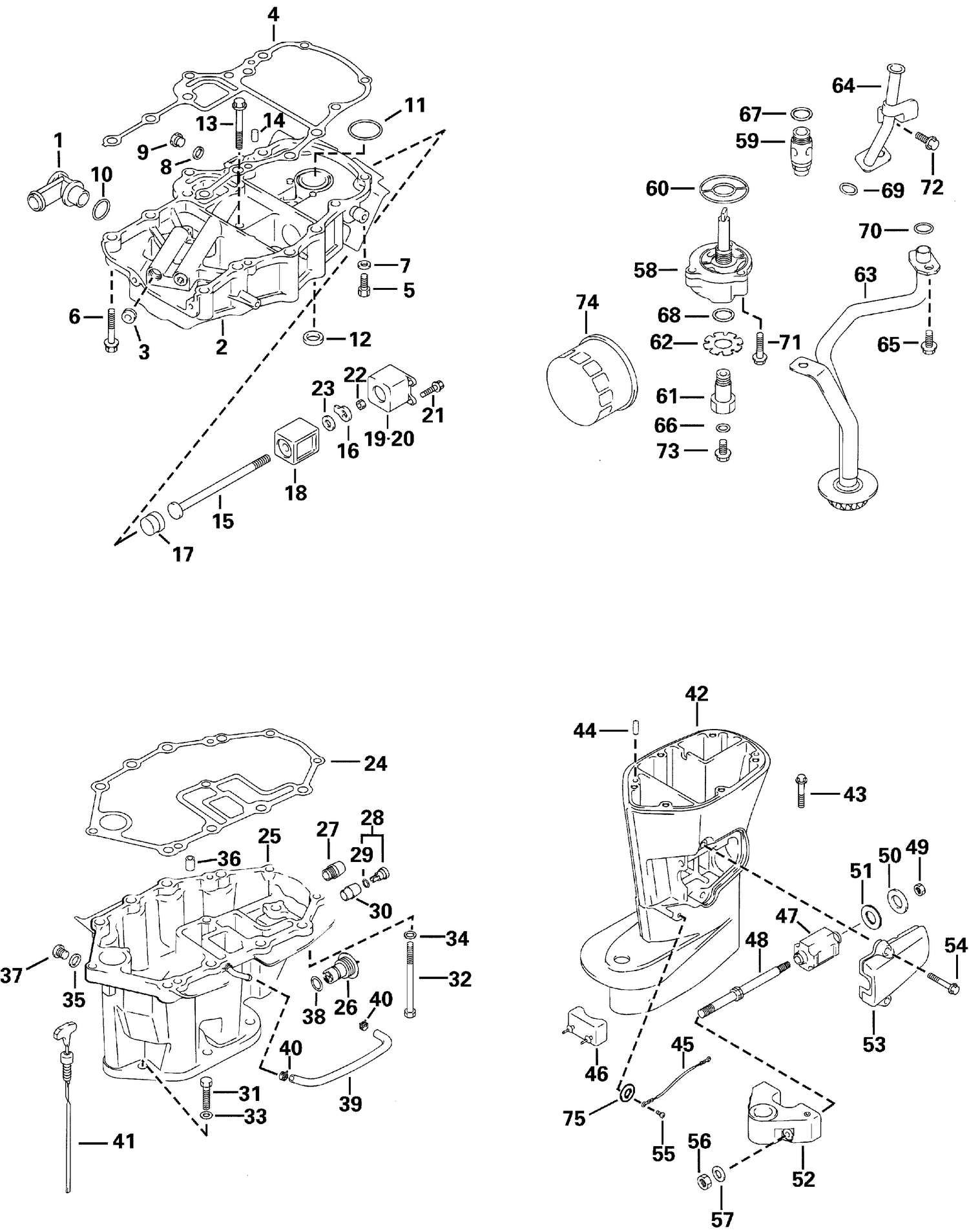

| Ref | Part Number | Description |
|---|
| 1 |
5032910 |
PIPE, Water return hose This part replaces 5030732. |
| 2 |
5032681 |
HOLDER, Engine |
| 4 |
5032078 |
GASKET, Engine holder |
| 5 |
5031816 |
BOLT |
| 6 |
5031822 |
BOLT |
| 8 |
5031863 |
GASKET |
| 9 |
5030525 |
PLUG |
| 10 |
5030539 |
O RING |
| 11 |
5031887 |
O RING (D:2.4 ID:41.7) |
| 12 |
5031266 |
OIL SEAL |
| 13 |
5032293 |
BOLT |
| 15 |
5032081 |
BOLT, Upper mount |
| 16 |
5032082 |
WASHER, Upper mount bolt |
| 17 |
5032083 |
MOUNT, Upper thrust |
| 18 |
5032084 |
MOUNT, Upper |
| 19 |
5032085 |
COVER, Upper mount, stbd. |
| 20 |
5032086 |
COVER, Upper mount, port |
| 22 |
*5030054 |
NUT |
| 23 |
5031224 |
WASHER |
| 24 |
5031927 |
GASKET, OIL PAN |
| 25 |
5031928 |
OIL PAN |
| 26 |
5032682 |
PLUG, Water |
| 28 |
5030930 |
COVER |
| 30 |
5030929 |
TUBE, WATER INDICATOR |
| 31 |
5030383 |
BOLT, Friction block |
| 32 |
5031813 |
BOLT, Oil pan to cyl. and crankcase |
| 34 |
5031224 |
WASHER |
| 35 |
5030465 |
GASKET |
| 36 |
5030511 |
PIN |
| 37 |
5030525 |
PLUG |
| 38 |
5030536 |
O RING |
| 41 |
5031988 |
DIPSTICK, Oil level |
| 43 |
5031212 |
BOLT |
| 44 |
5031878 |
DOWEL PIN |
| 45 |
5030821 |
BONDING LEAD, Exh. hsg. to bracket |
| 46 |
5030886 |
DAMPER, Mount |
| 47 |
5032087 |
MOUNT, Lower |
| 48 |
5031531 |
BOLT, Lower mount |
| 49 |
5030419 |
NUT |
| 50 |
5030437 |
WASHER |
| 51 |
5032294 |
STOP, Lower mount |
| 52 |
5032088 |
BRACKET, Lower mount |
| 53 |
5031533 |
COVER, Lower mount |
| 54 |
5031212 |
BOLT |
| 55 |
5030407 |
SCREW (5X8) |
| 56 |
5031221 |
NUT |
| 58 |
5031985 |
OIL PUMP ASSY. |
| 59 |
5030712 |
VALVE Assy, OIL RELIEF |
| 60 |
5031986 |
O RING, OIL PUMP |
| 61 |
5030714 |
STOP, Oil pump |
| 62 |
5030715 |
WASHER, Oil pump stop |
| 63 |
5031987 |
STRAINER, Oil |
| 64 |
5031989 |
GUIDE, Oil level gauge |
| 65 |
5030392 |
BOLT (6X16) |
| 66 |
5036000 |
GASKET This part replaces 5030464. |
| 67 |
5030469 |
GASKET |
| 68 |
5030470 |
GASKET This part replaces 5031864. |
| 70 |
5030537 |
O RING |
| 71 |
5032286 |
BOLT |
| 73 |
5030992 |
BOLT |
