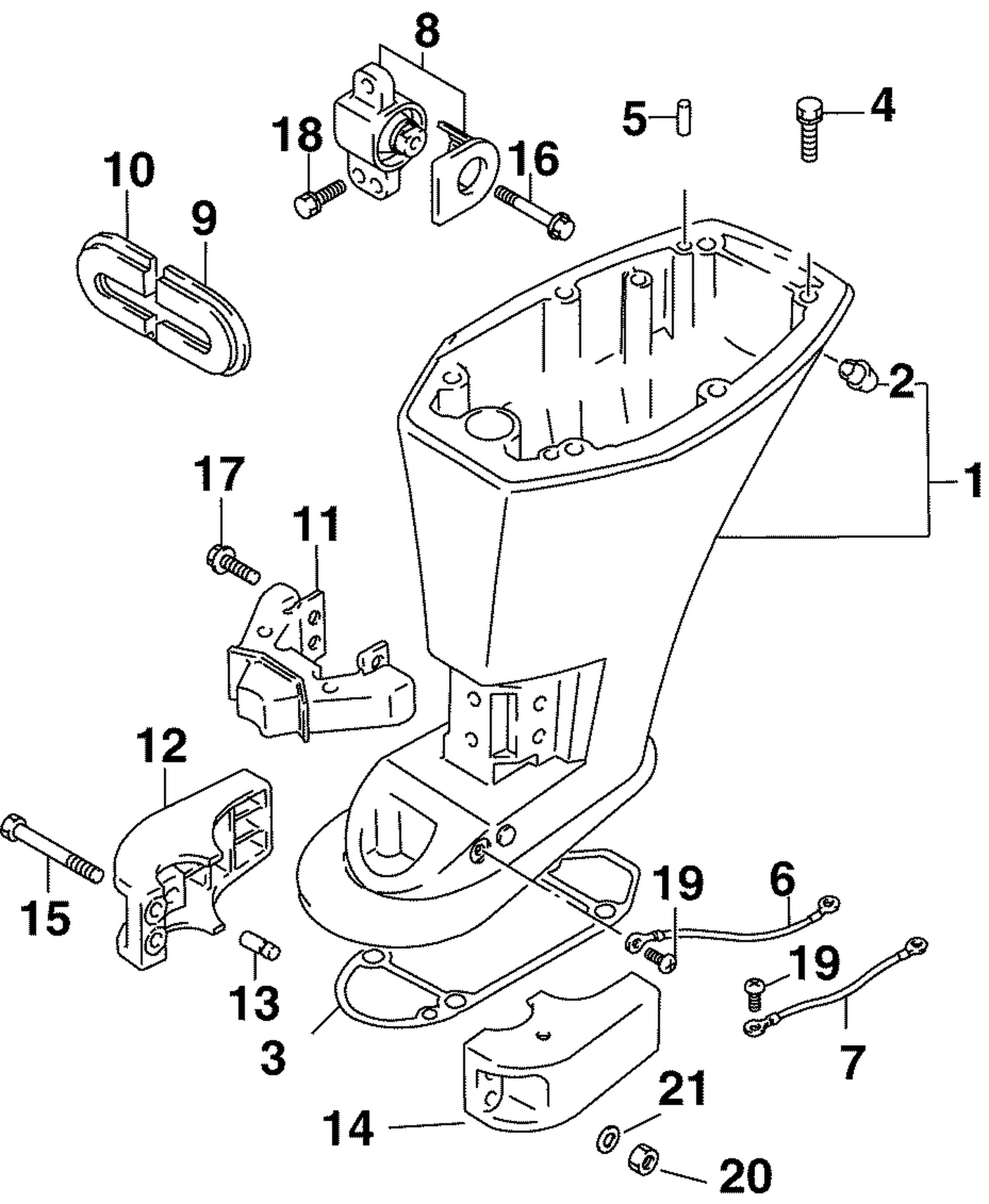

DRIVESHAFT HOUSING
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034470 | CARTER, ARBRE D'ENTRAÎNEMENT 15" - BLANC |
| 1 | 5035588 | HOUSING, DRIVE SHAFT 15" |
| 4 | 5034399 | BOLT (8X30) |
| 5 | 5031878 | DOWEL PIN |
| 6 | 5030821 | BONDING LEAD, Exh. hsg. to bracket |
| 7 | 5033157 | FIL (PIVOTANT VERS SUPPORT) (210mm) |
| 11 | 5033182 | MOUNT, LOWER |
| 13 | 5033183 | GOUPILLE |
| 16 | 5031212 | BOLT |
| 17 | 5034400 | BOULON |
| 18 | 5034399 | BOLT (8X30) |
| 19 | 5030407 | SCREW (5X8) |
