Home / BRP / JOHNSON / 2007 / 25 / BJ25E4SUC / GEARCASE

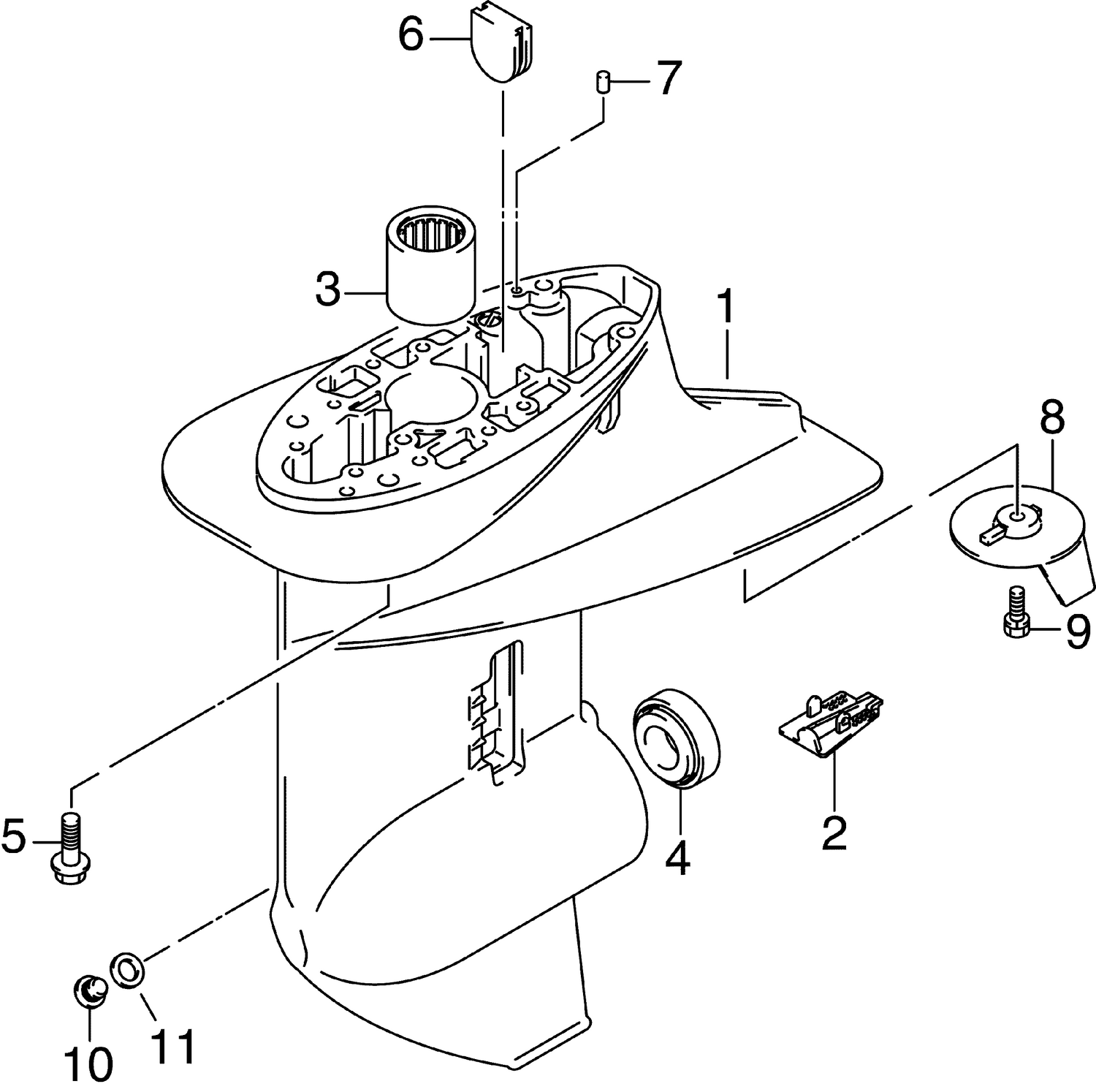

GEARCASE

GEARCASE

Parts (8)

RefPart NumberDescription
1 5037035 GEARCASE Assy, White
5 5034399 BOLT (8X30)
6 5037036 GROMMET
7 5031878 DOWEL PIN
8 5032091 TRIM TAB
9 5034400 BOULON
10 5030094 BOLT (10X7.5mm)
11 5030071 GASKET
