502007022
Lower Fastening Plate

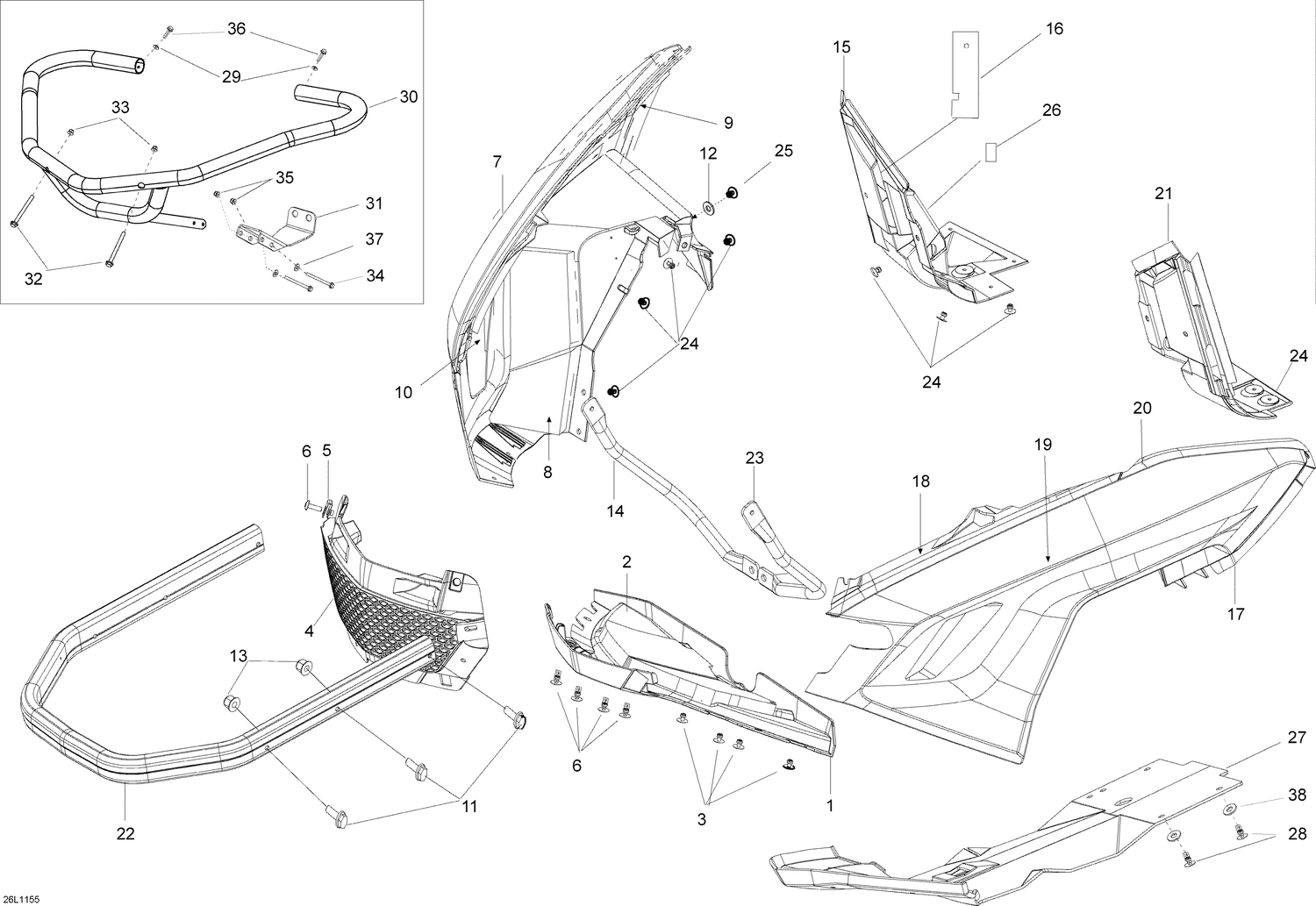

Схема сборки, где используется деталь
Used in (30 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Bottom Pan | Lynx / 2011 / Adventure / Adventure GT 1200 4-TEC, 2011 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2011 / Adventure / Adventure GT 600 E-TEC, 2011 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2011 / Xtrim / Xtrim Commander 600 E-TEC, 2011 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2011 / Xtrim / Xtrim Commander Limited 600 E-TEC, 2011 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2012 / Adventure / Adventure GT 1200 4-TEC CE, 2012 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2012 / Adventure / Adventure GT 1200 4-TEC, 2012 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2012 / Adventure / Adventure GT 600 E-TEC, 2012 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2012 / Xtrim Commander / Xtrim Commander 600 E-TEC, 2012 / 09- Bottom Pan | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2012 / Xtrim Commander / Xtrim Commander Limited 600 E-TEC, 2012 / 09- Bo | 31 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2013 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2013 000LYDE00 / 09- Bottom | 26 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2014 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2014 000LYEE00 / 09- Bottom | 26 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2015 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2015 000LYFE00 / 09- Bottom | 26 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2016 / Ranger / 69 Ranger (4-Stroke), 2016 000LCGA00 / 09- Bottom Pan | 36 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2017 / Ranger / 69 Ranger Alpine, 2017 000LCHA00 / 09- Bottom Pan | 36 |
| LNX_EN_US | 09- Bottom Pan 69Ranger - Alpine | Lynx / 2018 / 69 Ranger Series / 69 Ranger 1200 4-TEC, 2018 000LCJA00 / 09- Bott | 36 |
| LNX_EN_US | 09- Bottom Pan Commander - Compass | Lynx / 2018 / Commander Series / Commander 800R E-TEC, 2018 000SAJA00 000SAJB00 | 41 |
| LNX_EN_US | 09- Bottom Pan Commander - Compass | Lynx / 2018 / Commander Series / Commander 800R E-TEC, 2018 000SAJA00 000SAJB00 | 54 |
| LNX_EN_US | 09- Bottom Pan 69 Ranger - 1200 4-TEC | Lynx / 2019 / 005 - 69 Ranger Series / 003 - 69 Ranger 1200 4-TEC, 2019 000LCKA0 | 36 |
| LNX_EN_US | 09- Body - Bottom Pan | Lynx / 2020 / 004 - 69 Ranger Series / 003 - 69 RANGER 1200 4-TEC, 2020 000LCLA0 | 36 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2011 / Expedition / Expedition SE 1200 XU, 2011 000SPBA00 000SPBE00 / | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2011 / Expedition / Expedition SE 600HOETEC XU, 2011 000SGBE00 / 09- B | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2012 / Expedition / Expedition SE 1200 XU, 2012 000SPCA00 000SPCE00 / | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2012 / Expedition / Expedition SE 600HOETEC XU, 2012 000SGCB00 000SGC | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2013 / EXPEDITION / EXPEDITION SE 12004TEC, REVXU, 2013 000SPDA00 000S | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2013 / EXPEDITION / EXPEDITION SE 600HOE, REV XU, 2013 000SGDE00 / 09- | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2014 / EXPEDITION / EXPEDITION SE 1200 XU, 2014 000SPEE00 / 09- Bottom | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2014 / EXPEDITION / EXPEDITION SE 600HOE, XU, 2014 000SGEB00 000SGEE00 | 31 |
| SKI_DOO_EN_US | 09- Bottom Pan _30M1558 | Ski-Doo / 2015 / EXPEDITION / Expedition SE 1200, 2015 000SPFA00 000SPFE00 / 09- | 39 |
| SKI_DOO_EN_US | 09- Bottom Pan _30M1554 | Ski-Doo / 2015 / EXPEDITION / Expedition SE 600 E-TEC, 2015 000SGFE00 / 09- Bott | 39 |
| SKI_DOO_EN_US | 09- Bottom Pan _30M1555 | Ski-Doo / 2015 / EXPEDITION / Expedition SE 900 ACE, 2015 000SRFE00 / 09- Bottom | 39 |
