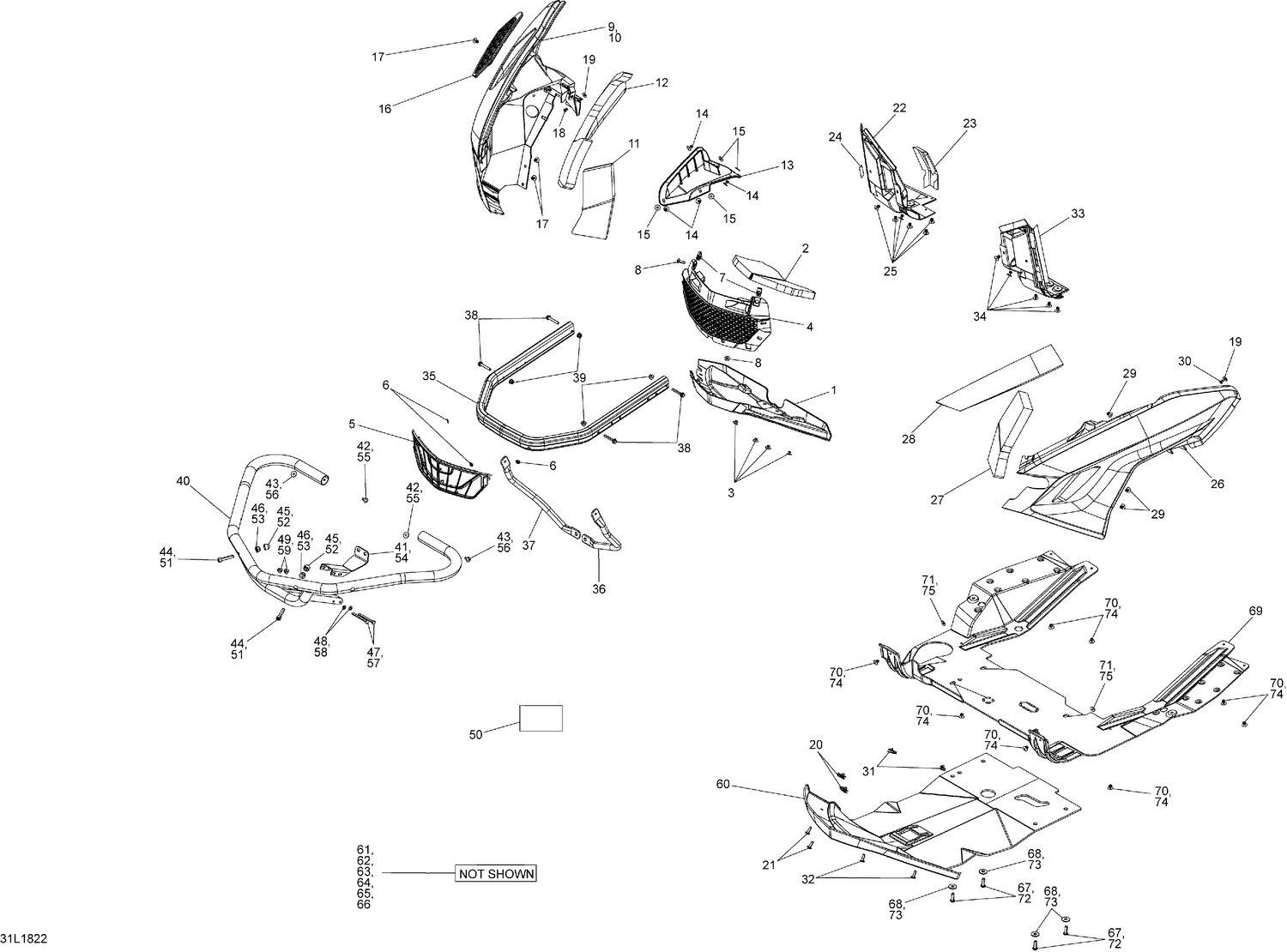

09- Bottom Pan Commander - Compass
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502008006 | Black, Front Bottom Pan This part replaces 502007184. |
| 2 | 502007002 | Isolation |
| 3 | 293150103 | Pop Rivet 3/16 |
| 4 | 502007145 | Front Grill |
| 5 | 502007393 | Front grill with mesh |
| 6 | 732610072 | Push Nut |
| 7 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 8 | 250000722 | Torx Truss Screw M6 x 20 |
| 11 | 502007526 | Isolation |
| 12 | 517305977 | Isolation |
| 13 | 517306982 | RH Bottom Pan Air Vent This part replaces 517306541. |
| 14 | 293150104 | Pop Rivet 3/16 |
| 15 | 250200025 | Washer M5 |
| 16 | 517305976 | RH Bottom Pan Grill |
| 17 | 293150104 | Pop Rivet 3/16 |
| 18 | 390402200 | Pop Rivet 3/16 |
| 19 | 234052450 | Flat Washer M5 |
| 20 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 21 | 250000722 | Torx Truss Screw M6 x 20 |
| 23 | 502007038 | Reflective sheet |
| 24 | 44110 | Aluminum Foil |
| 25 | 293150104 | Pop Rivet 3/16 |
| 27 | 502007003 | Isolation |
| 28 | 502007185 | Insulator |
| 29 | 293150104 | Pop Rivet 3/16 |
| 30 | 390402200 | Pop Rivet 3/16 |
| 31 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 32 | 250000722 | Torx Truss Screw M6 x 20 |
| 33 | 502008012 | LH Rear Bottom Pan This part replaces 502007827. |
| 34 | 293150104 | Pop Rivet 3/16 |
| 35 | 502007685 | Black Anod. Bumper |
| 36 | 502007014 | LH Bumper Support Tube |
| 37 | 502007015 | RH Bumper Support Tube |
| 38 | 207664044 | Hex. Flange Screw M6 X 40 |
| 39 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 41 | 502007022 | Lower Fastening Plate |
| 42 | 250000717 | Torx Head Screw M6 X 16 |
| 43 | 20117 | Washer |
| 44 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 45 | 28056 | Cover |
| 46 | 233281414 | Hex. Flange Elastic Nut M8 |
| 47 | 207066044 | Screw -Hex.Cap DIN.931 |
| 48 | 234061410 | Flat Washer 6 mm |
| 49 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 280400238 | Packaging Label |
| 51 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 52 | 28056 | Cover |
| 53 | 233281414 | Hex. Flange Elastic Nut M8 |
| 54 | 502007022 | Lower Fastening Plate |
| 55 | 250000717 | Torx Head Screw M6 X 16 |
| 56 | 20117 | Washer |
| 57 | 207066044 | Screw -Hex.Cap DIN.931 |
| 58 | 234061410 | Flat Washer 6 mm |
| 59 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 62 | 502007066 | SKID PLATE FASTENER - Call your local BRP dealership |
| 63 | 205982086 | SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 64 | 234082410 | Flat Washer 8 mm |
| 65 | 250000722 | Torx Truss Screw M6 x 20 |
| 66 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 67 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 68 | 234082410 | Flat Washer 8 mm |
| 70 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 71 | 517124300 | Washer |
| 72 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 73 | 234082410 | Flat Washer 8 mm |
| 74 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
