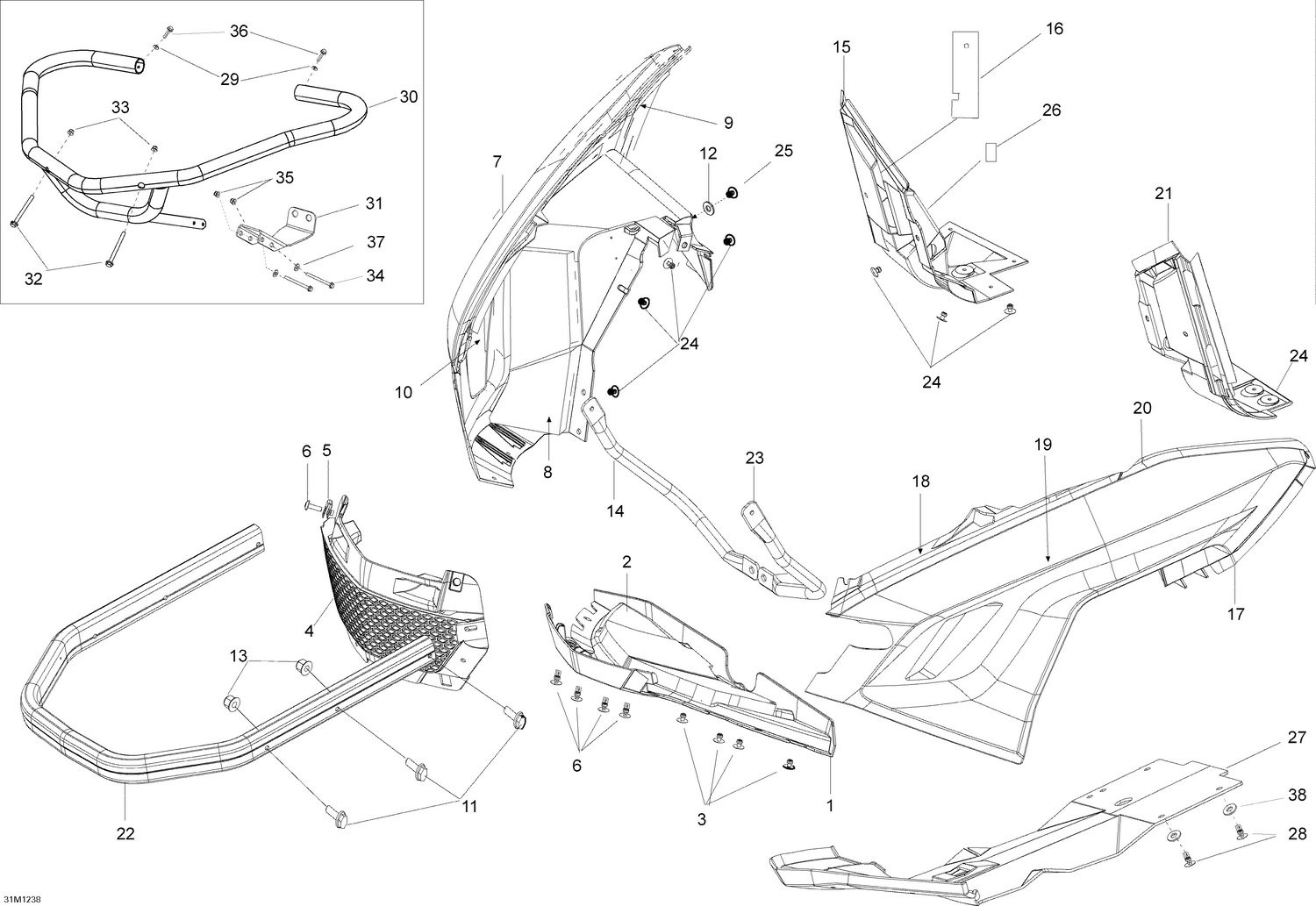

09- Bottom Pan
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502008006 | Black, Front Bottom Pan This part replaces 502007184. |
| 2 | 502007002 | Insulator |
| 3 | 293150103 | Pop Rivet 3/16" |
| 4 | 502007145 | Grille |
| 5 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 6 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 7 | 502007992 | Bottom Pan R.H. This part replaces 502007187. |
| 8 | 502007006 | Insulator |
| 9 | 502007008 | INSULATOR - Call your local BRP dealership |
| 10 | 502007009 | Insulator |
| 11 | 207664044 | Hex. Flange Screw M6 X 40 |
| 12 | 234052490 | WASHER M5 - Call your local BRP dealership |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 502007015 | RH Bumper Support |
| 15 | 502007191 | Black Bottom Pan Rear Ass'y RH |
| 16 | 502007038 | Aluminium Foil |
| 17 | 502008002 | Deep Black, LH Bottom Pan This part replaces 502007198. |
| 18 | 502007003 | Insulator |
| 19 | 502007004 | INSULATOR - Call your local BRP dealership |
| 20 | 502007005 | INSULATOR - Call your local BRP dealership |
| 21 | 502008012 | LH Rear Bottom Pan This part replaces 502007195. |
| 22 | 502007229 | Black Bumper |
| 23 | 502007014 | LH Bumper Support |
| 24 | 293150104 | Pop Rivet 3/16" |
| 25 | 390402200 | Pop Rivet 3/16" |
| 26 | M44110 | REFLECTIVE SHEET - Call your local BRP dealership |
| 27 | 502007164 | Black Skid Plate Front Xu Aa |
| 28 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 29 | 20117 | Washer This part replaces M20117. |
| 30 | 860200350 | BUMPER F KIT - Call your local BRP dealership |
| 31 | 502007022 | Lower Fastening Plate |
| 32 | 205084544 | Socket Head Screw M8 X 45 |
| 33 | 233281414 | Hex. Flange Elastic Nut M8 |
| 34 | 207066044 | Hex. Screw M6 X 60 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 36 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 37 | 234061410 | Flat Washer 6 mm |
