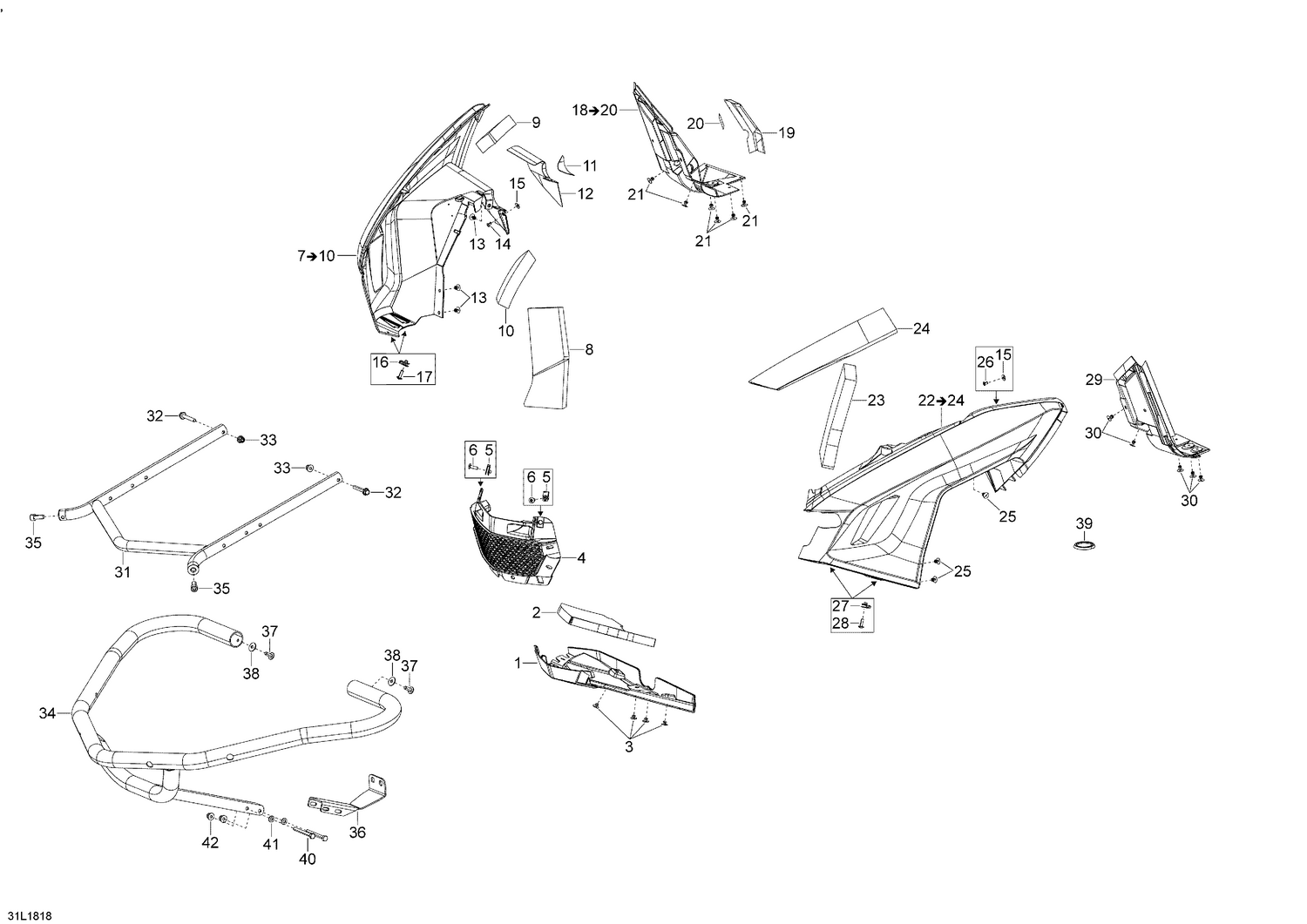

09- Bottom Pan 69Ranger - Alpine
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502008006 | Black, Front Bottom Pan This part replaces 502007184. |
| 2 | 502007002 | Isolation |
| 3 | 293150103 | Pop Rivet 3/16 |
| 4 | 502007145 | Front Grill |
| 5 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 6 | 250000722 | Torx Truss Screw M6 x 20 |
| 8 | 502007526 | Isolation |
| 10 | 502007009 | Isolation |
| 11 | 517306507 | Heat Shield |
| 12 | 517306508 | Heat Shield |
| 13 | 293150104 | Pop Rivet 3/16 |
| 14 | 390402200 | Pop Rivet 3/16 |
| 15 | 234052450 | Flat Washer M5 |
| 16 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 17 | 250000722 | Torx Truss Screw M6 x 20 |
| 19 | 502007038 | Reflective sheet |
| 20 | 44110 | Aluminum Foil |
| 21 | 293150104 | Pop Rivet 3/16 |
| 23 | 502007003 | Isolation |
| 24 | 502007185 | Insulator |
| 25 | 293150104 | Pop Rivet 3/16 |
| 26 | 390402200 | Pop Rivet 3/16 |
| 27 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 28 | 250000722 | Torx Truss Screw M6 x 20 |
| 29 | 502008012 | LH Rear Bottom Pan This part replaces 502007827. |
| 30 | 293150104 | Pop Rivet 3/16 |
| 31 | 502007235 | BUMPER WELD PAINTED - Call your local BRP dealership |
| 32 | 207664044 | Hex. Flange Screw M6 X 40 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | 205082044 | Socket Head Screw M8 X 20 |
| 36 | 502007022 | Lower Fastening Plate |
| 37 | 250000717 | Torx Head Screw M6 X 16 |
| 38 | 20117 | Washer |
| 39 | 518329102 | Oil Plate Cover |
| 40 | 207066044 | Screw -Hex.Cap DIN.931 |
| 41 | 234061410 | Flat Washer 6 mm |
| 502007181 | Bottom | Pan Ce RH 502007181 |
