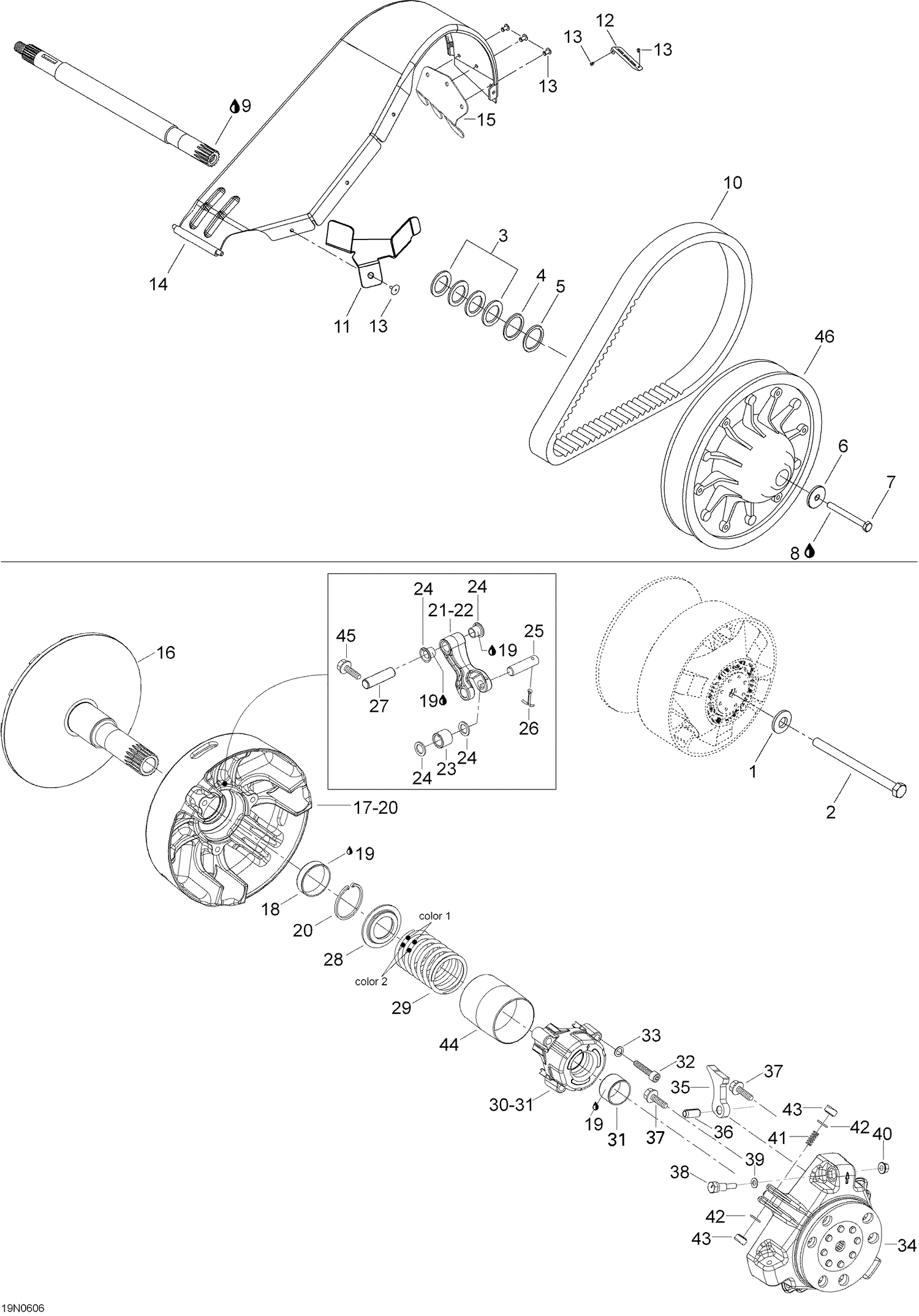

05- Drive System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20110 | Conical spring washer M14 |
| 2 | 417120000 | Drive pulley bolt M14 |
| 3 | 417300252 | Spacer This part replaces 417300231. |
| 4 | 417300265 | Spacer This part replaces 417300054. |
| 5 | 504112000 | Spacer |
| 6 | 517302322 | Washer |
| 7 | 207089044 | Hex. Screw M8 x 90 This part replaces 40090. |
| 8 | 293800060 | Loctite 243, 10ml |
| 9 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 10 | 417300297 | BELT_DRIVE - Call your local BRP dealership |
| 11 | 605352707 | Support, air intake silencer |
| 12 | 518323105 | PLATE, BLACK - Call your local BRP dealership |
| 13 | 36108 | Rivet |
| 14 | 417300213 | BELT GUARD - Call your local BRP dealership |
| 15 | 605453799 | Bracket |
| 16 | 417222742 | FIXED FLANGE ASS'Y - Call your local BRP dealership |
| 18 | 417222758 | Bushing Outer Half |
| 19 | 413703100 | Loctite 609 10cc |
| 20 | 293370037 | Circlip |
| 22 | 417222633 | Flanged bushing |
| 23 | 417222947 | Roller This part replaces 417003900. |
| 24 | 417004302 | Thrust washer |
| 25 | 417222595 | Pin |
| 26 | 250400060 | Cotter Pin This part replaces 732958001. |
| 27 | 417223164 | Lever Axle This part replaces 417009202. |
| 28 | 417222312 | Spring seat |
| 29 | 417222164 | SPRING, WHITE/ARGENT - Call your local BRP dealership |
| 31 | 417009204 | Bushing Spring cover |
| 32 | 205084044 | Socket head screw M6 x 40 |
| 33 | 250200009 | Friction-washer |
| 34 | 417222622 | Governor cup |
| 35 | 417222676 | RAMP 427 - Call your local BRP dealership |
| 36 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 37 | 250000418 | Flanged Hex. Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 38 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 39 | 417005600 | Washer |
| 40 | 233061414 | Locking nut M6 |
| 41 | 417005700 | Spring |
| 42 | 732401030 | O-ring |
| 43 | 417223021 | Slider Shoe This part replaces 417222362. |
| 44 | 417009205 | Protector |
| 45 | 250000412 | Flanged Hex. Screw M6 X 12, Scotch Grip This part replaces 210361296. |
