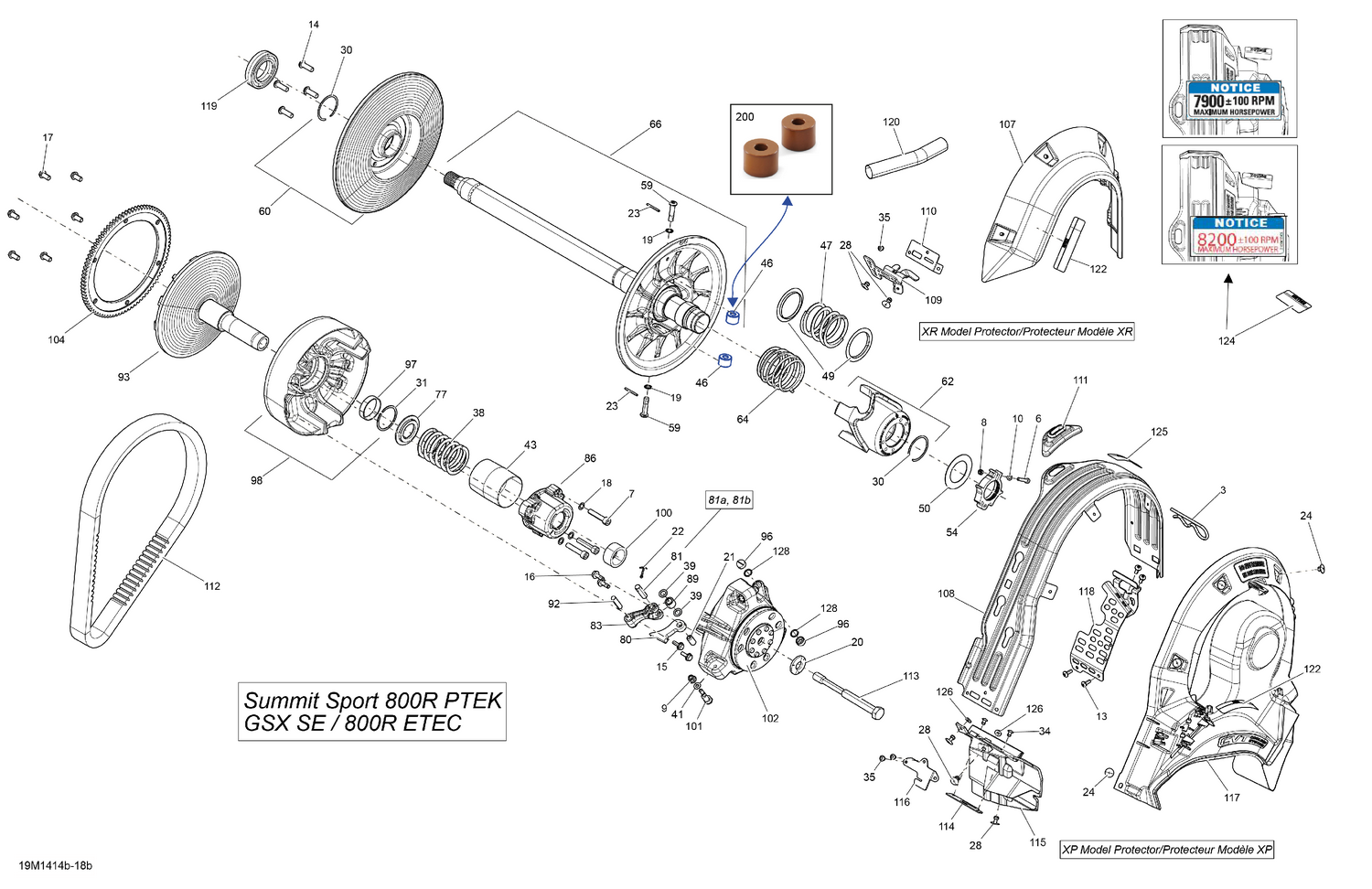

05- Pulley System 800R PTEK
Parts (73)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 114045200 | Hair Pin |
| 6 | 205052544 | Socket Screw M5 X 25 |
| 7 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 8 | 232551414 | Elastic Stop Nut M5 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 234051410 | Flat Washer M5 |
| 13 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 14 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 15 | 250000416 | Serrated Hex. Flange Bolt M6 |
| 16 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 17 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 18 | 250200009 | Lock Washer 8 mm |
| 19 | 250200009 | Lock Washer 8 mm |
| 20 | 250200144 | Conical Spring Washer M14 |
| 21 | 250400050 | Spring Pin M10 X 22 |
| 22 | 250400060 | Cotter Pin |
| 23 | 250400063 | Spring Pin M3 X 30 |
| 24 | 293150103 | Pop Rivet 3/16" |
| 28 | 293150104 | Pop Rivet 3/16" |
| 30 | 293370049 | Circlip |
| 31 | 293370071 | Circlip |
| 34 | 390909100 | Avex Rivet |
| 35 | 390909200 | Avex Rivet |
| 38 | 414762800 | Spring, Green/violet |
| 39 | 417004302 | Stopper Washer |
| 41 | 417005600 | Washer |
| 43 | 417009205 | Guard |
| 46 | 417127016 | Pulley Roller |
| 47 | 417127062 | Violet Spring |
| 49 | 417127116 | Swivel Abutment |
| 50 | 417127155 | Washer |
| 54 | 415129604 | Calibration Ass'y |
| 59 | 417127294 | Pivot Stud |
| 60 | 417127317 | Sliding Flange Ass'y |
| 62 | 417127371 | Cam Ass'y |
| 64 | XXX | Not Available As Spare Parts |
| 66 | 417127389 | Fix Flange Ass'y |
| 77 | 417222312 | Spring Seat |
| 80 | 417223098 | Ramp 441 |
| 81 | 417223177 | Dowel Pin Ass'y |
| 81a | 417222595 | Threaded Pin, M6 |
| 81b | 250000407 | SOCKET SET SCREW M6 X 12 - Call your local BRP dealership |
| 83 | 417222671 | Lever |
| 86 | 417222759 | Spring Cover Ass'y |
| 89 | 417222947 | Roller |
| 92 | 417223164 | Lever Axle |
| 93 | 417223232 | Fixed Flange Ass'y |
| 96 | 417223271 | Slider Shoe |
| 97 | 417223086 | Bushing |
| 98 | 417223444 | Sliding Flange Ass'y |
| 100 | 417223471 | Bushing |
| 101 | 417223501 | Calibration Screw |
| 102 | 417223666 | Governor Cup Ass'y |
| 104 | 417225071 | Ring Gear_Starter This part replaces 417223739. |
| 107 | XXX | Not Available As Spare Parts |
| 108 | 417300357 | Belt Guard |
| 109 | XXX | Not Available As Spare Parts |
| 110 | XXX | Not Available As Spare Parts |
| 111 | 417300381 | Guide |
| 112 | 417300571 | Drive Belt This part replaces 417300391. |
| 113 | 417300409 | TRA 7 Bolt (M14 X 153.5 mm) |
| 114 | 417300421 | Reinforcement Plate |
| 115 | 417300422 | Front Support |
| 116 | 417300423 | Front Bracket |
| 117 | 417300439 | CVT Air Duct |
| 118 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 119 | 504152574 | Ball Bearing |
| 120 | XXX | Not Available As Spare Parts |
| 122 | 516005503 | Decal English |
| 124 | 516005505 | RPM STICKER, ENGLISH - Call your local BRP dealership |
| 125 | 516005509 | Safety Belt Guard Decal |
| 126 | 517225900 | Flat Washer |
