208650841
PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership

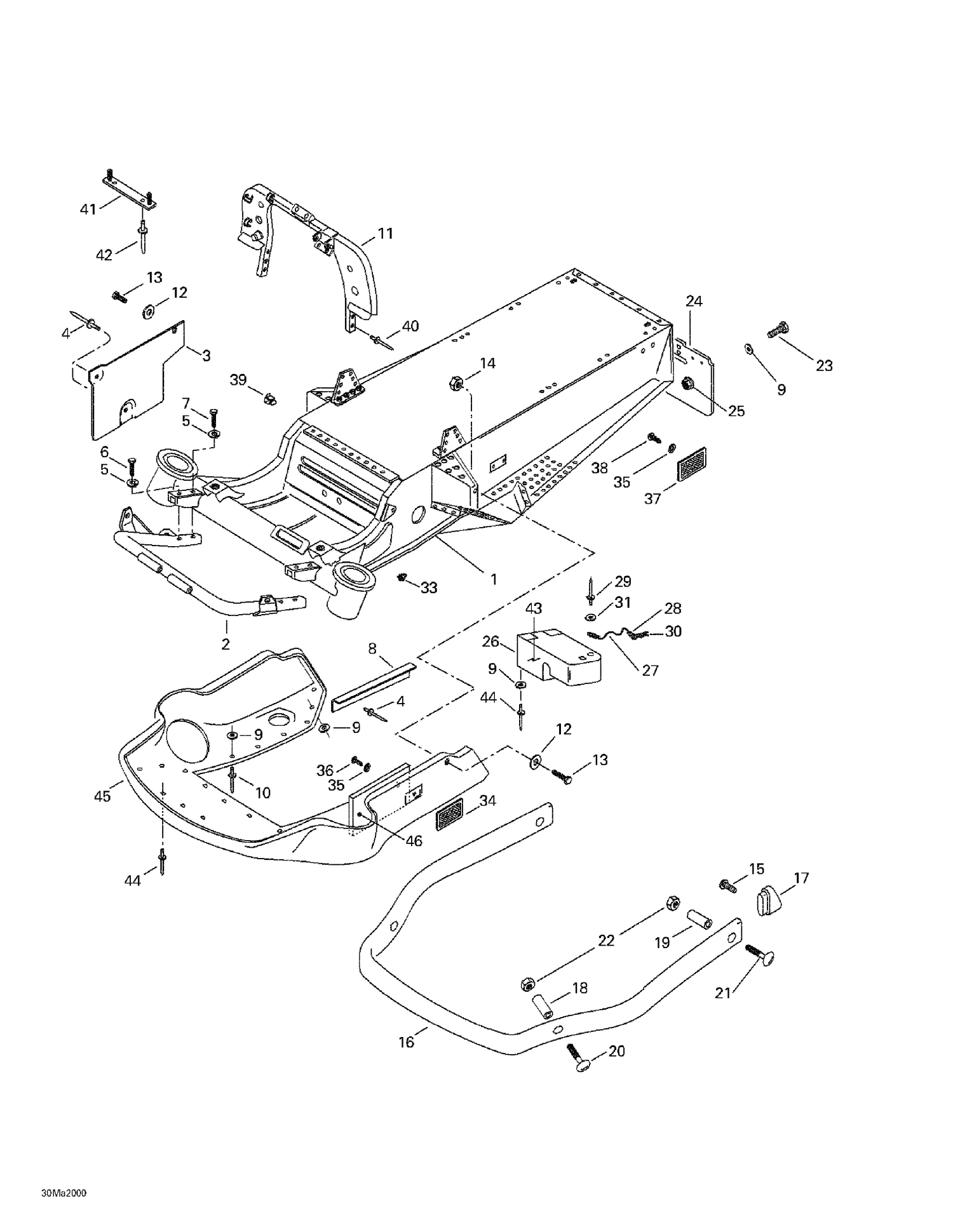

Схема сборки, где используется деталь
Used in (7 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Frame And Body 2 | Ski-Doo / 2000 / Tundra / Tundra R, 2000 / 09- Frame And Body 2 | 38 |
| SKI_DOO_EN_US | 09- Frame And Body | Ski-Doo / 2002 / Tundra / Tundra R, 2002 / 09- Frame And Body | 38 |
| SKI_DOO_EN_US | 09- Frame And Body | Ski-Doo / 2003 / Tundra / Tundra R, 2003 / 09- Frame And Body | 38 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / Tundra / Tundra R, 2004 / 09- Frame | 22 |
| SKI_DOO_EN_US | 09- Utilities | Ski-Doo / 2005 / Tundra / Tundra R, 2005 / 09- Utilities | 9 |
| SKI_DOO_EN_US | 01- Engine 1, 800R | Ski-Doo / 2007 / Summit / Summit Adrenaline 800R, 2007 000CJ7A00 000CJ7B00 000CJ | 15 |
| SKI_DOO_EN_US | 01- Engine 1 | Ski-Doo / 2007 / Summit / Summit X, 2007 000CG7A00 000CG7B00 000CG7C00 000CG7D00 | 15 |
