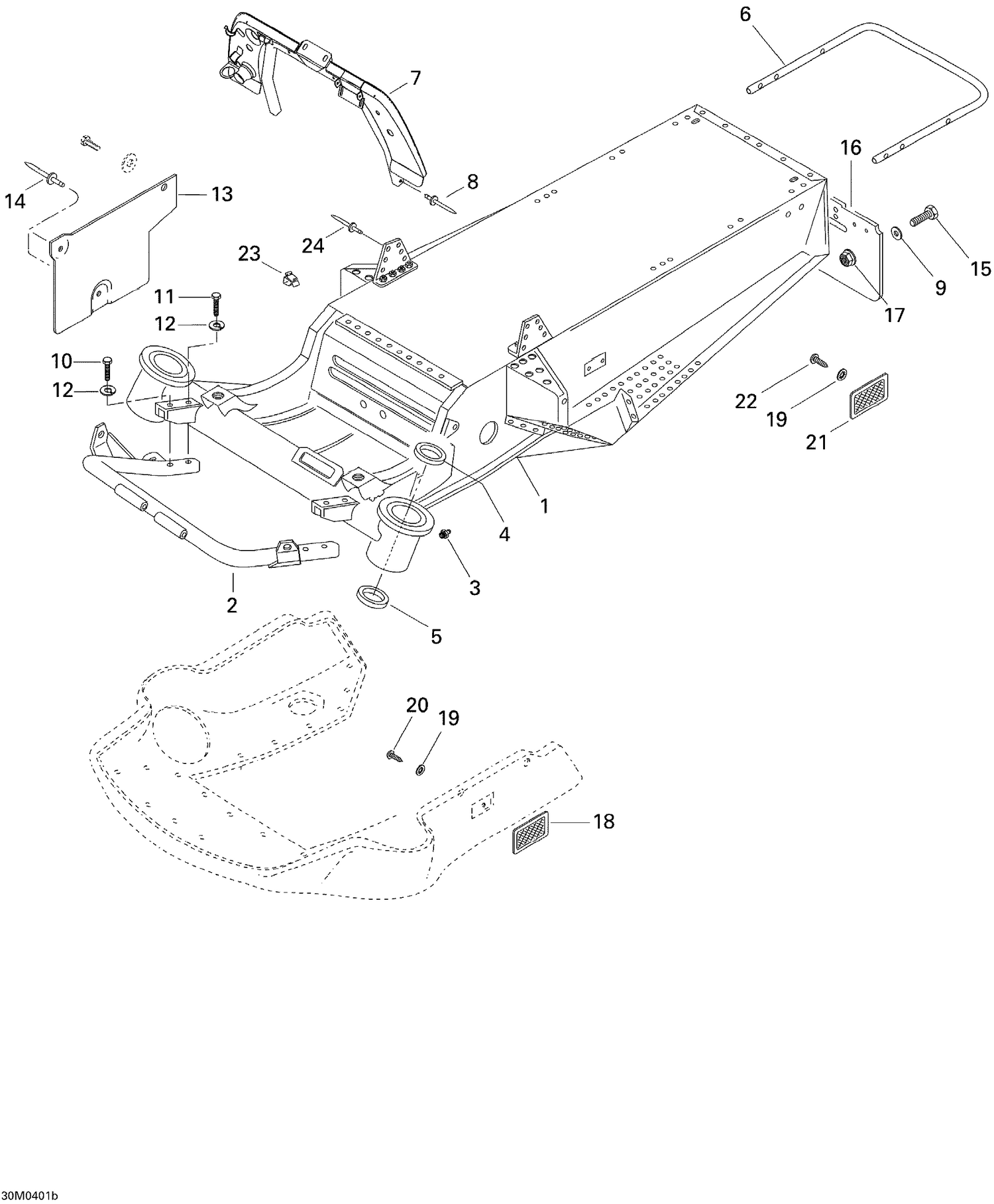

09- Frame
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518323484 | Frame |
| 2 | 518320200 | Welded Front Bumper |
| 3 | 408200700 | Grease Fitting |
| 7 | 518322990 | Paint Upper Column |
| 8 | 293150117 | Pop Rivet 1/4 |
| 9 | 517124300 | Washer |
| 10 | 207063544 | Hex. Flange Screw M6 X 35 |
| 11 | 207162544 | Hex. Screw M6 X 25 |
| 12 | 234161471 | Lock Washer M6, Black |
| 13 | 517299300 | Heat Shield |
| 14 | 293150102 | Rivet 3/16" |
| 15 | 207152044 | Hex. Screw M5 X 20 |
| 16 | 572013800 | Snow Guard |
| 17 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 18 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 19 | 234451418 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 20 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 21 | 414510100 | REFLECTOR, RED - Call your local BRP dealership |
| 22 | 208650841 | PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership |
| 23 | 414227300 | Clip |
