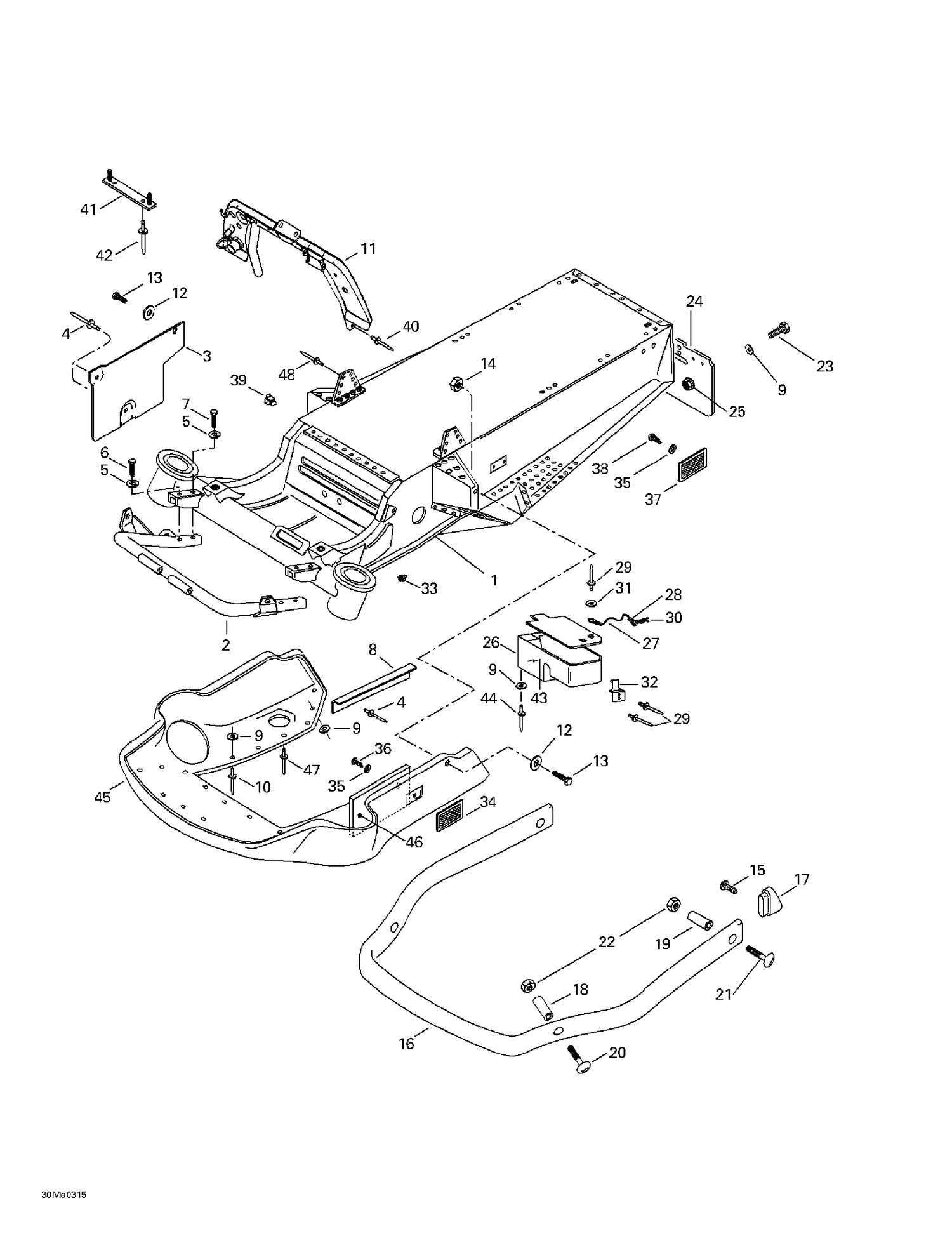

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Rivet |
| 1 |
518323484 |
Frame |
| 2 |
518320200 |
Welded Front Bumper |
| 3 |
517299300 |
Heat Shield |
| 4 |
293150102 |
Rivet 3/16" |
| 5 |
234161471 |
Lock Washer M6, Black |
| 6 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 7 |
207162544 |
Hex. Screw M6 X 25 |
| 8 |
517259200 |
Paint Reinforcement |
| 9 |
517124300 |
Washer |
| 10 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 11 |
518322990 |
Paint Upper Column |
| 12 |
224061121 |
Flat Washer |
| 13 |
207161644 |
Hex. Screw M6 X 16 |
| 14 |
232561414 |
Elastic Stop Nut M6 |
| 15 |
209640940 |
TAPPING SCREW M4.2X9.5 - Call your local BRP dealership |
| 16 |
517248810 |
Bumper |
| 17 |
572039300 |
Bumper Cap |
| 18 |
517250600 |
BUSHING - Call your local BRP dealership |
| 19 |
517250700 |
Bushing |
| 20 |
207787541 |
Carriage Bolt M8 X 75 |
| 21 |
207765544 |
Carriage Bolt M6 X 55 This part replaces 207785541. |
| 22 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 23 |
207152044 |
Hex. Screw M5 X 20 |
| 24 |
572013800 |
Snow Guard |
| 25 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 27 |
Not |
Available As Spare Part - Wire |
| 28 |
561502800 |
Terminal Ring |
| 29 |
Not |
Available As Spare Part - Rivet |
| 30 |
414575600 |
Hair Pin |
| 31 |
391301000 |
WASHER - Call your local BRP dealership |
| 32 |
517168500 |
Latch |
| 33 |
408200700 |
Grease Fitting |
| 34 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 35 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 36 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 37 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 38 |
208650841 |
PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership |
| 39 |
414227300 |
Clip |
| 40 |
293150117 |
Pop Rivet 1/4 |
| 41 |
517278800 |
Retainer Plate |
| 42 |
390402400 |
Pop Rivet 3/16" |
| 43 |
529034300 |
Tool Kit |
| 44 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 45 |
502006587 |
Bottom Pan |
| 46 |
502006541 |
Side Foam |
| 47 |
293150104 |
Pop Rivet 3/16" |
| 529000003 |
Clé |
Ouverte 15/17 mm - Appelez votre concessionnaire BRP local This part replaces 529019300. 529000003 |
| 529000003 |
FORK |
WRENCH 15/17 MM - Call your local BRP dealership This part replaces 529019300. 529000003 |
| 529014700 |
Clé |
Multiple - Appelez votre concessionnaire BRP local 529014700 |
| 529014800 |
Socket |
Wrench 21/26 mm 529014800 |
| 529014900 |
Socket |
Wrench 10/13 mm 529014900 |
| 529017300 |
Clé |
Ouverte - Appelez votre concessionnaire BRP local 529017300 |
| 529017300 |
FORK |
WRENCH - Call your local BRP dealership 529017300 |
| 529019200 |
DRIVER |
SCREW - Call your local BRP dealership 529019200 |
| 529024400 |
Adaptateur |
De Corde - Appelez votre concessionnaire BRP local 529024400 |
| 529024400 |
ROPE |
ADAPTOR - Call your local BRP dealership 529024400 |
| 529034200 |
BELT |
TOOL - Call your local BRP dealership 529034200 |
