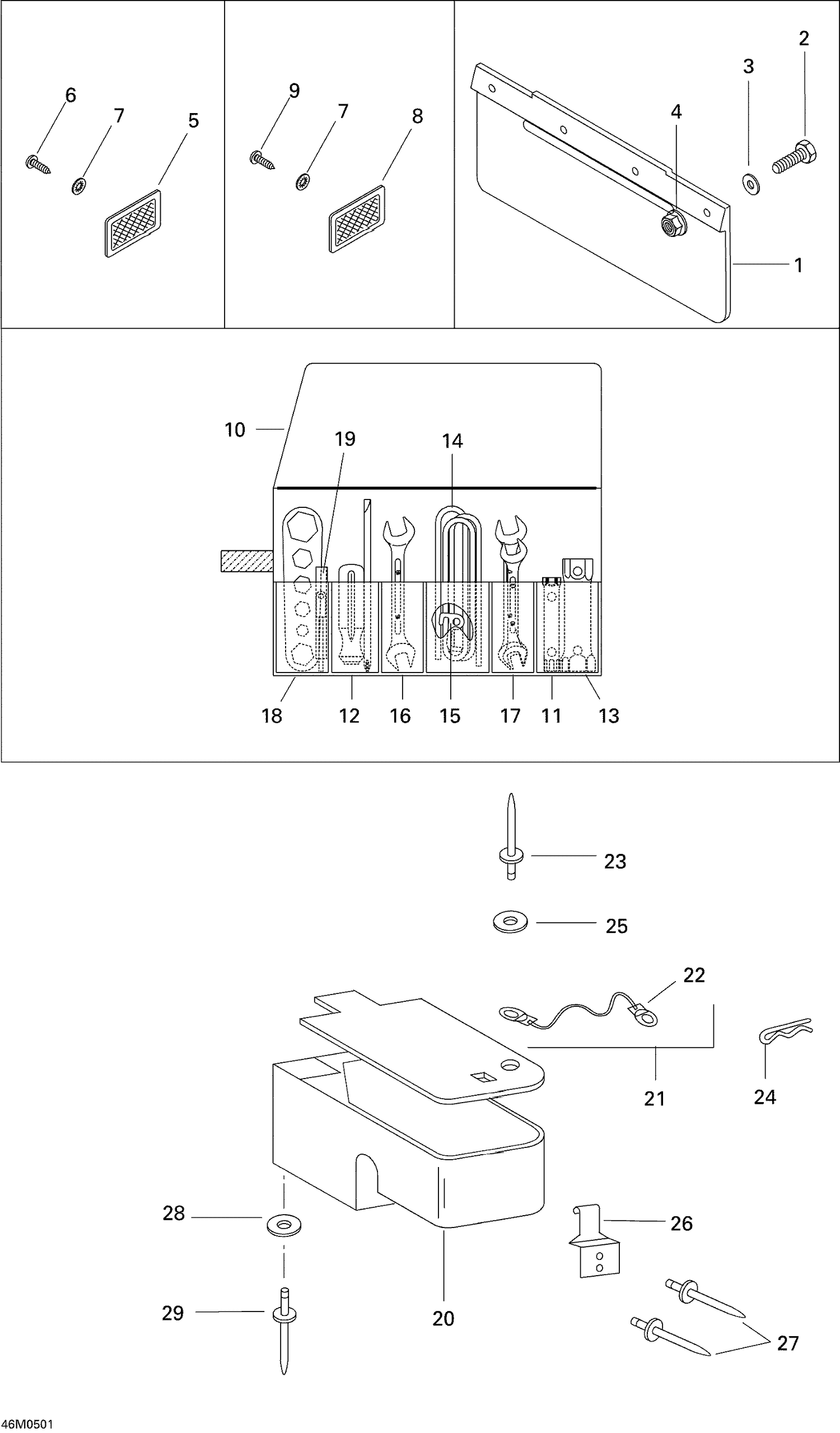

| Ref | Part Number | Description |
|---|
| 1 |
572013800 |
Snow Guard |
| 2 |
207152044 |
Hex. Screw M5 X 20 |
| 3 |
517124300 |
Washer |
| 4 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 5 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 6 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 7 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 8 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 9 |
208650841 |
PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership |
| 10 |
529034300 |
Tool Kit |
| 11 |
529014800 |
Socket Wrench 21/26 mm |
| 12 |
529019200 |
DRIVER SCREW - Call your local BRP dealership |
| 13 |
529014900 |
Socket Wrench 10/13 mm |
| 14 |
219704403 |
Was 412500100 Rope-Starter |
| 15 |
529024400 |
ROPE ADAPTOR - Call your local BRP dealership |
| 16 |
529017300 |
FORK WRENCH - Call your local BRP dealership |
| 17 |
529000003 |
FORK WRENCH 15/17 MM - Call your local BRP dealership |
| 18 |
529014700 |
MULTI-WRENCH - Call your local BRP dealership |
| 19 |
529034200 |
BELT TOOL - Call your local BRP dealership |
| 20 |
414624900 |
Tool Box |
| 21 |
Not |
Available As Spare Part - Wire Ass'y |
| 22 |
561502800 |
Terminal Ring |
| 23 |
390405100 |
Pop Rivet 5/32" |
| 24 |
414575600 |
Hair Pin |
| 25 |
391301000 |
WASHER - Call your local BRP dealership |
| 26 |
517168500 |
Latch |
| 27 |
390401700 |
Pop Rivet 5/32" |
| 28 |
517124300 |
Washer |
