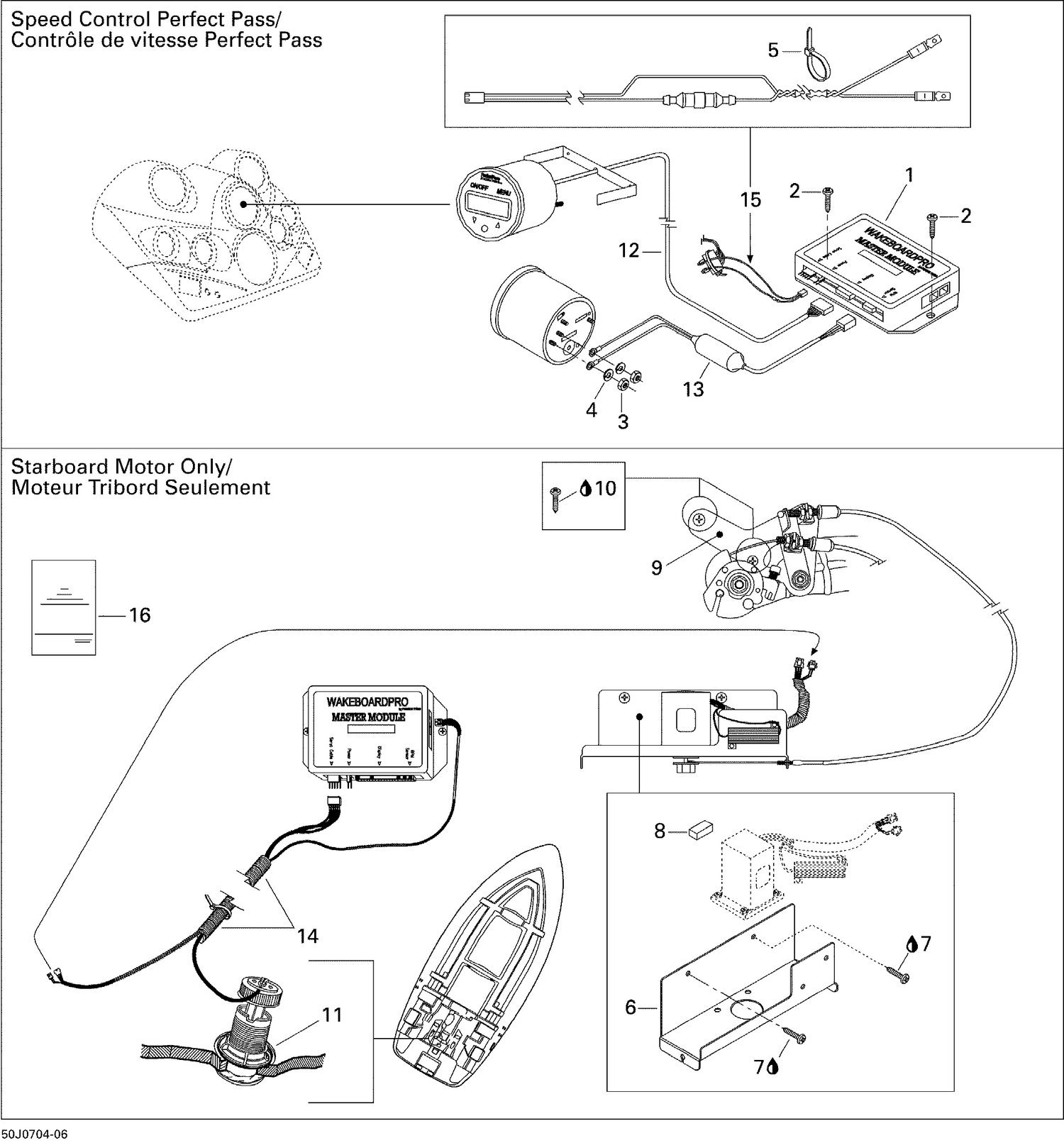

| Ref | Part Number | Description |
|---|
| 1 |
204250389 |
CRUISE CONTROL MODULE - Call your local BRP dealership |
| 2 |
204100126 |
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership |
| 3 |
212100005 |
Hex. Nut |
| 4 |
234151601 |
Helical Lock Washer M5 |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
204250355 |
SERVO/RESIST/BRACKET ASSY - Call your local BRP dealership |
| 7 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 8 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 9 |
204250357 |
BRACKET - Call your local BRP dealership |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
204250358 |
SPEED SENSOR - Call your local BRP dealership |
| 12 |
204250379 |
SPEEDOMETER GAUGE - Call your local BRP dealership |
| 13 |
204250360 |
TACHOMETER HARNESS - Call your local BRP dealership |
| 14 |
204250361 |
SPEEDOMETER HARNESS - Call your local BRP dealership |
| 15 |
204250366 |
POWER HARNESS - Call your local BRP dealership |
