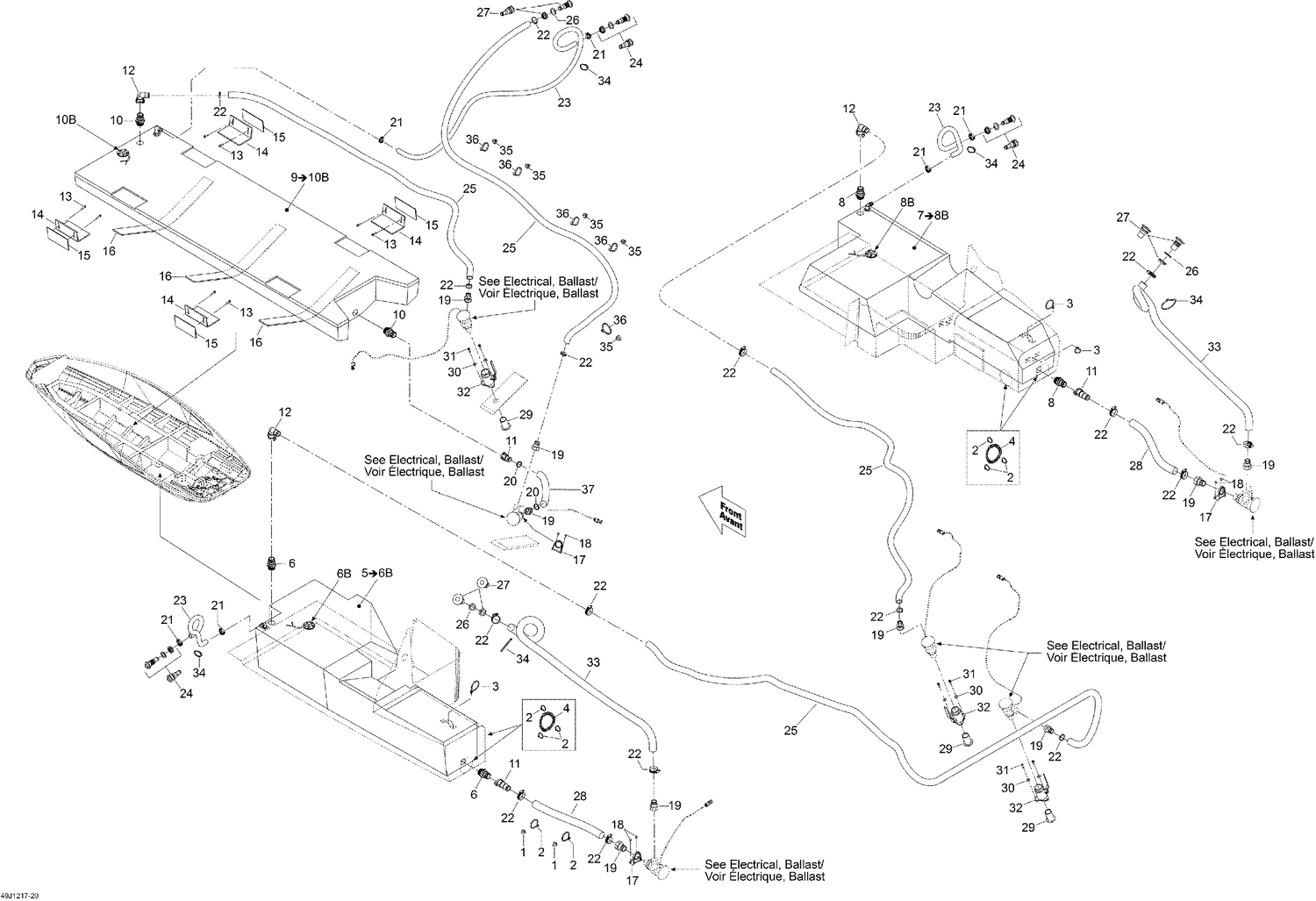

| Ref | Part Number | Description |
|---|
| 1 |
293730040 |
Mount Dart |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 3 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 4 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 6 |
204940070 |
QUICK-LOCK ADAPTER 1-1/8 - Call your local BRP dealership |
| 6B |
204061408 |
WATER SENSOR - Call your local BRP dealership |
| 8 |
204940070 |
QUICK-LOCK ADAPTER 1-1/8 - Call your local BRP dealership |
| 8B |
204061408 |
WATER SENSOR - Call your local BRP dealership |
| 10 |
204940070 |
QUICK-LOCK ADAPTER 1-1/8 - Call your local BRP dealership |
| 10B |
204061407 |
Water Sensor |
| 11 |
204940071 |
QUICK-LOCK SOCKET 1-1/8 - Call your local BRP dealership |
| 12 |
204940072 |
QUICK-LOCK SOCKET 1-1/8, 90 - Call your local BRP dealership |
| 13 |
204050138 |
SCREW-SELF DRILL(HEX WASHER HEAD) - Call your local BRP dealership |
| 14 |
204061427 |
BALLAST TANK BRACKET - Call your local BRP dealership |
| 15 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
| 16 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 17 |
204061378 |
MOUNTING PUMP BRACKET - Call your local BRP dealership |
| 18 |
204100126 |
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership |
| 19 |
204130266 |
PUMP FITTING - Call your local BRP dealership |
| 20 |
293650045 |
Tridon Gear Clamp |
| 21 |
293650016 |
Tridon Clamp |
| 22 |
293650045 |
Tridon Gear Clamp |
| 23 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 24 |
262000074 |
Thru Hull Fitting 3/4" |
| 25 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 26 |
204130423 |
THRUE HULL WITH SEAL - Call your local BRP dealership |
| 27 |
262000075 |
THRU HULL FITTING 1-1/8 - Call your local BRP dealership |
| 28 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 29 |
262000130 |
HULL INSERT (BALLAST) - Call your local BRP dealership |
| 30 |
234062600 |
Flat Washer M6, Stainless |
| 31 |
209662560 |
PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership |
| 32 |
204940073 |
SEACOCK 1 NPT - Call your local BRP dealership This part replaces 262000129. |
| 33 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 34 |
293750008 |
Tie Wrap 368 mm |
| 35 |
293730040 |
Mount Dart |
| 36 |
293750008 |
Tie Wrap 368 mm |
| 37 |
292800135 |
BILGEFLEX HOSE - Call your local BRP dealership |
