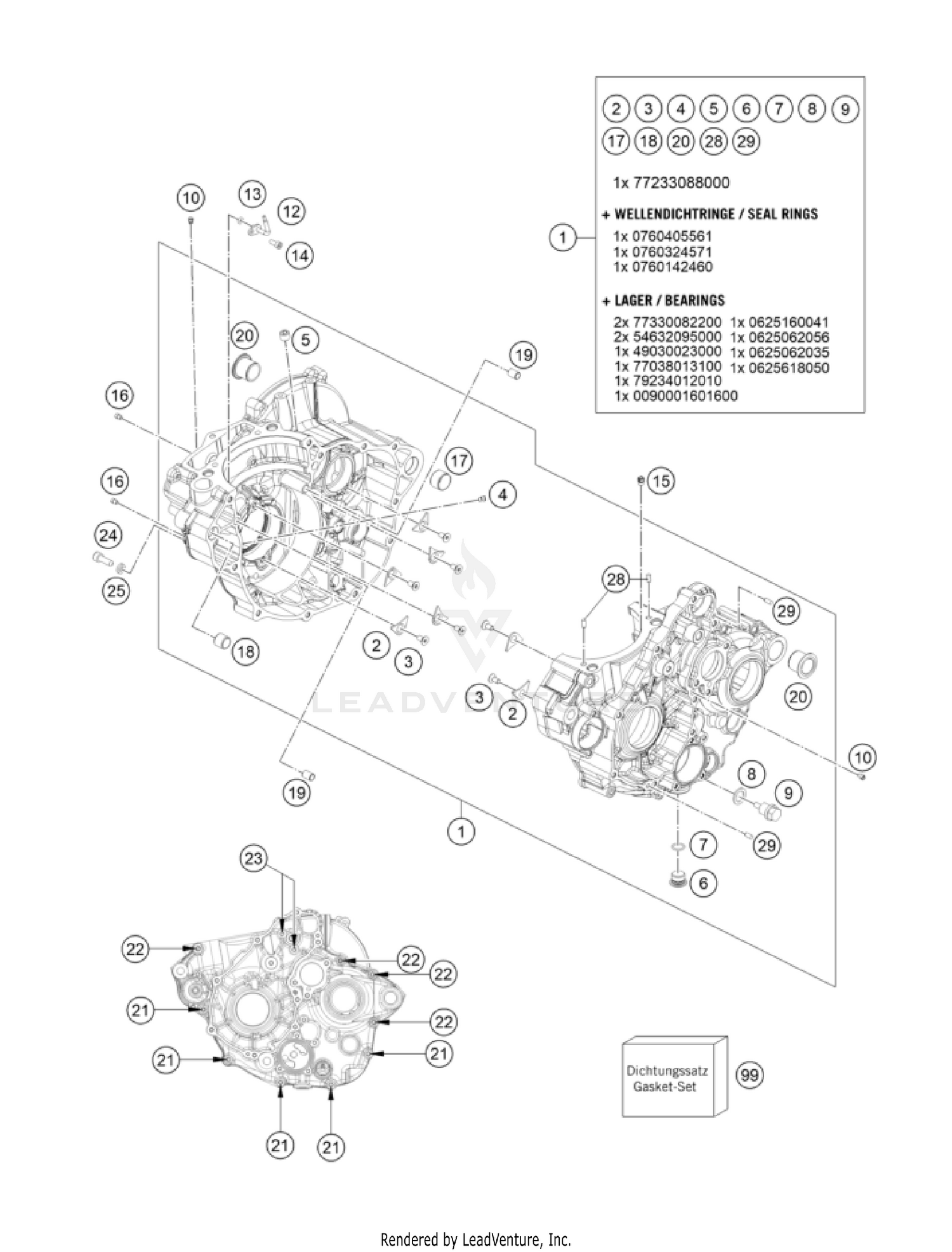

| Ref | Part Number | Description |
|---|
| 1 |
79330000144 |
Engine case cmpl. Price: $2,425.49 |
| 2 |
75030085100 |
Retaining bracket crankshaft bearing This part replaces 75030085000. Price: $1.99 |
| 3 |
0019050121S |
INT. TORX FLAT HEAD M5X12 T25 Price: $2.99 |
| 4 |
79330058040 |
Nozzle Price: $10.55 |
| 6 |
78036081100 |
Screw plug M24x1.5 This part replaces 78036081000. Price: $3.99 |
| 7 |
0770110015 |
O-RING 1,5x11 SILICON Price: $6.15 |
| 8 |
58038022000 |
CU-SEAL RING DIN7603-12X18X1,5 Price: $2.99 |
| 10 |
80030058060 |
OIL JET ''60'' M4 Price: $13.96 |
| 12 |
77830064070 |
OIL JET CURVED '' 70 '' Price: $12.86 |
| 13 |
0770035020 |
O-RING 3,5X2,00 NBR Price: $1.99 |
| 14 |
0912040103S |
Cylinder screw DIN 912-M4x10-8.8 SS Price: $1.99 |
| 16 |
59030058000 |
JET 100 BING(44-031/180) M4 Price: $4.99 |
| 17 |
59030024000 |
DOWEL 17 X 19 X 12 Price: $6.15 |
| 18 |
54630027000 |
DOWEL BUSHING 13,8X11X12 Price: $8.13 |
| 19 |
59030023100 |
Dowel, 6x8x11.5 Price: $1.99 |
| 20 |
79230010000 |
CASE BUSH Price: $13.96 |
| 21 |
0025060556 |
HH collar screw M6x55 TX30 Price: $3.99 |
| 22 |
0025060656 |
HH COLLAR SCREW M6X65 TX30 Price: $2.99 |
| 23 |
0025060706 |
HH COLLAR SCREW M6X70 TX30 Price: $3.99 |
| 24 |
58030080000 |
LOCATING SCREW M8 L=23 Price: $14.84 |
| 25 |
58030081000 |
CU-SEAL RING 8 X 14 X 3 Price: $2.99 |
| 28 |
0402050080 |
CYLINDER ROLLER ZRO 5X8 Price: $2.99 |
| 29 |
0402040980 |
NEEDLE ROL.DIN5402 NRB 4X9,8 Price: $3.99 |
