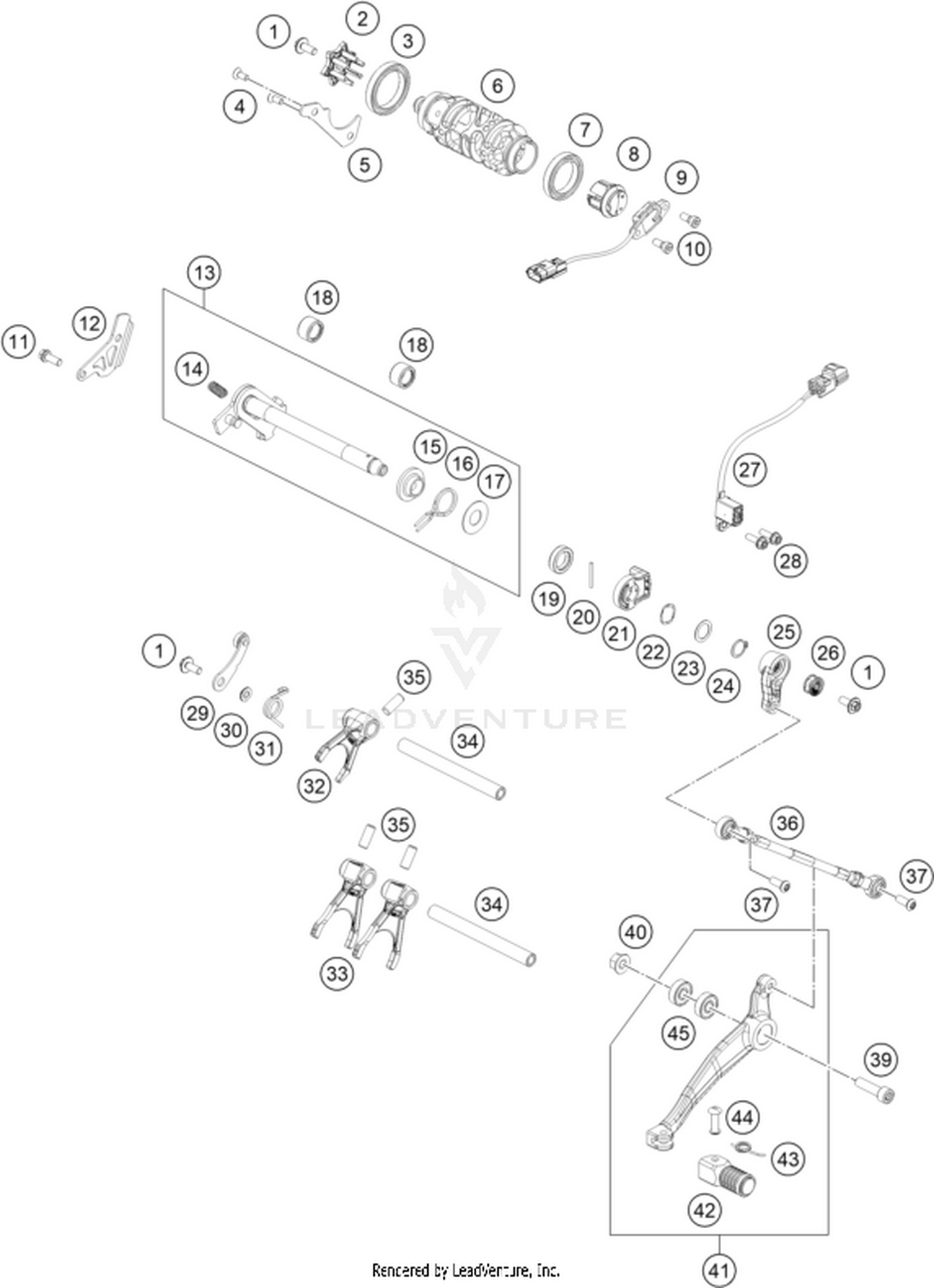

34 SHIFTING MECHANISM
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 2 | C90034015000 | Shift star Price: Call Us |
| 4 | 0019050121S | INT. TORX FLAT HEAD M5X12 T25 Price: Call Us |
| 5 | C90034011200 | Bearing retaining bracket Price: Call Us |
| 9 | C90011023100 | Gear position sensor Price: Call Us |
| 10 | 0984050123S | CYLIND. SCR. DIN6912 M5X12 8.8 Price: Call Us |
| 11 | 0025060166S | HH collar screw M6x16 TX30 SL Price: Call Us |
| 14 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 15 | 54634020000 | SPRING GUIDE Price: Call Us |
| 16 | 61234014000 | RETURNSPRING 2MM Price: Call Us |
| 17 | 54634050000 | STOP DISK 14X30X1 Price: Call Us |
| 22 | 0740001502500 | Valve spring This part replaces 63534050010. Price: Call Us |
| 23 | C0988142005 | Thrust washer DIN 988 14x20x0. Price: Call Us |
| 25 | 6413403000033 | Pull Rod Price: Call Us |
| 26 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 27 | C90034051100 | Shift assistant sensor Price: Call Us |
| 31 | C90034023000 | Detent arm spring Price: Call Us |
| 33 | 63534001100 | Shift fork Price: Call Us |
| 36 | C63534036044 | Shift rod cmpl. Price: Call Us |
| 37 | C0073800602000S | Oval head screw ISR M6x20-A2-7 Price: Call Us |
| 40 | 54310086200 | Self locking nut M8 10.9 Price: Call Us |
| 41 | C63534031044C1 | Gear shift lever preassembled Price: Call Us |
| 42 | C58334131044 | Pedal tread with pedal rubber Price: Call Us |
