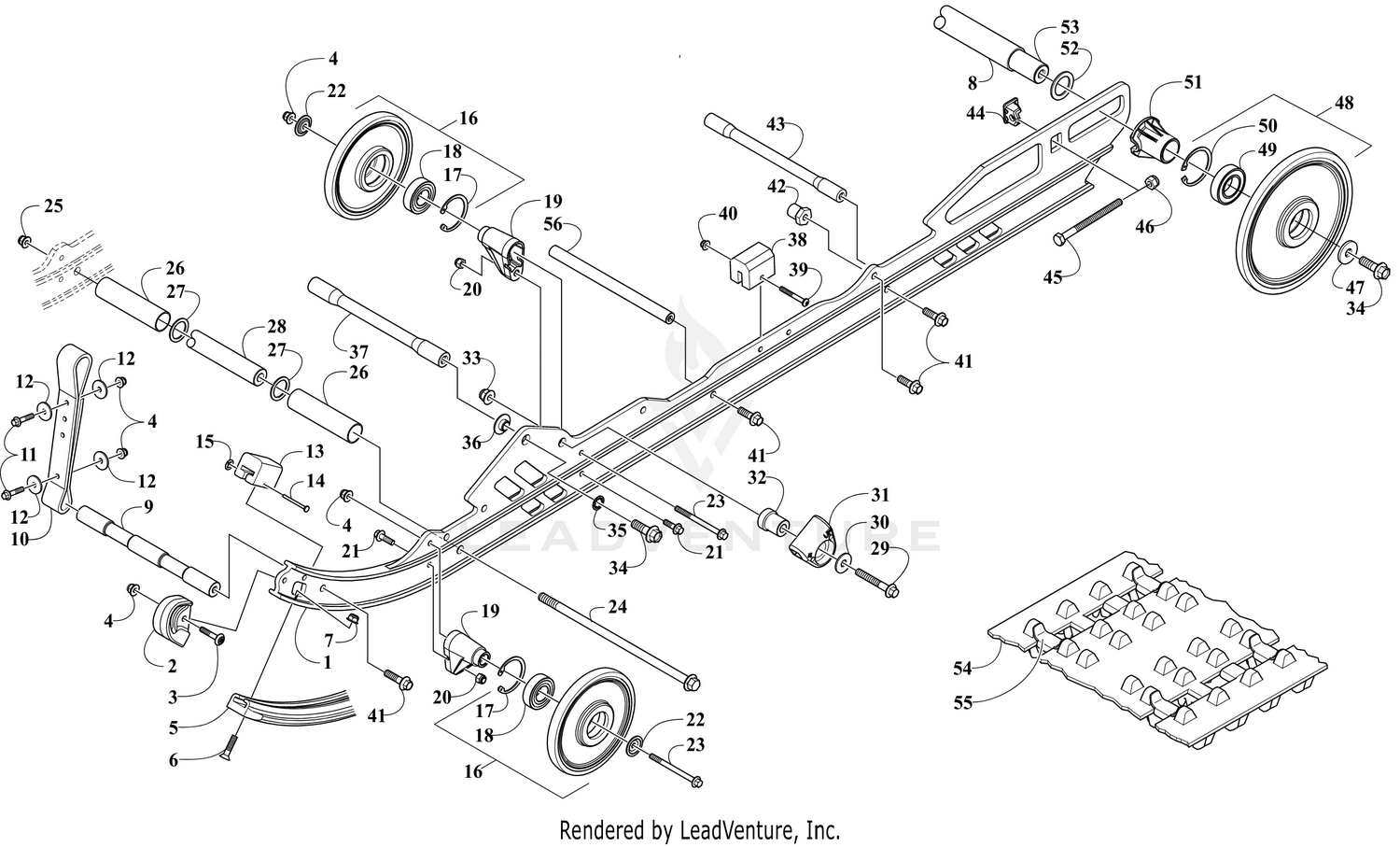

REAR SUSPENSION RAIL ASSEMBLY [110821]

Parts (53)

Ref	Part Number	Description
1	3704-937	Rail - Black Price: $256.95
2	4604-093	End Cap, Slide Rail Price: $7.08
3	8476-630	Screw, Machine Price: $1.18
4	8427-602	Nut, Hex Price: $0.23
5	2604-799	Wearstrip, Slide Rail Price: $40.95
6	0123-859	Screw, Machine Price: $1.18
7	8047-366	Nut, Lock Price: $0.46
8	4604-351	Spacer Price: $7.23
9	3604-630	Axle Price: $77.95
10	4604-453	Strap, Limiter Price: $12.07
11	8408-630	Screw, Cap Price: $1.08
12	8450-109	Washer Price: $0.70
13	0104-631	Pad, Shock Price: $7.08
14	0123-767	Rivet, Solid Price: $1.07
15	0123-766	Nut, Push Price: $1.32
17	0623-946	Ring, Retaining Price: $2.26
18	3604-033	Bearing Price: $13.95
19	4604-652	Block, Mounting - Idler Wheel Price: $4.39
20	8422-602	Nut Price: $0.48
21	8413-620	Screw, Cap Price: $1.08
22	2623-025	Washer Price: $1.45
23	8413-675	Screw, Cap Price: $3.38
24	1423-431	Screw, Cap Price: $7.23
25	8427-002	Nut, Lock Price: $1.08
26	3604-083	Spacer Price: $13.28
27	0623-912	Washer Price: $1.07
28	3604-269	Axle Price: $64.95
29	8408-855	Screw, Cap Price: $2.05
30	8450-133	Washer Price: $0.35
31	2604-515	Slide, Spring Price: $7.23
32	3604-204	Block, Slide Price: $15.71
33	8427-802	Nut, Lock Price: $0.58
34	8413-031	Screw, Cap Price: $2.91
35	1623-992	Washer, Internal Tooth Lock Price: $0.35
36	3604-266	Insert, Rail Price: $3.51
37	3604-853	Axle Price: $30.95
38	1604-429	Pad, Shock Price: $7.23
39	8470-540	Screw, Machine Price: $1.45
40	8427-502	Nut, Lock Price: $1.07
41	8408-826	Screw, Cap Price: $0.46
42	3604-635	Bushing, Stop Price: $5.94
43	3604-857	Axle Price: $40.95
44	3604-647	Adjuster, Track Price: $3.80
45	1623-682	Screw, Cap Price: $2.99
46	8422-802	Nut, Lock Price: $0.46
47	1623-931	Washer Price: $1.70
49	4604-352	Bearing Price: $12.07
50	4604-353	Ring, Retaining Price: $1.32
51	4604-349	Bushing, Adjuster Price: $2.99
52	0648-834	Washer, Shim (.079 in.) Price: $2.05
53	4604-350	Axle, Rear Wheel Price: $48.95
55	2602-383	Clip, Guide Price: $4.48
55	2602-384	Clip, Wear Price: $3.75
