8413-620
Screw, Cap Price: $1.08

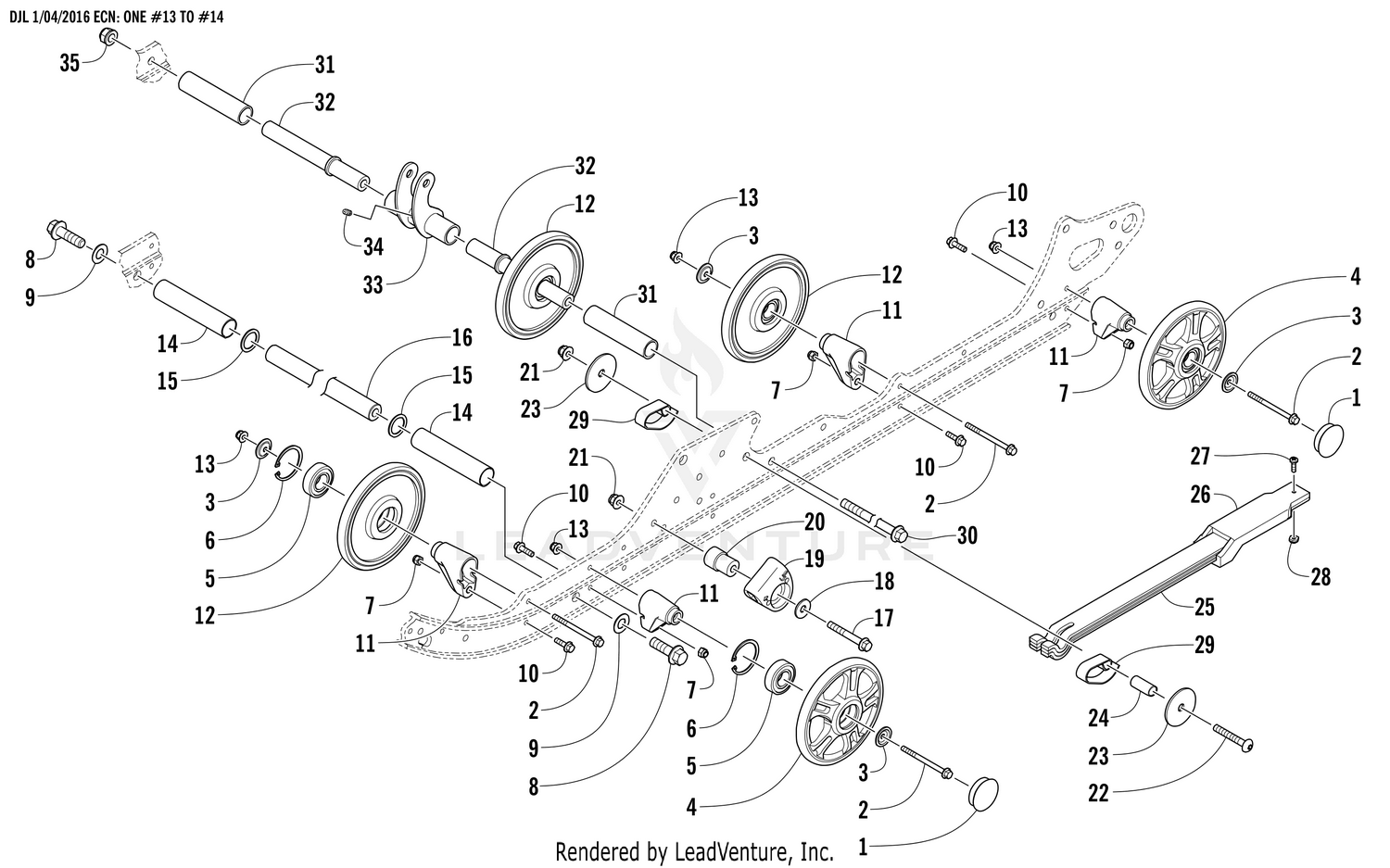

Схема сборки, где используется деталь
Used in (11 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | IDLER WHEEL ASSEMBLY [103282] | Arctic Cat / SNOWMOBILE / 2016 / 2016 BEARCAT 7000 XT BLUE INTERNATIONAL [S2016B | 10 |
| ARC | IDLER WHEEL ASSEMBLY [102747] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 6000 ES 153 GREEN INTERNATIONAL [S2016M6 | 6 |
| ARC | IDLER WHEEL ASSEMBLY [103355] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 9000 SNO PRO LTD 162 GREEN [S2016M9NLEUS | 6 |
| ARC | IDLER WHEEL ASSEMBLY [106152] | Arctic Cat / SNOWMOBILE / 2019 / 2019 BEARCAT 7000 XT GRAY INTERNATIONAL [S2019B | 10 |
| ARC | IDLER WHEEL ASSEMBLY [106262] | Arctic Cat / SNOWMOBILE / 2019 / 2019 PANTERA 7000 XT LTD BLACK INTERNATIONAL [S | 10 |
| ARC | REAR SUSPENSION RAIL ASSEMBLY [109251] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR BLUE SK [S2022JABKTUSL] / RE | 21 |
| ARC | REAR SUSPENSION RAIL ASSEMBLY [110178] | Arctic Cat / SNOWMOBILE / 2024 / 2024 BLAST 4000 LT RED [S2024JABUTUSR] / REAR S | 21 |
| ARC | REAR SUSPENSION RAIL ASSEMBLY [110173] | Arctic Cat / SNOWMOBILE / 2024 / 2024 BLAST 4000 XR ORANGE [S2024JABLOUSO] / RE | 21 |
| ARC | IDLER WHEEL ASSEMBLY [110622] | Arctic Cat / SNOWMOBILE / 2024 / 2024 ZR 600 ES 129 IFP (1.25) BLUE [S2024CODSIU | 8 |
| ARC | IDLER WHEEL ASSEMBLY [110849] | Arctic Cat / SNOWMOBILE / 2026 / 2026 PANTERA 9000 BLACK [S2026PTXLXUSB] / IDLER | 6 |
| ARC | REAR SUSPENSION RAIL ASSEMBLY [110821] | Arctic Cat / SNOWMOBILE / 2026 / 2026 RIOT 400 ORANGE [S2026JABLOUSO] / REAR SUS | 21 |
