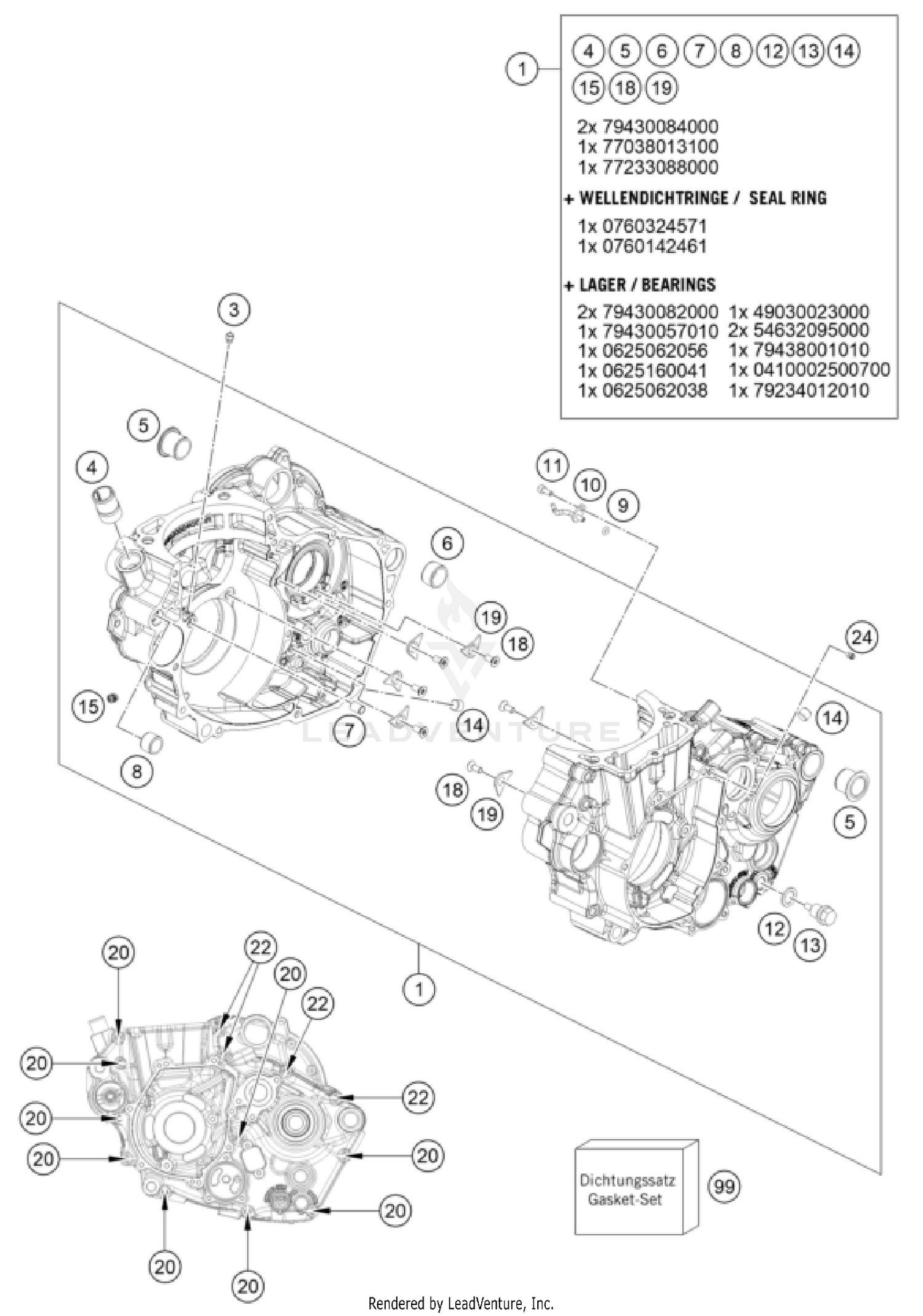

ENGINE CASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 58030010200 | SCREW IN NOZZLE M20X1,5 Price: $10.44 |
| 5 | 79230010000 | CASE BUSH Price: $13.96 |
| 6 | 54830027100 | Dowel, 21x12 Price: $6.15 |
| 7 | 59030023100 | Dowel, 6x8x11.5 Price: $1.99 |
| 8 | 54630027000 | DOWEL BUSHING 13,8X11X12 Price: $8.13 |
| 9 | 0770035020 | O-RING 3,5X2,00 NBR Price: $1.99 |
| 10 | 81230064000 | OIL JET ANGLED 70 Price: $14.29 |
| 11 | 0912040103S | Cylinder screw DIN 912-M4x10-8.8 SS Price: $1.99 |
| 12 | 58038022000 | CU-SEAL RING DIN7603-12X18X1,5 Price: $2.99 |
| 15 | 59030296000 | SCREW PLUG Price: $7.36 |
| 18 | 0019050121S | INT. TORX FLAT HEAD M5X12 T25 Price: $2.99 |
| 19 | 75030085100 | Retaining bracket crankshaft bearing Price: $1.99 |
| 20 | 0025060656 | HH COLLAR SCREW M6X65 TX30 Price: $2.99 |
| 22 | 0025060806 | HH COLLAR SCREW M6X80 TX30 Price: $2.99 |
| 24 | 59030058000 | JET 100 BING(44-031/180) M4 Price: $4.99 |
