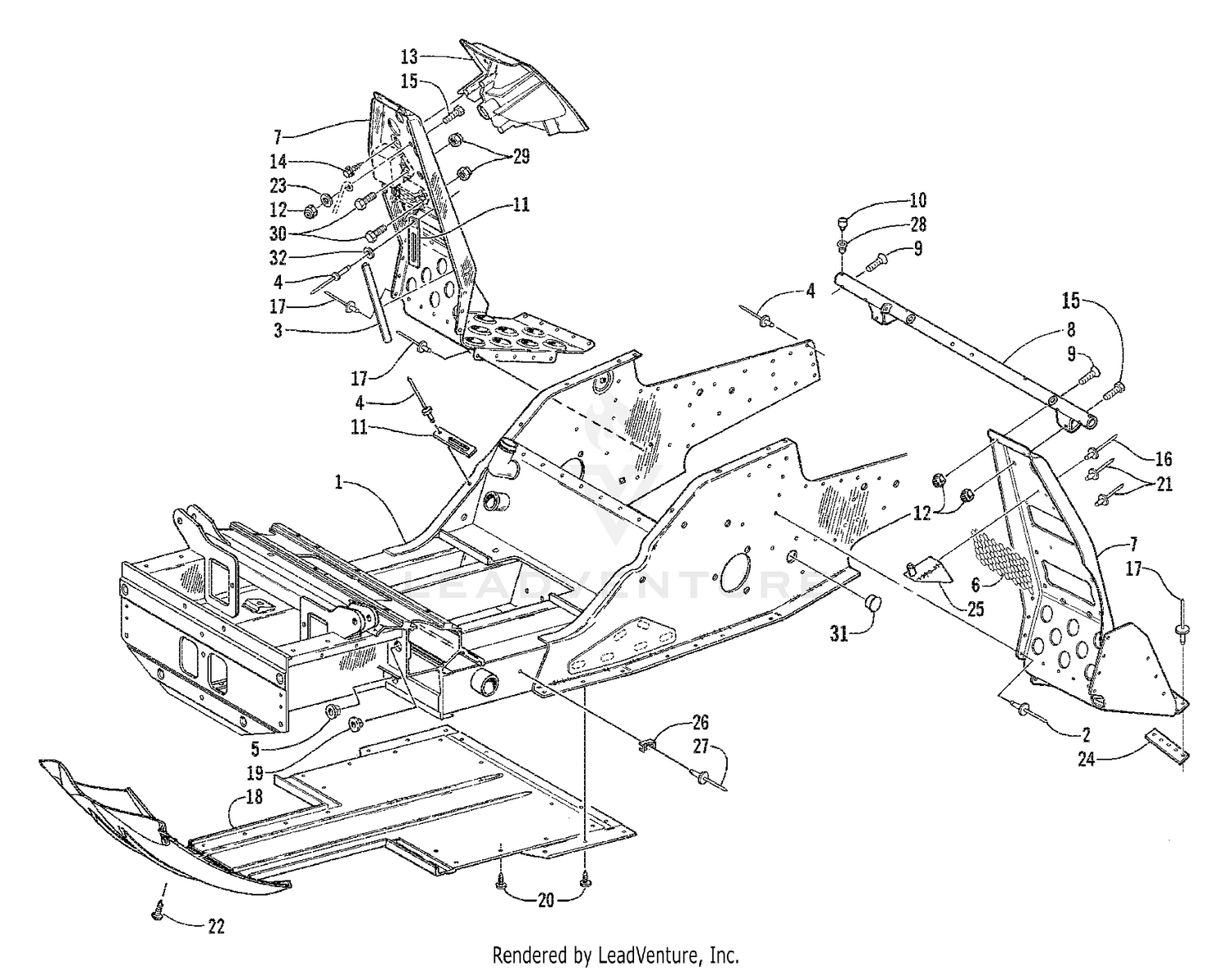

FRONT FRAME AND FOOTREST ASSEMBLY [54115]

Ref	Part Number	Description
1	0707-472	Chassis Assembly Price: $1,451.47
2	0623-341	Rivet Price: $1.45
3	0706-371	Trim Price: $23.76
4	8060-506	Rivet Price: $0.35
5	0607-420	Insert, Lower A-Arm Mount Price: $4.99
6	2706-133	SCREEN,GUARD-PTD BLK Price: $8.95
7	1606-992	Footrest - Left Price: $81.95
7	2606-166	FOOTREST, RH (UNPAINTED) Price: $67.95
8	0705-228	SUPPORT,STEERING-ASSY Price: $61.95
9	8019-614	Screw, Machine Price: $1.20
10	2606-073	Bumper, Rubber Price: $2.59
11	1623-984	Clamp, Routing Price: $7.08
12	8040-366	Nut, Lock Price: $0.35
13	1606-062	Cup, Recoil Rope Price: $18.95
14	0623-297	Screw, Self-Tapping Price: $0.84
15	8002-041	Screw, Cap Price: $4.29
16	0623-166	Rivet Price: $1.20
17	0623-282	Rivet Price: $1.08
18	1606-719	Belly Pan - Center Black Price: $166.95
19	0607-421	Insert, Upper A-Arm Mount Price: $12.95
20	0623-797	Screw, Self-Tapping Price: $0.42
21	8060-706	Rivet Price: $0.46
22	0623-784	Screw, Self-Tapping Price: $0.09
23	8050-212	Washer Price: $0.82
24	2706-110	PLATE,BACKING-FOOTREST-PTD BLK Price: $4.89
25	0705-173	Bracket, Mounting - Guard Price: $19.42
26	0623-228	Spacer Price: $0.49
27	8060-428	Rivet Price: $0.96
28	0623-874	Insert Price: $0.49
29	8041-366	Nut, Lock Price: $0.35
30	8002-040	Screw, Cap Price: $0.44
31	0623-471	Plug, Hole Price: $1.45
