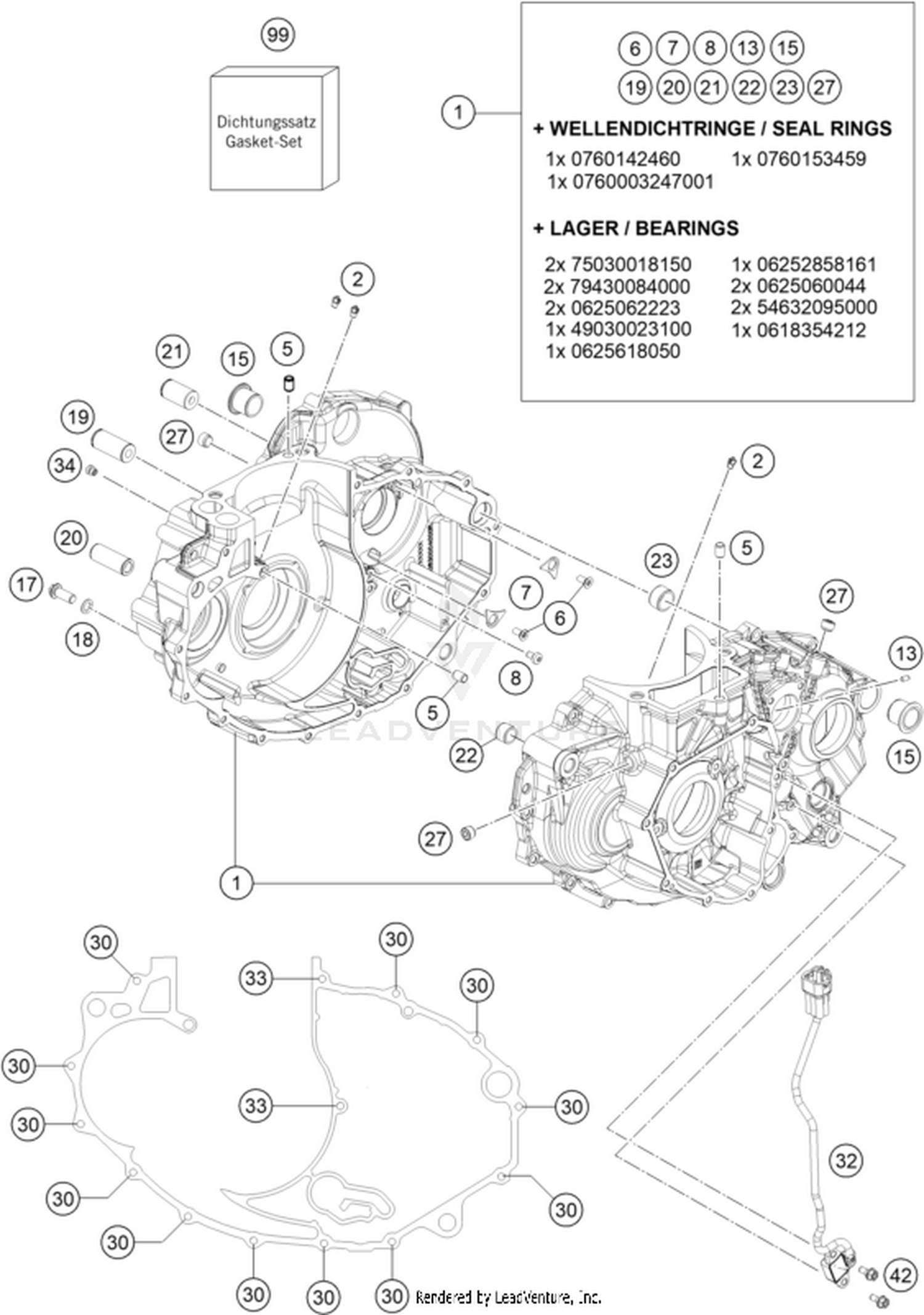

30 ENGINE CASE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A6063000004424 | Engine case cmpl. Price: Call Us |
| 5 | 59030023100 | Dowel, 6x8x11.5 Price: Call Us |
| 6 | 0019050121S | INT. TORX FLAT HEAD M5X12 T25 Price: Call Us |
| 7 | 75030085100 | Retaining bracket crankshaft b Price: Call Us |
| 8 | 0018050103S | Oval head screw DIN 7985-M5x10 Price: Call Us |
| 13 | 76638029030 | Jet screw M4x8 Price: Call Us |
| 15 | 79230010000 | Housing bush Price: Call Us |
| 17 | 0000150802000 | Screw, M8x20 SW=8 8.8 Price: Call Us |
| 18 | 0603082131 | COPPER Gask.DIN7603- 8.2X13X1 Price: Call Us |
| 19 | 54633018400 | BUSHING PIN Price: Call Us |
| 20 | 61230058050 | BEARING BOLT 15X39 08 Price: Call Us |
| 21 | 59040028000 | BUSHING PIN Price: Call Us |
| 22 | 54630027000 | DOWEL BUSHING 13,8X11X12 Price: Call Us |
| 23 | 54830027100 | Dowel, 21x12 Price: Call Us |
| 30 | 0025060306 | HH collar screw M6x30 TX30 Price: Call Us |
| 32 | A60011023000 | Gear position sensor Price: Call Us |
| 33 | 0025060806 | HH COLLAR SCREW M6X80 TX30 Price: Call Us |
| 34 | 57031523100 | MAIN JET 100 DELLORTO Price: Call Us |
| 42 | 0025050126S | Hex collar screw M5x12 ISA30 S Price: Call Us |
