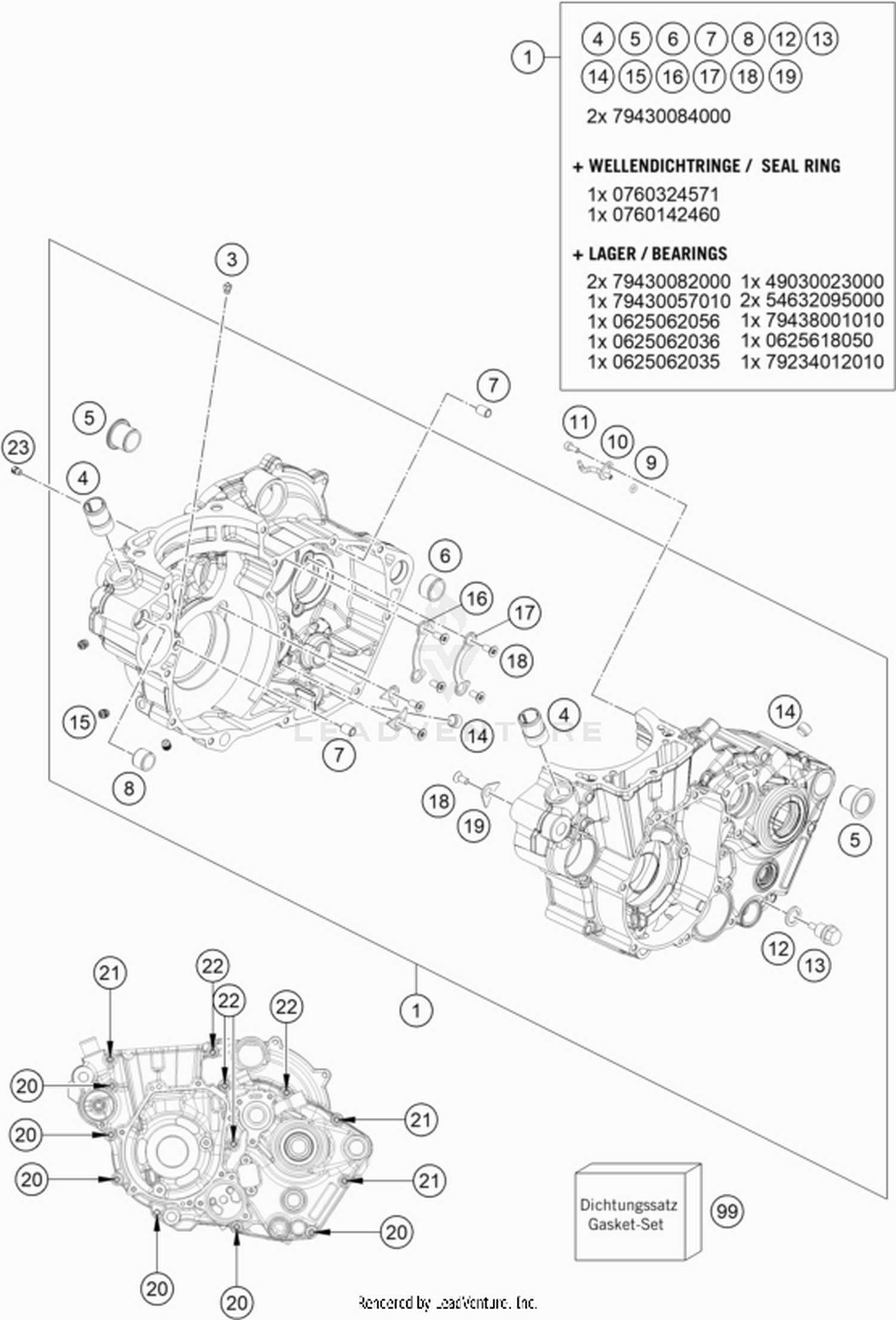

| Ref | Part Number | Description |
|---|
| 1 |
79430000344 |
Crankcase cmpl. This part replaces 79430000144. Price: Call Us |
| 4 |
58030010200 |
SCREW IN NOZZLE M20X1,5 Price: Call Us |
| 5 |
75030010100 |
CASE BUSH Price: Call Us |
| 6 |
54830027100 |
Dowel, 21x12 This part replaces 54830027000. Price: Call Us |
| 7 |
59030023100 |
Dowel, 6x8x11.5 This part replaces 59030023000. Price: Call Us |
| 8 |
51030026100 |
DOWEL 17 X 13 X 12 Price: Call Us |
| 9 |
0770035020 |
O-RING 3,5X2,00 NBR Price: Call Us |
| 10 |
81230064000 |
OIL JET ANGLED 70 Price: Call Us |
| 11 |
0912040103 |
AH.SCREW DIN0912-M 4X10 Price: Call Us |
| 12 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 15 |
59030296000 |
SCREW PLUG Price: Call Us |
| 16 |
78033032000 |
TAB WASHER BEARING MAIN SHAFT Price: Call Us |
| 17 |
78033132000 |
TAB WASHER BEARING COUNT.SHAFT Price: Call Us |
| 18 |
0019050121S |
INT. TORX FLAT HEAD M5X12 T25 Price: Call Us |
| 19 |
75030085100 |
Retaining bracket crankshaft b This part replaces 75030085000. Price: Call Us |
| 20 |
0025060606 |
HH collar screw M6x60 TX30 Price: Call Us |
| 21 |
0025060706 |
HH COLLAR SCREW M6X70 TX30 Price: Call Us |
| 22 |
0025060806 |
HH COLLAR SCREW M6X80 TX30 Price: Call Us |
