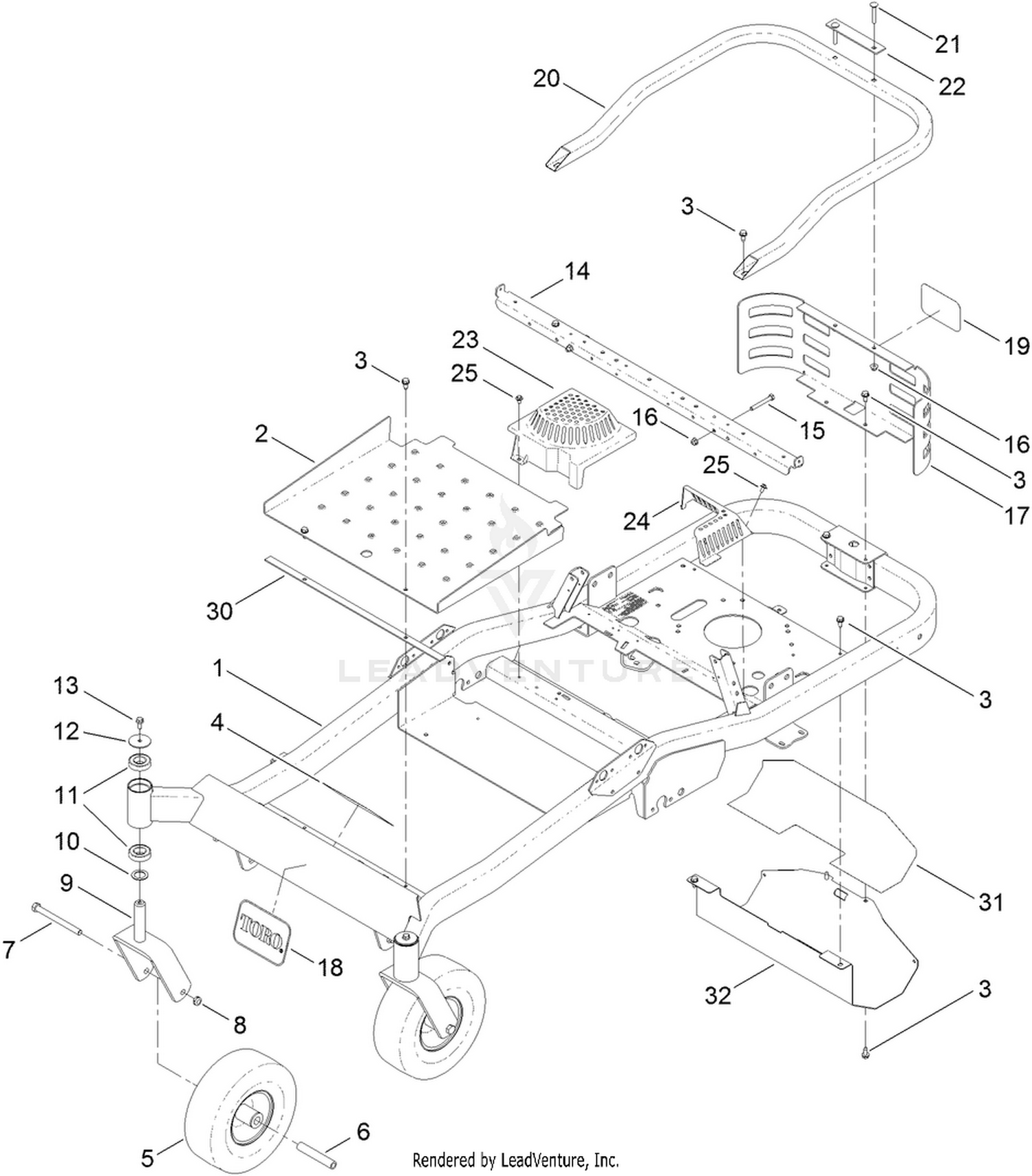

Main Frame Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-7356-01 | FRAME Price: $1,316.38 |
| 2 | 115-2531-05 | PAN-FLOOR Price: $127.09 |
| 3 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 4 | 120-5466 | DECAL-SAFETY Price: $6.92 |
| 5 | 115-2554 | TIRE AND WHEEL ASM (KENDA) Price: $122.22 |
| 6 | 104-3667 | BUSHING-SPANNER Price: $12.64 |
| 7 | 325-22 | SCREW-HH Price: $4.26 |
| 8 | 3296-45 | NUT-HEX Price: $3.79 |
| 9 | 110-6634-01 | CASTER FORK ASM Price: $62.71 |
| 10 | 10-8110 | WASHER-THRUST Price: $1.09 |
| 11 | 109-3678 | BEARING-BALL Price: $9.46 |
| 12 | 109-3724 | WASHER Price: $2.12 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 14 | 119-8997-03 | SUPPORT-SEAT Price: $33.46 |
| 15 | 32136-4 | NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 120-2248-03 | GUARD-REAR Price: $83.63 |
| 18 | 62-5550 | DECAL Price: $9.32 |
| 19 | 105-8278 | DECAL Price: $9.67 |
| 20 | 115-2565-01 | GUARD-REAR, TUBE Price: $94.02 |
| 21 | 3230-6 | BOLT-CARR Price: $0.59 |
| 22 | 115-5061-01 | PLATE-SPACER Price: $3.52 |
| 23 | 117-1241 | COVER-FAN, RH Price: $12.84 |
| 24 | 117-1242 | COVER-FAN, LH Price: $9.41 |
| 25 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 30 | 117-7238 | STRIP-VIBRATION, ANTI Price: $6.22 |
| 31 | 117-7220 | FOIL-HEAT SHIELD Price: $15.97 |
