Home / OPE / Part 117-7220

117-7220

FOIL-HEAT SHIELD Price: $15.97

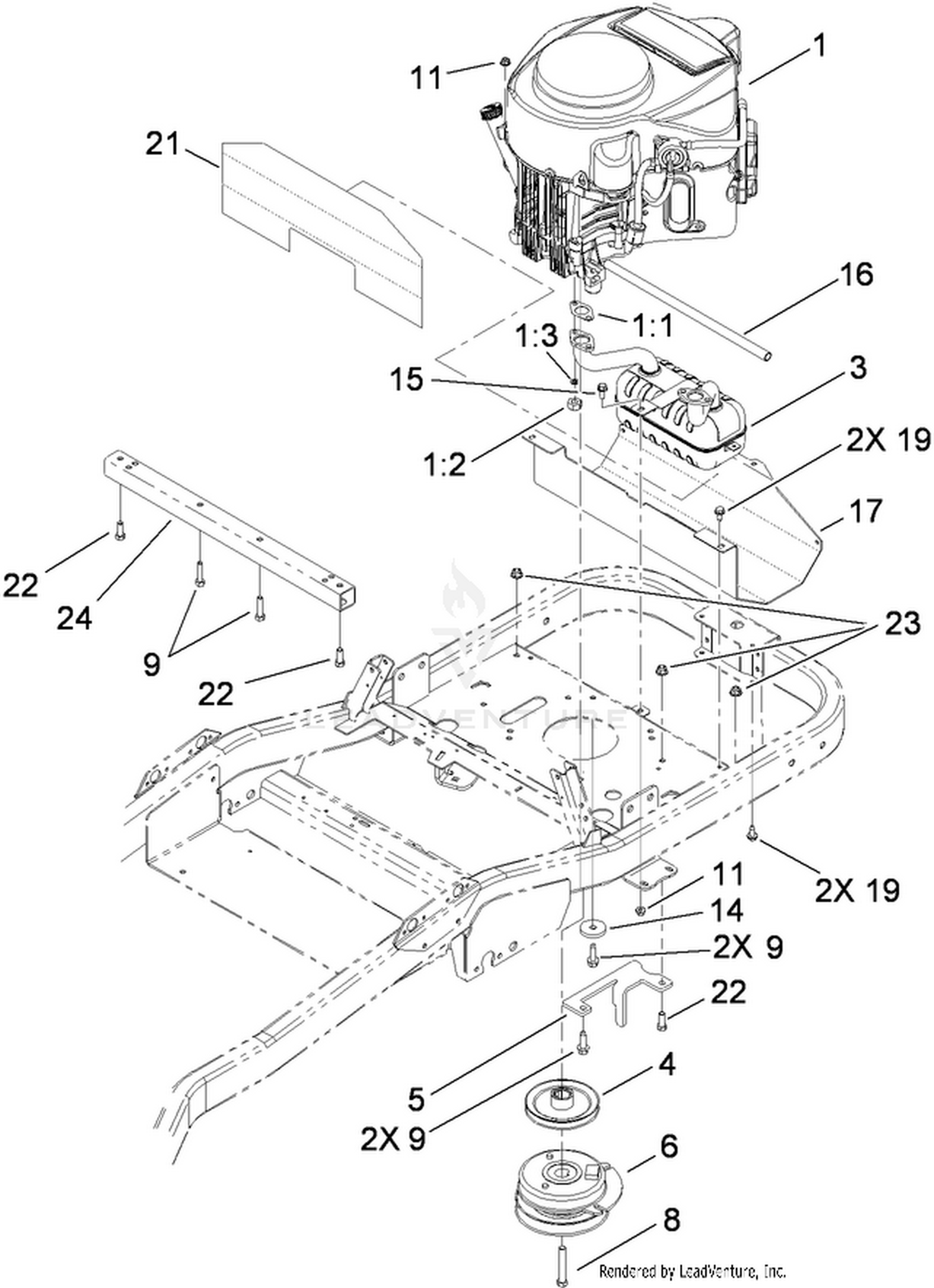

Assembly diagram
Схема сборки, где используется деталь

Used in (14 assemblies)

BrandAssemblyPathRef
TCM Engine, Clutch and Exhaust Assembly Toro Commercial Equipment / Riding Products / 2009 / 74914, TITAN ZX5400 Zero-Tu 21
TCM Engine, Clutch and Exhaust Assembly Toro Commercial Equipment / Riding Products / 2010 / 74914, TITAN ZX5400 Zero-Tu 21
TCM Main Frame Assembly Toro Commercial Equipment / Riding Products / 2011 / 74920, TITAN ZX4820 Zero-Tu 31
TCM Main Frame Assembly Toro Commercial Equipment / Riding Products / 2011 / 74924, TITAN ZX5420 Zero-Tu 31
TCM Main Frame and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2012 / 74920, TITAN ZX4820 Zero-Tu 31
TCM Main Frame and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2012 / 74924, TITAN ZX5420 Zero-Tu 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2013 / 74920, TITAN ZX4820 Zero-Tu 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2013 / 74924, TITAN ZX5420 Zero-Tu 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2015 / 74846, TITAN ZX 4800 Zero-T 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2015 / 74846, TITAN ZX 4800 Zero-T 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2015 / 74848, TITAN ZX 5400 Zero-T 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2015 / 74848, TITAN ZX 5400 Zero-T 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2016 / 74846, TITAN ZX 4800 Zero-T 31
TCM Frame, Front Axle and Caster Wheel Assembly Toro Commercial Equipment / Riding Products / 2016 / 74848, TITAN ZX 5400 Zero-T 31
