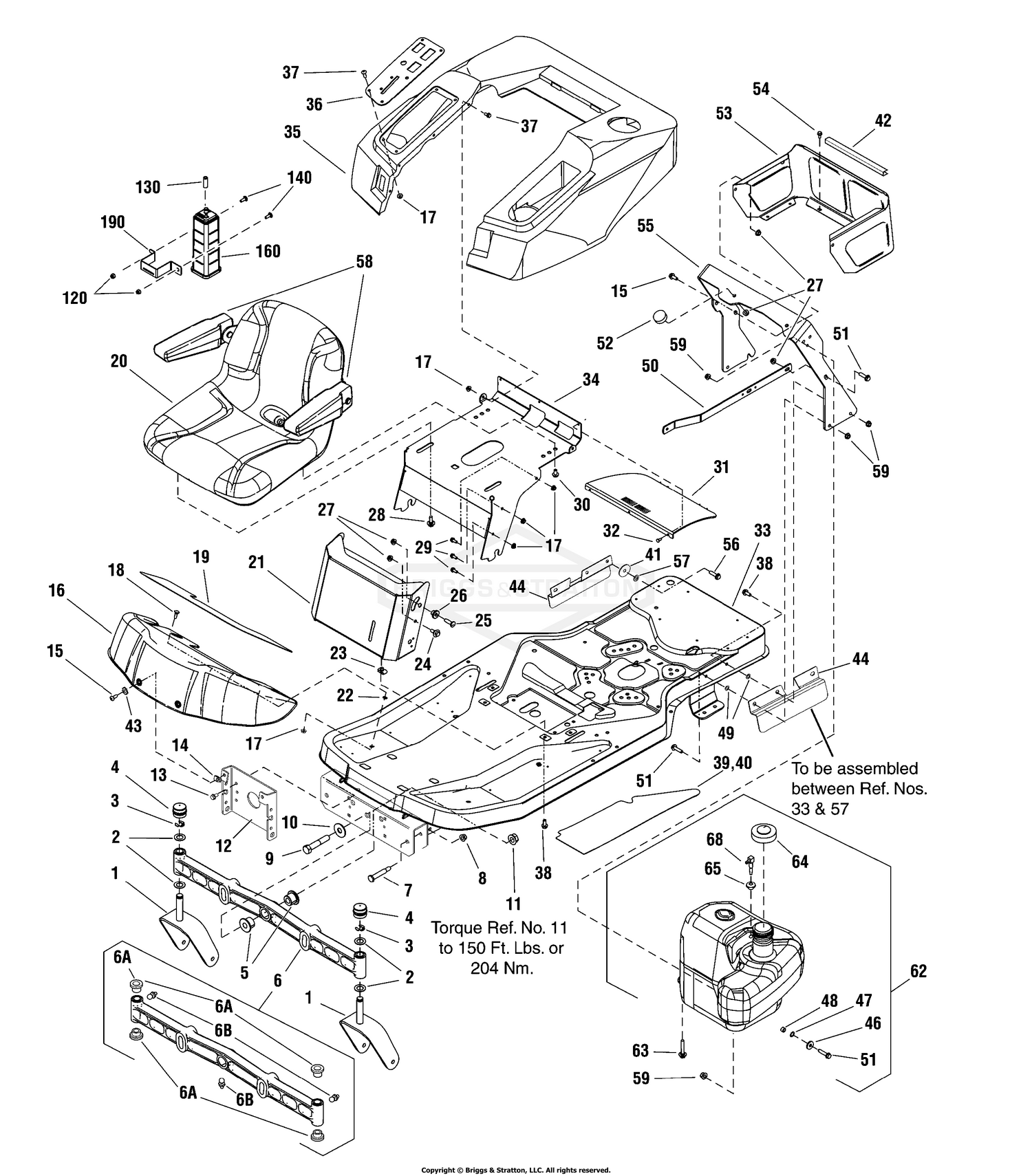

| Ref | Part Number | Description |
|---|
| 1 |
1733448BMYP |
CASTER ASSEMBLY This part replaces 1733448BM. Price: $141.76 |
| 2 |
1960160SM |
WASHER, 3/4 This part replaces 1960160. Price: $4.26 |
| 3 |
1611710SM |
RING, Klipring Extension This part replaces 1611710. Price: $3.82 |
| 4 |
1734135SM |
HUB CAP, 1.481 I.D x .62 Long This part replaces 1734135. Price: $5.36 |
| 5 |
1730186SM |
BUSHING This part replaces 1730186. Price: $6.02 |
| 6 |
1733426A |
AXLE, Front, Iron Casting, Machined ZT (incl. items 6A & 6B) Price: Call Us |
| 6A |
2176440SM |
BUSHING-0.765IDX This part replaces 2176440. Price: $4.36 |
| 6B |
703907 |
ZERK, FITTING, 1/4 This part replaces 1704314. Price: $4.64 |
| 7 |
703427 |
BOLT SHLDR 3/8-16 2 This part replaces 1733571. Price: $5.19 |
| 8 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK This part replaces 1960687. Price: $3.82 |
| 9 |
2860744SM |
CAPSCREW, Hex Head, 5/8-11 x 3 1/4 This part replaces 2860744. Price: $7.55 |
| 10 |
1960035SM |
WASHER-0.625(0.64IDX1 This part replaces 1960035. Price: $3.72 |
| 11 |
2860646SM |
NUT, Hex Flange, 5/8-11 This part replaces 2860646. Price: $9.09 |
| 12 |
1733304ASM |
BRACKET, Front Footrest Support This part replaces 1733304A. Price: $45.99 |
| 13 |
703949 |
SCREW, 5/16-18.625 This part replaces 1930601. Price: $3.40 |
| 14 |
705876 |
NUT This part replaces 1960368. Price: $3.82 |
| 15 |
5025011X8FS |
BOLT This part replaces 1921333. Price: $3.26 |
| 16 |
1726025ZSM |
PANEL-FOOTREST 18GA Z This part replaces 1726025D. Price: $148.39 |
| 17 |
5025391FS |
NUT This part replaces 1960694. Price: $3.62 |
| 18 |
1931317 |
BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5, Black Price: Call Us |
| 19 |
1726306SM |
PAD, Footrest, Front This part replaces 1726306. Price: $104.99 |
| 20 |
1726018SM |
SEAT ASSEMBLY, with Arm Rests This part replaces 1726018. Price: $691.85 |
| 21 |
7300752AYP |
PANEL, Front Manual Brake and Deck Lift This part replaces 7300752A. Price: $63.99 |
| 22 |
703826 |
BOLT, PUSHNUT 1/4 This part replaces 1960518. Price: $2.95 |
| 23 |
1935255SM |
NUT, SPEED, 5/16-18 L This part replaces 1935255. Price: $2.97 |
| 24 |
009X67MA |
BOLT, 5/16-18, .499 OD .246 LG Shoulder This part replaces 720107. Price: $4.70 |
| 25 |
703446 |
BOLT, 5/16-18X1.25 G5 This part replaces 1960223. Price: $3.61 |
| 26 |
1728086SM |
PIVOT, Hood This part replaces 1728086. Price: $5.26 |
| 28 |
1716654SM |
CARRIAGE BOLT, 5/16-18 x 3/4 This part replaces 1716654. Price: $4.70 |
| 29 |
770135 |
SCREW This part replaces 1960715. Price: $3.51 |
| 30 |
703354 |
SCREW, 5/16-18 This part replaces 1960738. Price: $4.70 |
| 31 |
7102141SM |
SCREEN, Seat Deck Top, Open Vent, Black Plastic This part replaces 7102141. Price: $36.90 |
| 32 |
1673320SM |
RIVET, Pop This part replaces 1673320. Price: $3.94 |
| 33 |
1733227ASM |
FRAME ASSEMBLY This part replaces 1733227A. Price: $759.99 |
| 33 |
1735028AYP |
WELDMENT, Frame - 33 ZT This part replaces 1735028A. Price: $874.99 |
| 34 |
1733965ASM |
SUPPORT, Seat This part replaces 1733965A. Price: $254.11 |
| 35 |
1734143SM |
SEAT DECK, Black This part replaces 1734145. Price: $467.25 |
| 36 |
1734252ASM |
PLATE - CONTROL This part replaces 1734252BM. Price: $18.59 |
| 37 |
1935450SM |
CAPSCREW-HEX WSHR HD This part replaces 1930594. Price: $3.68 |
| 37 |
770135 |
SCREW This part replaces 1960715. Price: $3.51 |
| 38 |
703410 |
BOLT,5/16-18X1 This part replaces 7091591. Price: $3.61 |
| 39 |
1728986SM |
PAD, Footrest, R.H. This part replaces 1728986. Price: $9.19 |
| 40 |
1728987SM |
PAD, Footrest, L.H. This part replaces 1728987. Price: $9.09 |
| 41 |
1960534SM |
WASHER, 3/8 This part replaces 1960534. Price: $4.10 |
| 42 |
1735680SM |
TRIM, 8" This part replaces 1735680. Price: $7.79 |
| 43 |
703138 |
WASHER This part replaces 2820426. Price: $3.50 |
| 44 |
1734392ASM |
GUARD, Debris This part replaces 1734392BM. Price: $17.59 |
| 45 |
703906 |
CAPSCREW, 5/16-18X1.5 This part replaces 1921221. Price: $4.05 |
| 46 |
703298 |
WASHER, 5/16 This part replaces 1919381. Price: $3.94 |
| 47 |
7090189 |
WASHER, 5/16" Internal/External Tooth Lock, BZ Price: Call Us |
| 48 |
7024340SM |
SPACER, .375 OD X .316 ID X .305 L This part replaces 7024340. Price: $4.19 |
| 49 |
703297 |
RETAINER, GR5, 5/16 This part replaces 1933988. Price: $3.29 |
| 50 |
1734323ASM |
STRAP, Fuel Tank Brace This part replaces 1734323BM. Price: $24.99 |
| 51 |
1921977 |
SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5, Black Price: Call Us |
| 52 |
1726390SM |
BUMPER, Rubber This part replaces 1726390. Price: $9.29 |
| 54 |
704130 |
SCREW, HEX, 1/4-20X.5 This part replaces 1925003. Price: $3.28 |
| 55 |
1733393ASM |
SUPPORT, Seat Deck This part replaces 1733393BM. Price: $269.99 |
| 56 |
5025013X10SM |
BOLT, 3/8-16 X 1-1/4" This part replaces 1920415. Price: $3.51 |
| 57 |
703986 |
RETAINER, PUSHNUT,3/8 This part replaces 1931942. Price: $3.94 |
| 58 |
1687021SM |
ARM REST KIT, (L.H. & R.H.) This part replaces 1677021SM. Price: $223.99 |
| 63 |
84007037 |
BOLT This part replaces 7091501. Price: $2.24 |
| 64 |
1734320SM |
CAP, Fuel Tank This part replaces 1734320. Price: $27.27 |
| 65 |
1726400FS |
BUSHING This part replaces 1726400. Price: $10.12 |
| 66 |
1674792SM |
ELBOW, with Screen, Gas Tank to Fuel Line This part replaces 1674792. Price: $14.39 |
| 67 |
7102956YP |
FUEL CAP, Non-Vented, 12 Tether This part replaces 7102956. Price: $29.95 |
| 68 |
7102690YP |
ASSEMBLY, Elbow/Pick-Up Tube This part replaces 7102690. Price: $12.94 |
| 69 |
799624 |
GROMMET This part replaces 209043. Price: $7.31 |
| 70 |
7104263 |
VENT, Remote w/Valve Price: Call Us |
| 120 |
703409 |
NUT, 5/16-18, GR5 This part replaces 80002728. Price: $4.92 |
| 130 |
7014361YP |
CAP, Lift Rod This part replaces 7014361. Price: $3.52 |
| 140 |
7091508 |
BOLT, Carriage, 5/16 x 3/4, G5 Price: Call Us |
| 160 |
7101425YP |
CANISTER This part replaces 7101425. Price: $40.11 |
