009X67MA
BOLT, 5/16-18, .499 OD .246 LG Shoulder This part replaces 720107. Price: $4.70

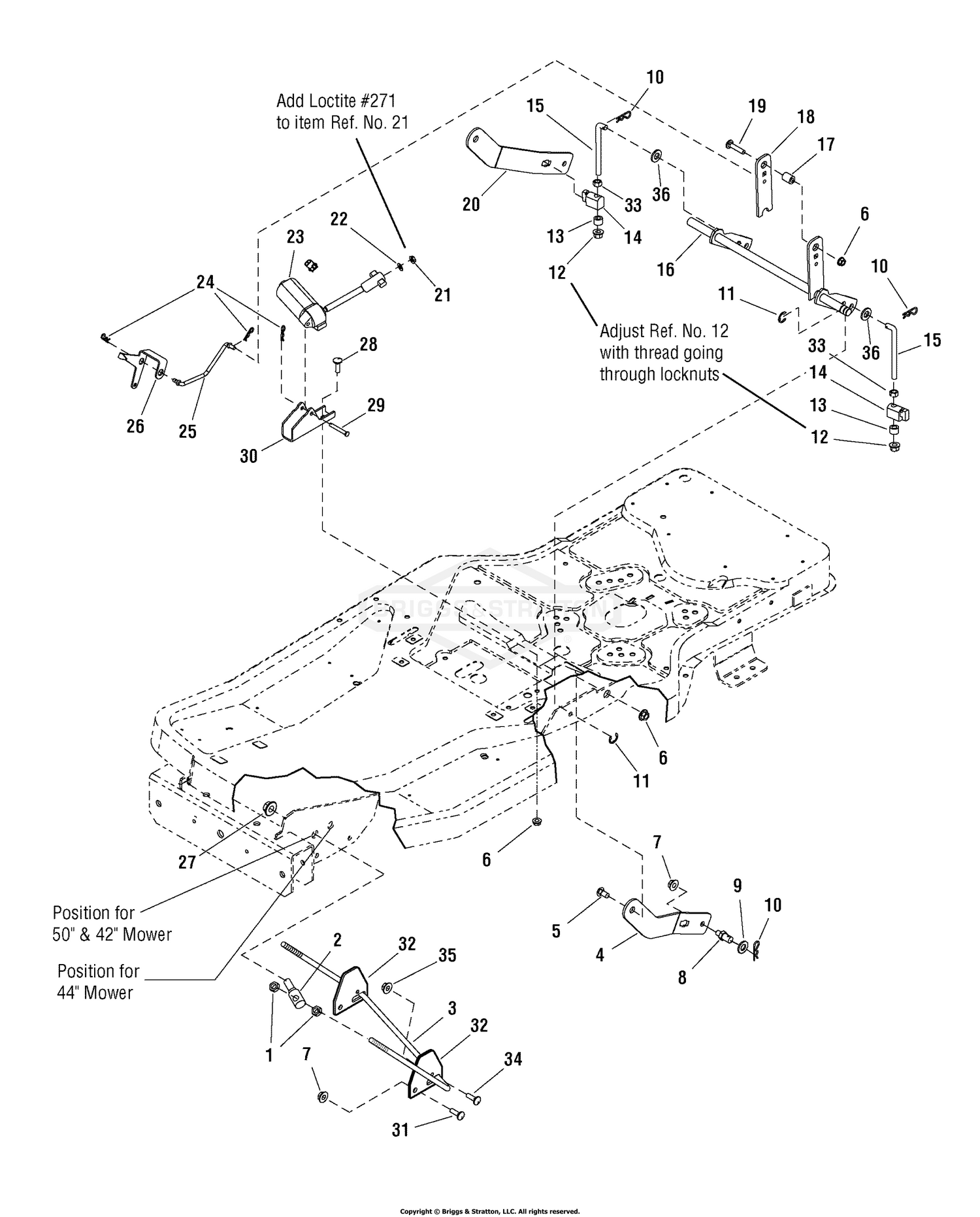

Схема сборки, где используется деталь
Used in (10 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SNP | Mower Lift Group | Snapper / Snapper / ZTR / ZTR - Twin Stick / 2690645 - ZT2042150ZBVE, 42" 20 HP | 5 |
| SNP | Frame, Body & Seat Group (7501739) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800269 - SC18533, 33" 18.5HP ZT Tw | 24 |
| SNP | Mower Lift Group (42" Deck) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800386 - SC2142, 42" 21HP ZT Twin | 5 |
| SNP | Mower Lift Group (50" Deck) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800387 - SC2650, 50" 26HP ZT Twin | 5 |
| SNP | Frame, Body & Seat Group | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800390 - SC2142, 42" 21HP ZT Twin | 24 |
| SNP | Mower Lift Group (42" Deck) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800390 - SC2142, 42" 21HP ZT Twin | 5 |
| SNP | Mower Lift Group (50" Deck) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800391 - SC2450, 50" 24HP ZT Twin | 5 |
| SNP | Frame, Body, Seat & Fuel Group - EVAP Compliant (7502281) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800620 - SC18533, 33" 18.5HP ZT Tw | 24 |
| SNP | Frame, Body & Seat Group | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800630 - SC26520, 52" 26HP ZT Twin | 25 |
| SNP | Mower Lift Group (52" Deck) | Snapper / Snapper / ZTR / ZTR - Twin Stick / 7800630 - SC26520, 52" 26HP ZT Twin | 11 |
