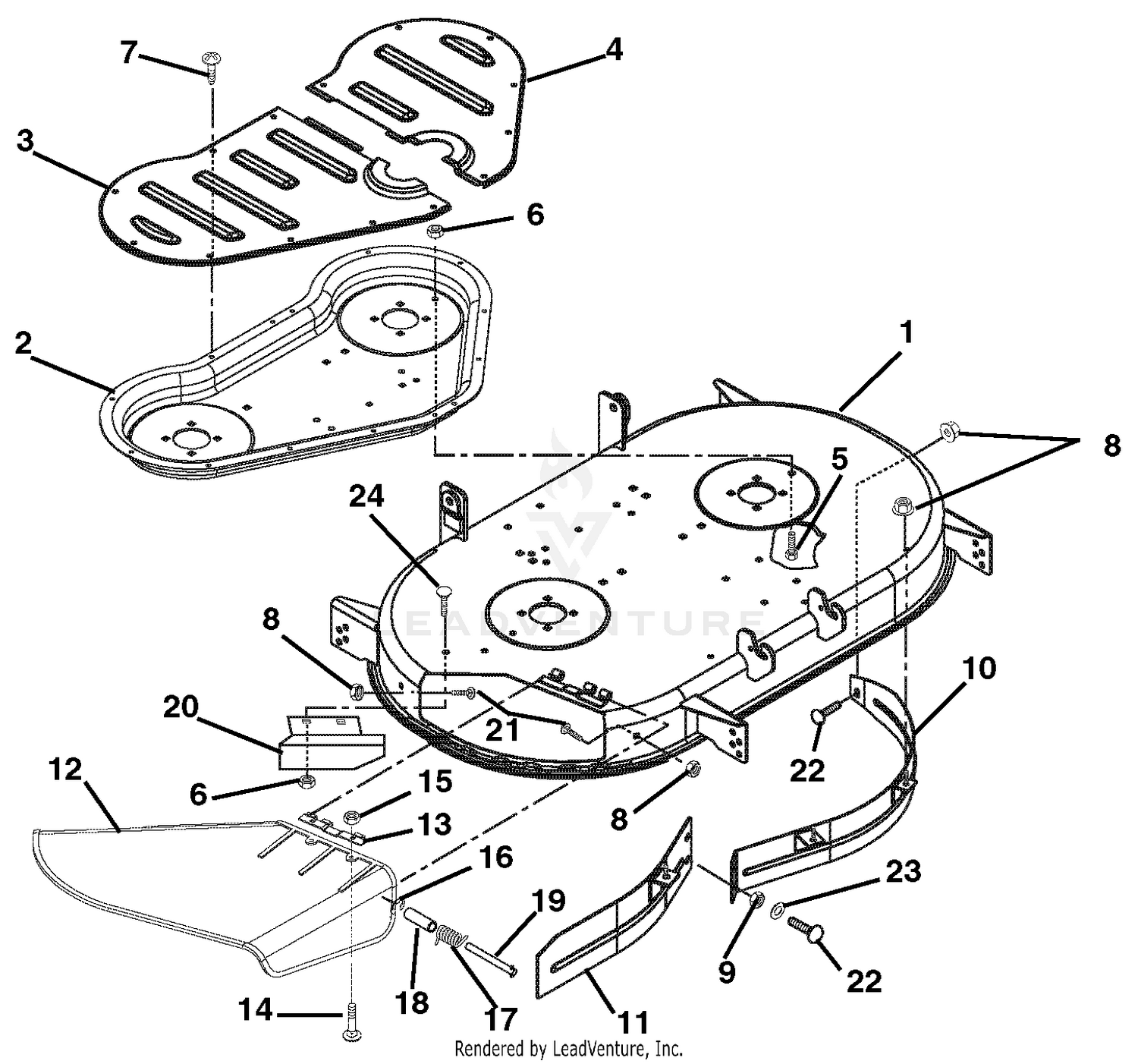

| Ref | Part Number | Description |
|---|
| 1 |
51505600 |
MWR, 42" GRAVELY ZT W/DECALS Price: $526.30 |
| 1 |
51505800 |
MWR, 42" GRAVELY ZT COMPLETE Price: Call Us |
| 2 |
01565651 |
REINFORCEMENT, DECK Price: $75.65 |
| 3 |
01585300 |
COVER, RH DECK REINFORCEMENT Price: $81.95 |
| 4 |
01585200 |
COVER, LH DECK REINFORCEMENT Price: $135.95 |
| 5 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 6 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 7 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45 |
| 8 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 9 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 10 |
01584351 |
WELDMENT, BAFFLE UPPER LH Price: $91.95 |
| 11 |
01584451 |
WELDMENT, BAFFLE UPPER RH Price: $71.45 |
| 12 |
01585500 |
DEFLECTOR, CHUTE Price: $70.95 |
| 13 |
02709551 |
HINGE PLATE Price: $24.95 |
| 14 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 06219900. Price: $0.95 |
| 15 |
06500824 |
NUT-SPNLK-FLG .25-20 ZC120 This part replaces 06530100. Price: $0.95 |
| 16 |
05706300 |
RG-RTNG-EXT .312X.025 Price: $0.45 |
| 17 |
08307200 |
SG-TORS .095X.50X 1.0 This part replaces 035996. Price: $18.95 |
| 18 |
02202900 |
BSHG-SLV .334 X .502 X 1.437 This part replaces 035997. Price: $5.45 |
| 19 |
03624200 |
PIN Price: $41.95 |
| 20 |
01582651 |
DEFLECTOR (BAFFLE) Price: $19.95 |
| 21 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 22 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 23 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
