02709551
HINGE PLATE This part replaces 02709500. Price: $24.95

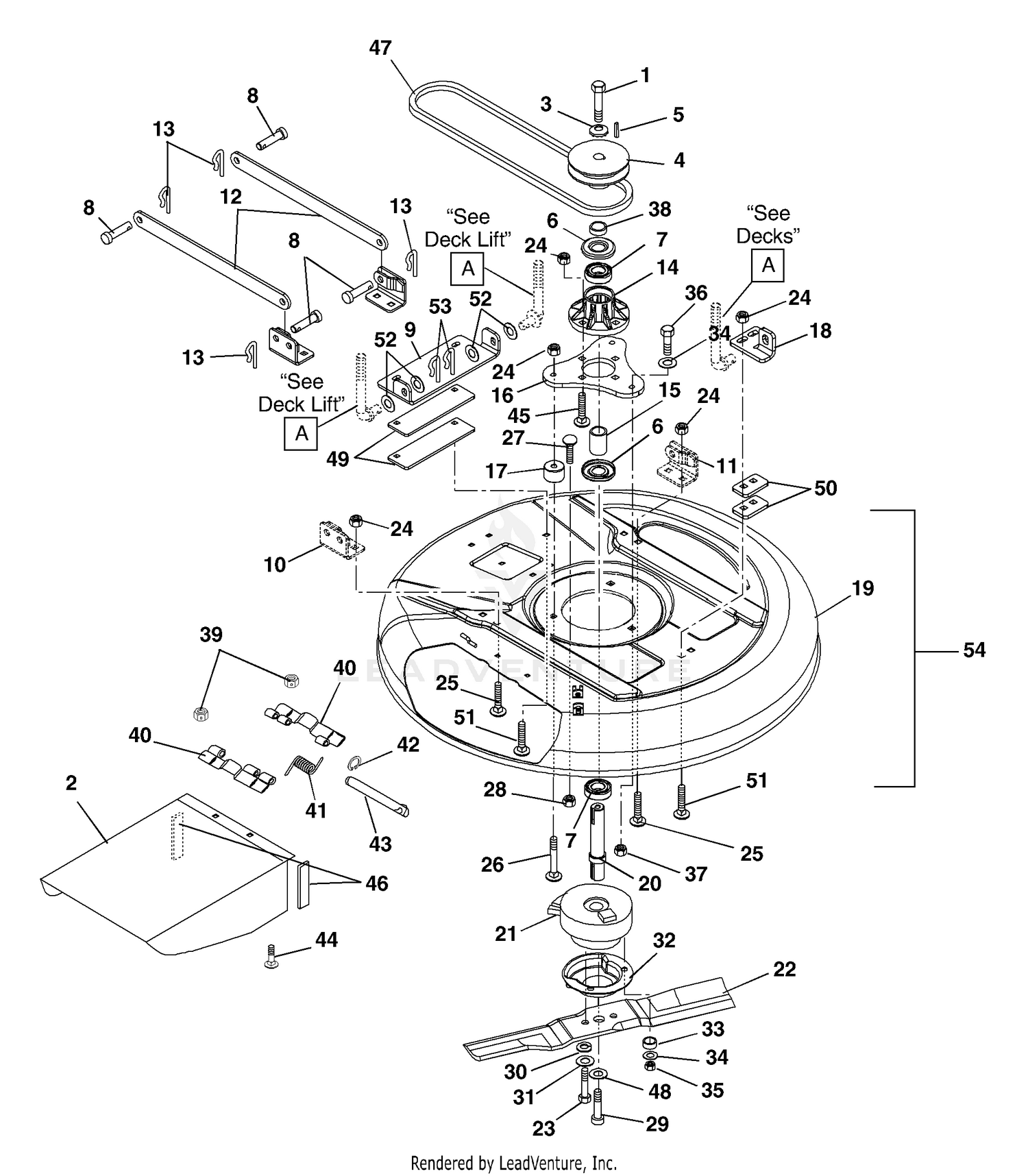

Схема сборки, где используется деталь
Used in (7 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| GRV | Deck, Idlers And Blades 32" | Gravely / Gravely Zero Turn / Sport ZT / 915030 (000101 - 009999) Sport ZT 1232, | 40 |
| GRV | 42" Mower Deck | Gravely / Gravely Zero Turn / ZT / 915024 (000101 - ) ZT 1842 / 42" Mower Deck | 13 |
| GRV | 40" Mower Deck, Belts And Blades | Gravely / Gravely Zero Turn / ZT / 915026 (000101 - ) ZT 1740 / 40" Mower Deck, | 25 |
| GRV | Baffles And Chute | Gravely / Gravely Zero Turn / ZT / 915034 (000101 - ) ZT1640, 16hp B&S, 40" Deck | 2 |
| GRV | Baffles And Chute | Gravely / Gravely Zero Turn / ZT / 915044 (000101 - 004999) ZT1740, 17hp Kohler, | 2 |
| GRV | Baffles And Chute | Gravely / Gravely Zero Turn / ZT / 915076 (035000 - ) 18hp Kohler, 40" Deck / Ba | 2 |
| GRV | Deck, Discharge Chute And Baffles | Gravely / Gravely Zero Turn / ZT / 992140 (000101 - 001999) ZT2044XL / Deck, Dis | 17 |
