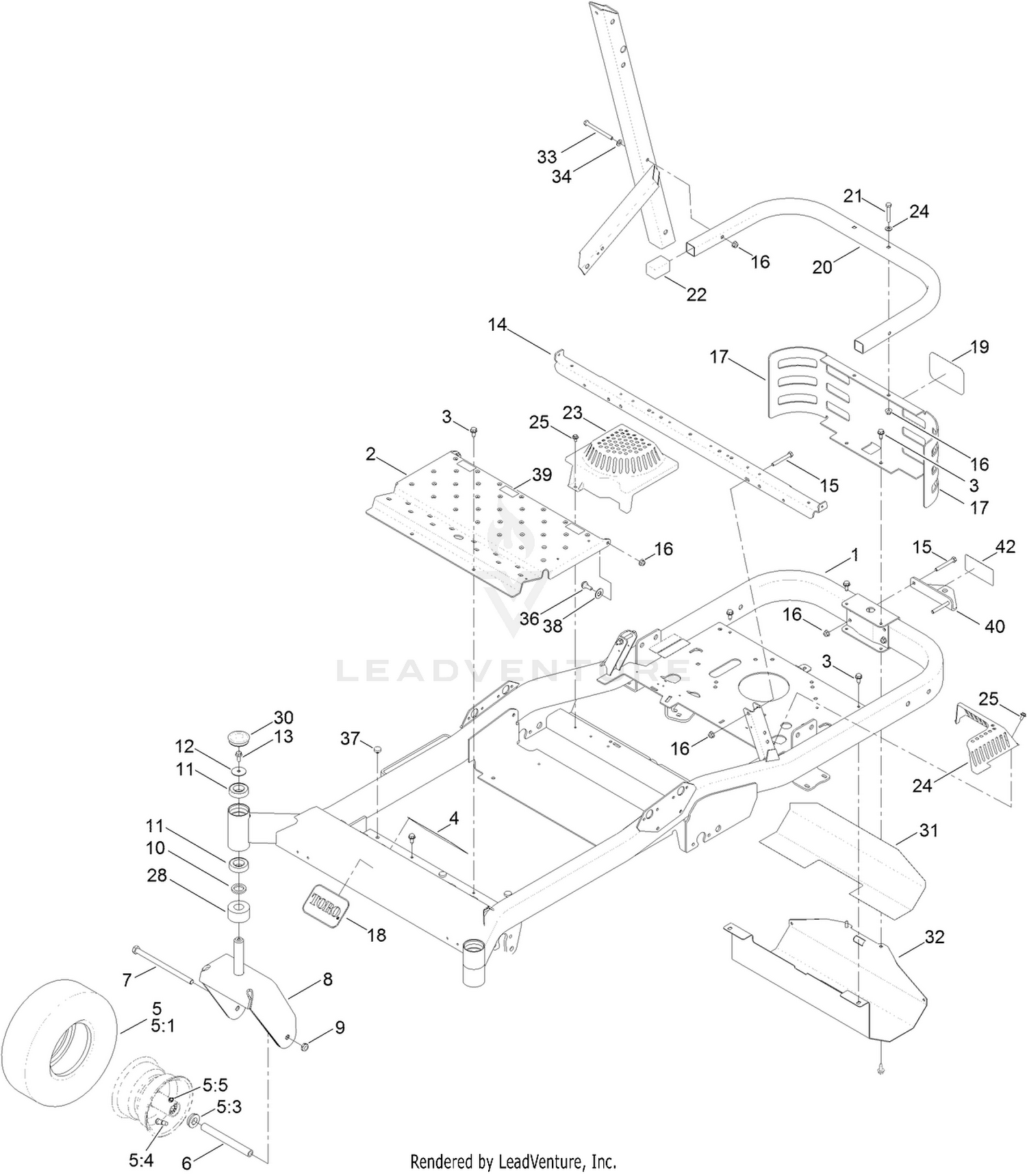

Frame, Front Axle and Caster Wheel Assembly
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-4039-01 | FRAME ASM Price: $1,170.82 |
| 2 | 127-3423-01 | PAN-FLOOR Price: $112.00 |
| 3 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 4 | 132-0871 | DECAL-DANGER Price: $8.39 |
| 5 | 120-2251 | TIRE AND WHEEL ASM Price: $94.69 |
| 6 | 119-3475 | SPANNER Price: $7.46 |
| 7 | 325-37 | SCREW-HH Price: $2.57 |
| 8 | 3296-45 | NUT-HEX Price: $3.79 |
| 9 | 127-3309-01 | FORK-CASTER Price: $73.15 |
| 10 | 10-8110 | WASHER-THRUST Price: $1.09 |
| 11 | 109-3678 | BEARING-BALL Price: $9.46 |
| 12 | 3256-68 | WASHER-FLAT Price: $2.69 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 14 | 121-2953-03 | SUPPORT-SEAT Price: $33.46 |
| 15 | 32136-4 | NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 120-2248-03 | GUARD-REAR Price: $83.63 |
| 18 | 67-1300 | DECAL Price: $29.99 |
| 19 | 105-8278 | DECAL Price: $9.67 |
| 20 | 121-0704-01 | TUBE-GUARD Price: $68.41 |
| 21 | 322-10 | SCREW-HH Price: $0.70 |
| 22 | 121-2980 | CAP Price: $1.47 |
| 23 | 117-1241 | COVER-FAN, RH Price: $12.84 |
| 24 | 117-1242 | COVER-FAN, LH Price: $9.41 |
| 25 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 28 | 127-3330-01 | SPACER-CASTER Price: $11.68 |
| 30 | 116-4348 | CAP-GREASE Price: $2.36 |
| 31 | 117-7220 | FOIL-HEAT SHIELD Price: $15.97 |
| 32 | 131-4137-03 | SHIELD-HEAT Price: $53.36 |
| 33 | 321-9 | SCREW-HH This part replaces 322-23. Price: $0.27 |
| 34 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 36 | 116-1297 | SCREW-SHOULDER Price: $4.39 |
| 37 | 1-513658 | BUMPER Price: $6.09 |
| 38 | 112-9771 | WASHER-TEFLON Price: $1.36 |
| 39 | 130-0733 | PAD-RUBBER Price: $0.56 |
| 40 | 117-1232-03 | BRACKET-HITCH Price: $19.74 |
