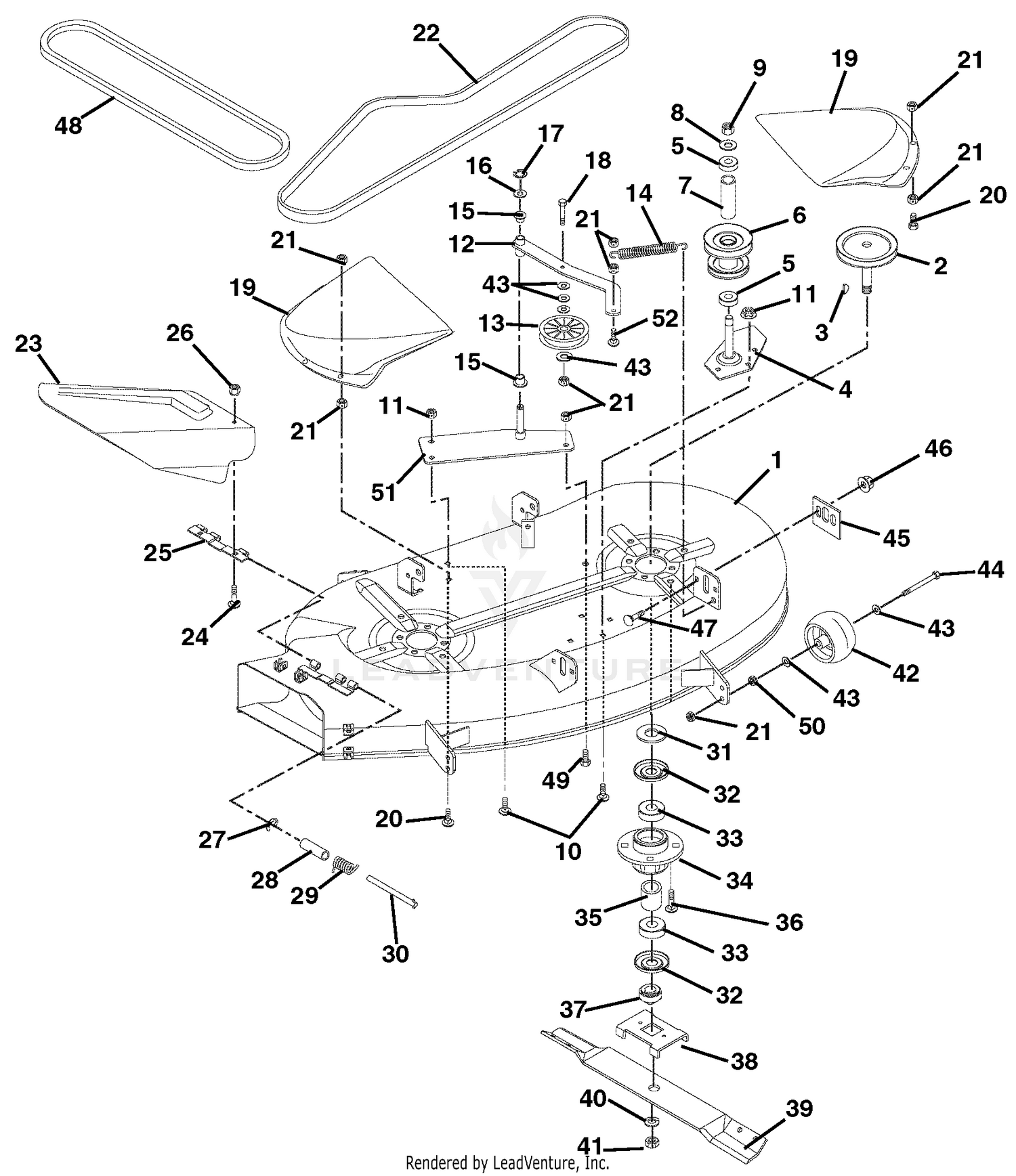

| Ref | Part Number | Description |
|---|
| 1 |
51506100 |
MWR, 40" GRAVELY ZT W/DECALS Price: $399.95 |
| 1 |
51506200 |
MWR, 40" GRAVELY ZT COMPLETE Price: $667.70 |
| 2 |
01545000 |
SPINDLE, 40" PAN Price: $87.45 |
| 3 |
06608700 |
KEY-WDRF .19X.75 HRD #9 This part replaces 06604200. Price: $0.95 |
| 4 |
01547951 |
PLATE, MOUNT 40" Price: $97.45 |
| 5 |
05435100 |
BRG-BALL .625X1.375X.43 Price: $14.45 |
| 6 |
03602200 |
JACKSHAFT PULLEY Price: $173.45 |
| 7 |
03615500 |
SPACER .640X.880X2.545 Price: $25.45 |
| 8 |
06401117 |
WSHR, FLT .630X1.005X.062 ZCC This part replaces 06436100. Price: $0.45 |
| 10 |
06200333 |
BLT, RHSSN .31-18X.625 G5 ZCC This part replaces 06212200. Price: $1.45 |
| 11 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 12 |
01547851 |
WELDMENT, IDLER ARM Price: $51.95 |
| 13 |
07324600 |
IDLER 3.5" DIA Price: $35.95 |
| 14 |
08300512 |
SPRING, EXTENSION This part replaces 08336100. Price: $15.45 |
| 15 |
05503700 |
BSHG-FLG.500X.625X.312X.750NY Price: $3.45 |
| 16 |
06401126 |
WSHR, FLT .505X.880X.072 ZCC This part replaces 06436600. Price: $3.45 |
| 17 |
05710200 |
RG-RTNG-EXT .500X.042 (E) Price: $0.95 |
| 18 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC This part replaces 05958500. Price: $1.45 |
| 19 |
01520100 |
COVER Price: $53.45 |
| 20 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 21 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 22 |
07235500 |
V-BELT, HA-RAW EDGE Price: $39.95 |
| 24 |
06200305 |
BLT, RHSSN.25-20X.500 G5 ZCC This part replaces 06214300. Price: $1.45 |
| 25 |
02709551 |
HINGE PLATE Price: $24.95 |
| 26 |
06500824 |
NUT-SPNLK-FLG .25-20 ZC120 This part replaces 06530100. Price: $0.95 |
| 27 |
05706300 |
RG-RTNG-EXT .312X.025 Price: $0.45 |
| 28 |
02202900 |
BSHG-SLV .334 X .502 X 1.437 Price: $5.45 |
| 29 |
08307200 |
SG-TORS .095X.50X 1.0 Price: $18.95 |
| 30 |
03624200 |
PIN Price: $41.95 |
| 31 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06444200. Price: $3.45 |
| 32 |
00341900 |
BEARING SLINGER Price: $20.45 |
| 33 |
05412000 |
BRG-BALL .750X1.781X.61 Price: $13.45 |
| 34 |
03625000 |
SPINDLE HOUSING Price: $132.95 |
| 35 |
02526400 |
SPACER .753X1.000X1.140 Price: $23.45 |
| 36 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 37 |
03037500 |
RETAINER HUB Price: $56.45 |
| 38 |
03485500 |
BLADE TRAY 48 Price: $18.45 |
| 39 |
03624700 |
BLADE Price: $28.95 |
| 41 |
06537700 |
NUT-JAM .75-10 YWZC Price: $2.45 |
| 42 |
02745400 |
ROLLER This part replaces 050825. Price: $14.45 |
| 43 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 44 |
05901817 |
BLT, HEX .38-16X3.25 G5 ZCC This part replaces 05961100. Price: $3.95 |
| 45 |
01528751 |
MOWER ADJUSTMENT TAB Price: $8.70 |
| 46 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 47 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 48 |
07234300 |
V-BELT, HA-WRAPPED Price: $34.95 |
| 49 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 50 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 51 |
01547751 |
WELDMENT, IDLER MOUNT Price: $119.95 |
