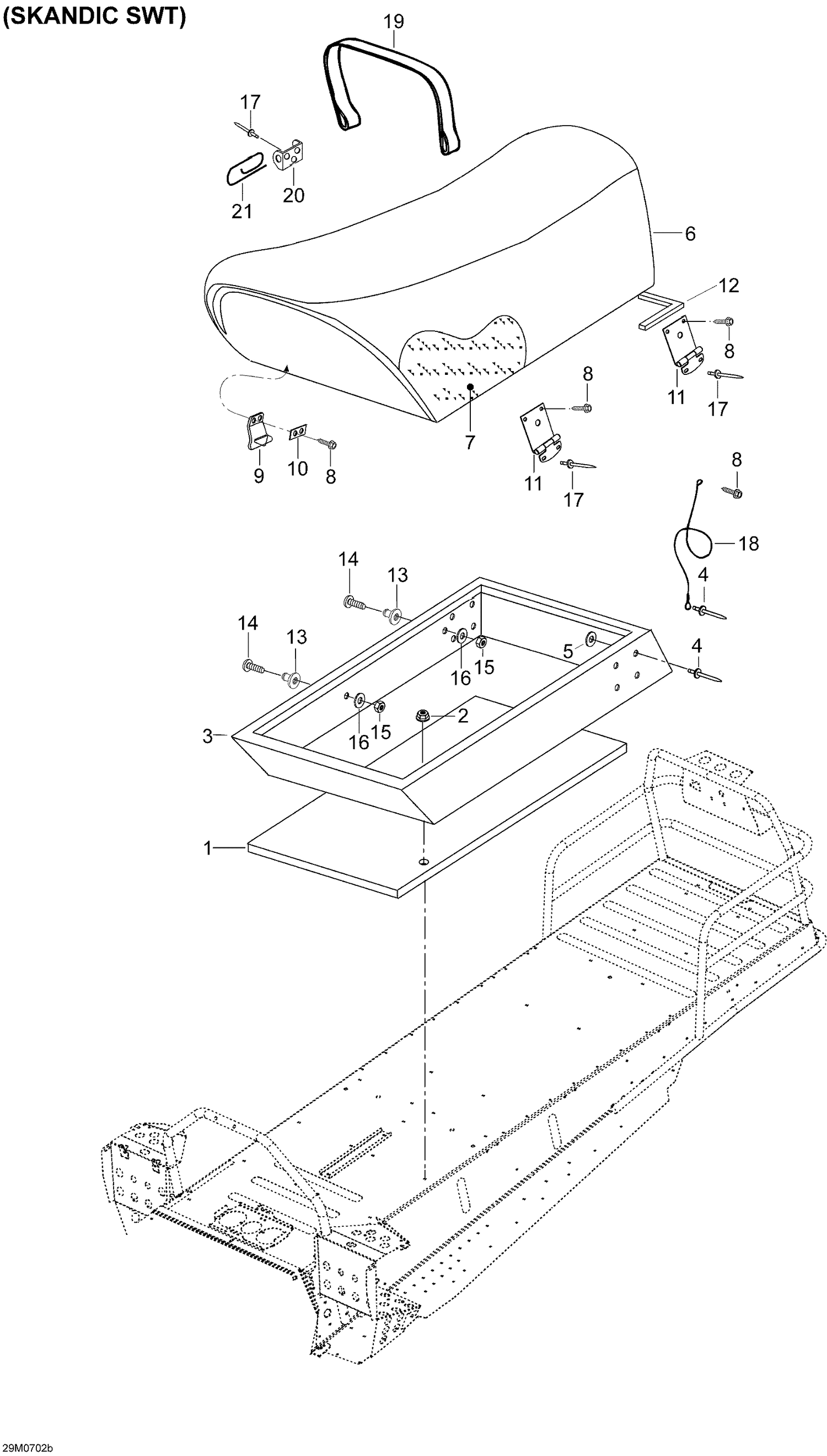

| Ref | Part Number | Description |
|---|
| 1 |
M5346331 |
Foam |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 3 |
605354918 |
Seat Box SWT |
| 4 |
36005 |
Rivet This part replaces M36005. |
| 5 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 6 |
Not |
Available As Spare Part - Seat Ass'y |
| 7 |
605153077 |
COVER SEAT - Call your local BRP dealership |
| 8 |
M40888 |
Screw |
| 9 |
M5346383 |
LATCH - Call your local BRP dealership |
| 10 |
M5446848 |
PLATE - Call your local BRP dealership |
| 11 |
M5446374 |
HINGE - Call your local BRP dealership |
| 12 |
M390002 |
Cushion |
| 13 |
605449087 |
Counter Roller |
| 14 |
40168 |
Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168. |
| 15 |
232541414 |
Elastic Stop Nut M4 |
| 16 |
20037 |
Washer This part replaces M20037. |
| 17 |
36108 |
Rivet This part replaces M36083. |
| 18 |
293750070 |
Seat Retainer Cable This part replaces M546777. |
| 19 |
M538856 |
Seat Belt |
| 20 |
M548824 |
Seat Belt Latch |
