M390002
Cushion

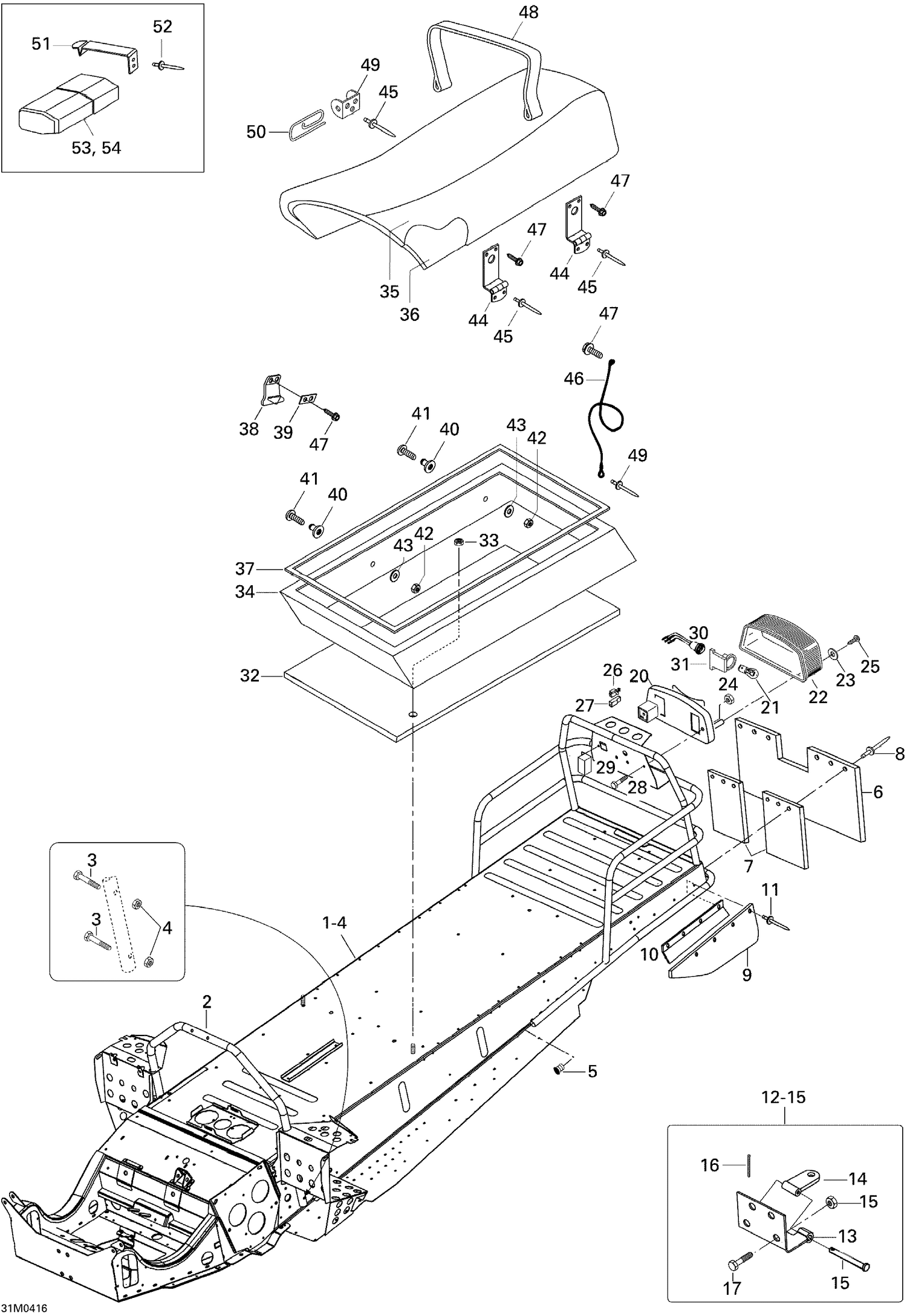

Схема сборки, где используется деталь
Used in (4 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Frame And Seat (1 Up) | Ski-Doo / 2004 / Skandic / Skandic WT/SWT 550F , 2004 / 09- Frame And Seat (1 Up | 37 |
| SKI_DOO_EN_US | 09- Frame And Seat 2 (550F SWT) | Ski-Doo / 2005 / Skandic / Skandic SWT 550F, 2005 / 09- Frame And Seat 2 (550F S | 38 |
| SKI_DOO_EN_US | 09- Seat SWT | Ski-Doo / 2006 / Skandic / Skandic SWT 550F, 2006 000FE6B00 / 09- Seat SWT | 12 |
| SKI_DOO_EN_US | 09- Seat SWT 550 | Ski-Doo / 2007 / Skandic / Skandic SWT 550F, 2007 / 09- Seat SWT 550 | 12 |
