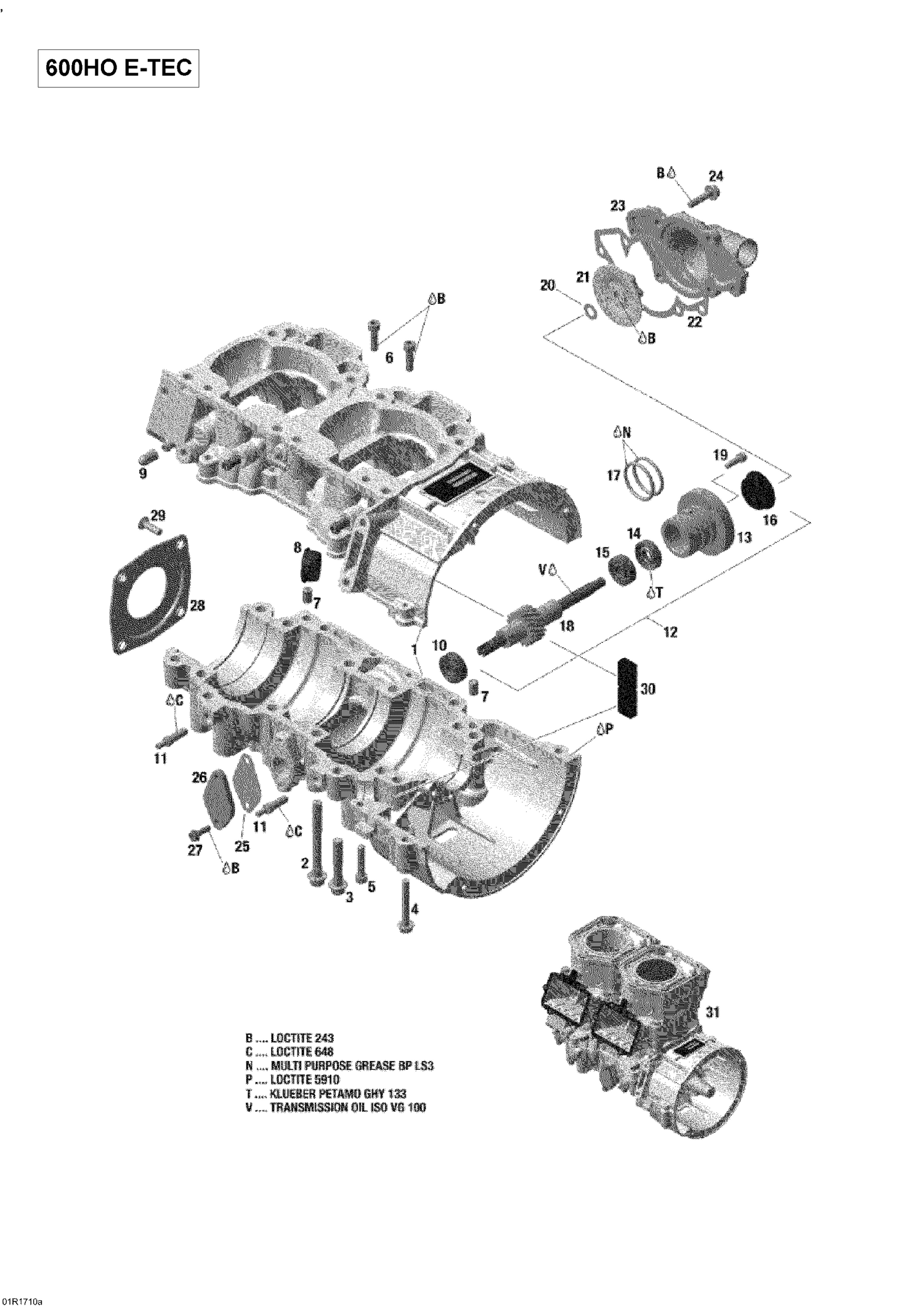

01- Crankcase And Water Pump - 600HO E-TEC
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420640832 | Hex. Collar Screw M8 x 75 |
| 3 | 420640433 | Collar Hex Screw M8 X 45 This part replaces 420640432. |
| 4 | 420640312 | Allen Screw M6 x 45 |
| 5 | 420540000 | Allen Screw M6 x 30 |
| 6 | 420840403 | Allen Screw M6 x 22 |
| 7 | 420632010 | Center Pin 8 X 12 |
| 8 | 420660890 | Cable Grommet |
| 9 | 420960770 | Cap |
| 10 | 420232100 | Ball Bearing |
| 11 | 420956071 | Check Valve This part replaces 420956070. |
| 13 | Not | Available As Spare Part - Step Collar |
| 15 | 420232100 | Ball Bearing |
| 18 | Not | Available As Spare Part - Water Pump Shaft |
| 19 | 420840514 | Allen Screw M5 x 16 |
| 20 | 420227945 | Thrust Washer |
| 21 | 420222505 | Water Impeller |
| 23 | 420922630 | Water Pump Housing |
| 24 | 420240034 | Hex. Screw M6 X 25 |
| 26 | 420810827 | Cover Plate |
| 27 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 28 | 420812422 | Oil Seal Cover This part replaces 420812420. |
| 29 | 420941436 | Screw M6 X 20 |
| 30 | 420960925 | Rubber Stopper |
