420640832
Hex. Collar Screw M8 x 75

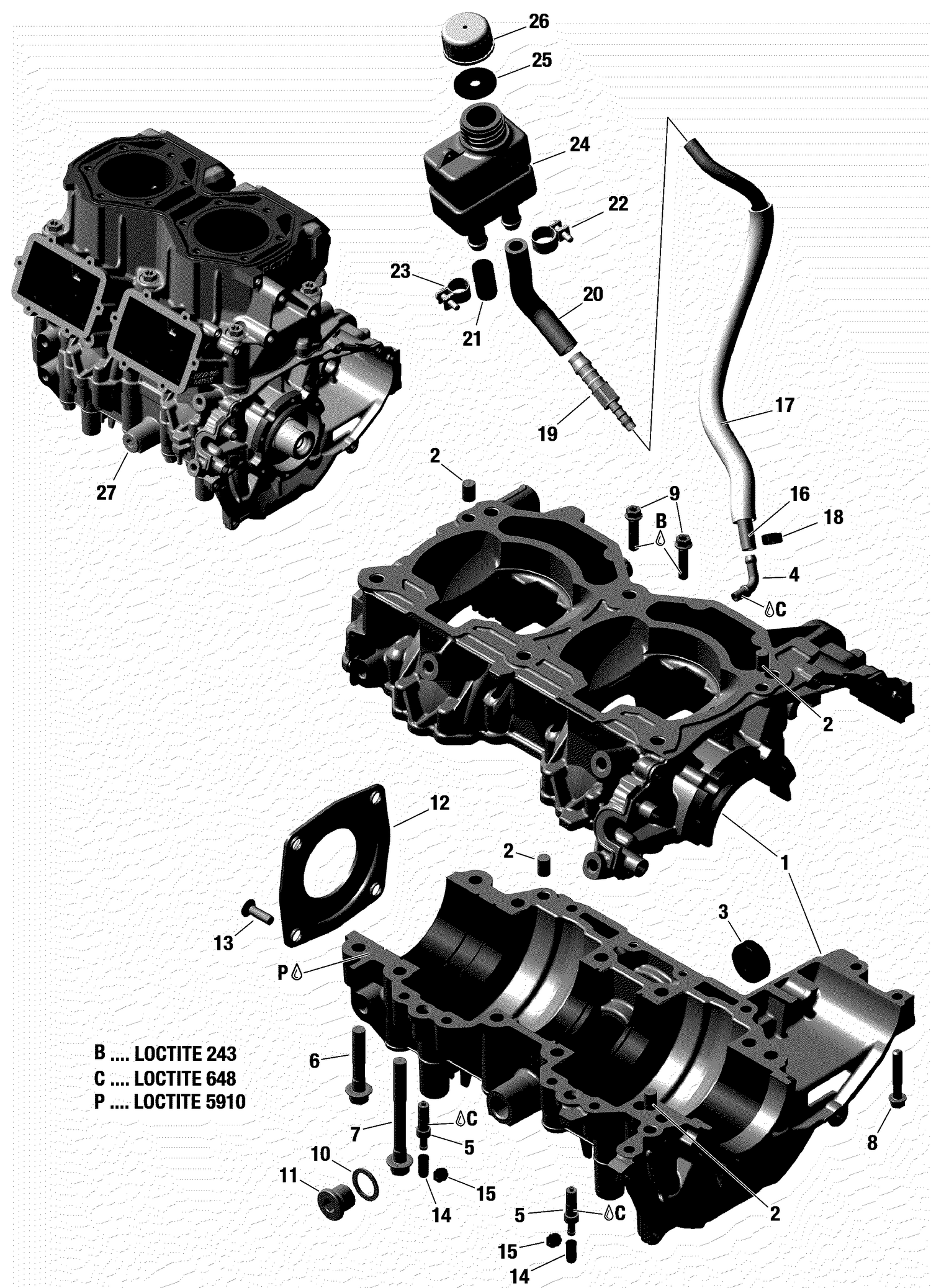

Схема сборки, где используется деталь
Used in (21 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 01- Crankcase | Lynx / 2018 / RAVE Series / RAVE Racing, 2018 000SFJB00 / 01- Crankcase | 7 |
| LNX_EN_US | 01- Crankcase | Lynx / 2019 / 004 - 49 Ranger Series / 001 - 49 Ranger 600R E-TEC, 2019 000FCKA0 | 7 |
| LNX_EN_US | 01- Crankcase - 598 RS | Lynx / 2019 / 006 - RAVE Series / 003 - RAVE RS 600 RS E-TEC, 2019 000SFKB00 / 0 | 7 |
| LNX_EN_US | 01- Engine - Crankcase - 600R E-TEC | Lynx / 2020 / 001 - BoonDocker Series / 001 - BOONDOCKER 3900 600R E-TEC, 2020 0 | 7 |
| LNX_EN_US | 01- ROTAX - Crankcase | Lynx / 2021 / 001 - BoonDocker Series / 001 - BOONDOCKER 3900 600R E-TEC, 2021 0 | 7 |
| LNX_EN_US | 01- ROTAX - Crankcase | Lynx / 2022 / 001 - BoonDocker Series / 001 - BOONDOCKER STD 3900 600R E-TEC, 20 | 7 |
| LNX_EN_US | 01- ROTAX - Crankcase | Lynx / 2023 / 001 - 49 Ranger Series / 001 - 49 RANGER PRO - 600R E-TEC, 2023 00 | 7 |
| LNX_EN_US | 01- ROTAX - Crankcase | Lynx / 2023 / 005 - Commander Series / 001 - COMMANDER STD 600R E-TEC, 2023 000S | 7 |
| LNX_EN_US | 01- ROTAX - Crankcase | Lynx / 2023 / 006 - RAVE Series / 001 - RAVE ENDURO - 600R E-TEC, 2023 000SCPA00 | 7 |
| SKI_DOO_EN_US | 01- Crankcase And Water Pump - 600HO E-TEC | Ski-Doo / 2017 / EXPEDITION Family / EXPEDITION - 2-STROKE - LE-SE-XTREME, 2017 | 2 |
| SKI_DOO_EN_US | 01- Crankcase And Water Pump - 600HO E-TEC | Ski-Doo / 2017 / SKANDIC Family / SKANDIC - 2-STROKE - WT-SWT, 2017 000FWHA00 00 | 2 |
| SKI_DOO_EN_US | 01- Crankcase | Ski-Doo / 2018 / SKI-DOO - MXZ Racing / 1- MXZ 600RS - Racing, 2018 000BMJA00 00 | 7 |
| SKI_DOO_EN_US | 01- Crankcase | Ski-Doo / 2018 / SKI-DOO - MXZ Series / 7- MXZ X - 600R ETEC, 2018 000MWJA00 000 | 7 |
| SKI_DOO_EN_US | 01- Crankcase | Ski-Doo / 2019 / SKI-DOO - BACKCOUNTRY Series / 001 - BACKCOUNTRY 600R E-TEC, 20 | 7 |
| SKI_DOO_EN_US | 01- Crankcase - 598 RS | Ski-Doo / 2019 / SKI-DOO - MXZ Series / 004 - MXZ 600 RACING, 2019 000BMKA00 000 | 7 |
| SKI_DOO_EN_US | 01- Crankcase | Ski-Doo / 2019 / SKI-DOO - SUMMIT Series / 002 - SUMMIT 600R E-TEC, 2019 000CCKA | 7 |
| SKI_DOO_EN_US | 01- Engine - Crankcase - 600R E-TEC | Ski-Doo / 2020 / 001 - SKI-DOO - North America - BACKCOUNTRY Series / 001 - BACK | 7 |
| SKI_DOO_EN_US | 01- Rotax - Crankcase | Ski-Doo / 2022 / 001 - SKI-DOO - North America - BACKCOUNTRY Series / 002 - BACK | 7 |
| SKI_DOO_EN_US | 01- Rotax - Crankcase | Ski-Doo / 2022 / 001 - SKI-DOO - North America - BACKCOUNTRY Series / 002 - BACK | 7 |
| SKI_DOO_EN_US | 01- ROTAX - Crankcase | Ski-Doo / 2023 / 001 - SKI-DOO - North America - BACKCOUNTRY Series / 002 - BACK | 7 |
| SKI_DOO_EN_US | 01- ROTAX - Crankcase | Ski-Doo / 2023 / 006 - SKI-DOO - North America - RENEGADE Series / 006 - RENEGAD | 7 |
