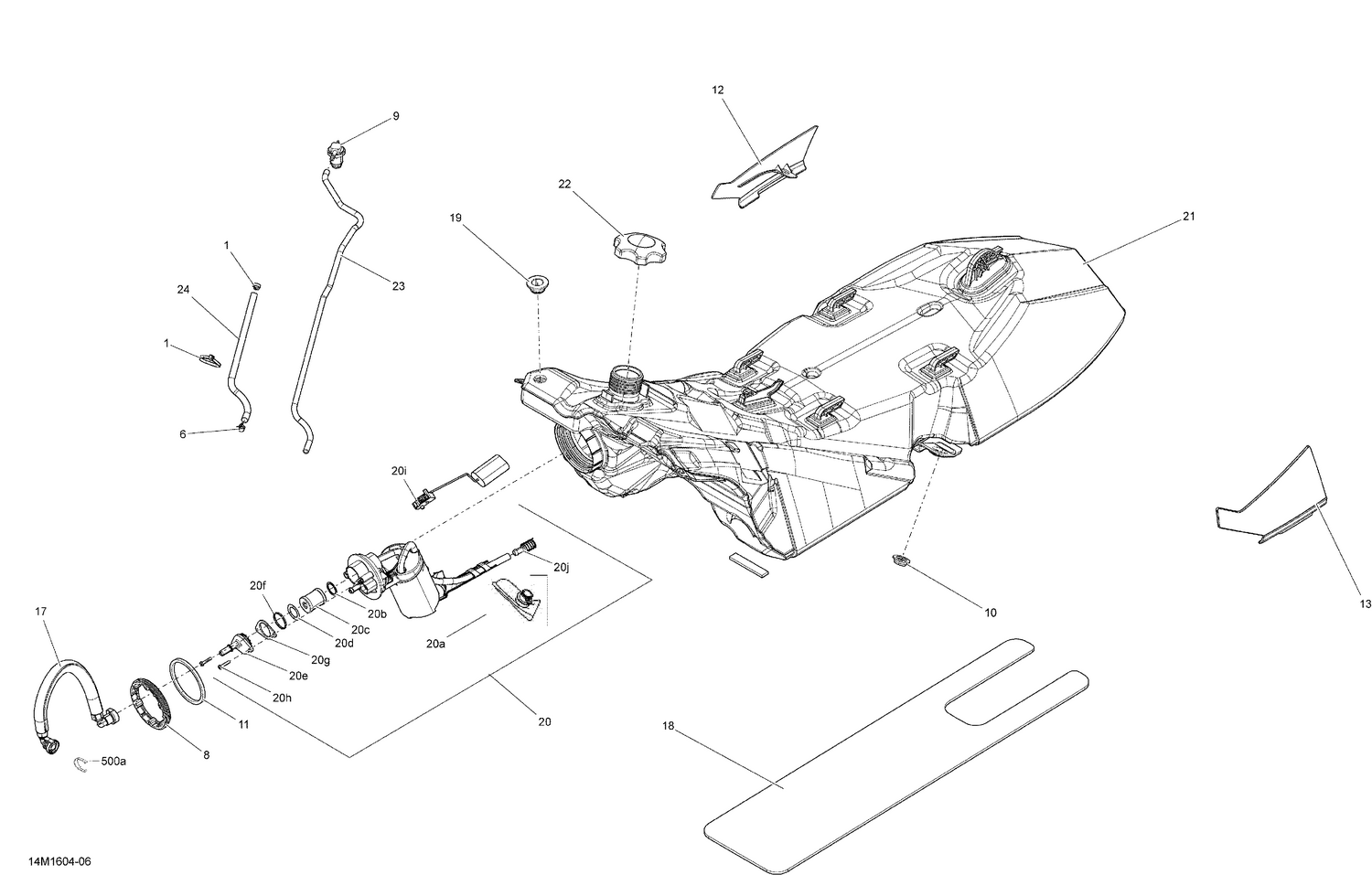

02- Fuel System - All Models
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414115200 | Tie-Rap 180 mm |
| 6 | 414554800 | Spring Clamp |
| 8 | 513033180 | Ring |
| 9 | 513033842 | Check Valve This part replaces 513033188. |
| 10 | 513033326 | Shoulder Bushing |
| 11 | 513033334 | Gasket |
| 12 | 513033418 | RH Cap |
| 13 | 513033419 | LH Cap |
| 17 | 513033583 | Hose Ass'y |
| 18 | 513033588 | Insulating Foam |
| 19 | 513033596 | Grommet |
| 20 | 513034260 | PUMP FUEL This part replaces 513033654. |
| 20a | 415129451 | Fuel Filter |
| 20b | 415129511 | O-Ring |
| 20c | 415129510 | Fuel Filter |
| 20d | 415129512 | Wave Washer |
| 20e | 415129685 | Cover |
| 20f | 415129509 | O-Ring |
| 20g | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 20h | 415129513 | Screw |
| 20i | 415130108 | Fuel Level Sensor This part replaces 415129671. |
| 20j | 414872100 | Fuel Filter Strainer |
| 21 | 513033667 | Fuel Tank |
| 22 | 513033969 | Fuel Tank Cap This part replaces 513033720. |
| 23 | 219704410 | Polyurethane Hose 10000Mm Long |
| 24 | 504153074 | Tube Protector |
