513033583
Hose Ass'y

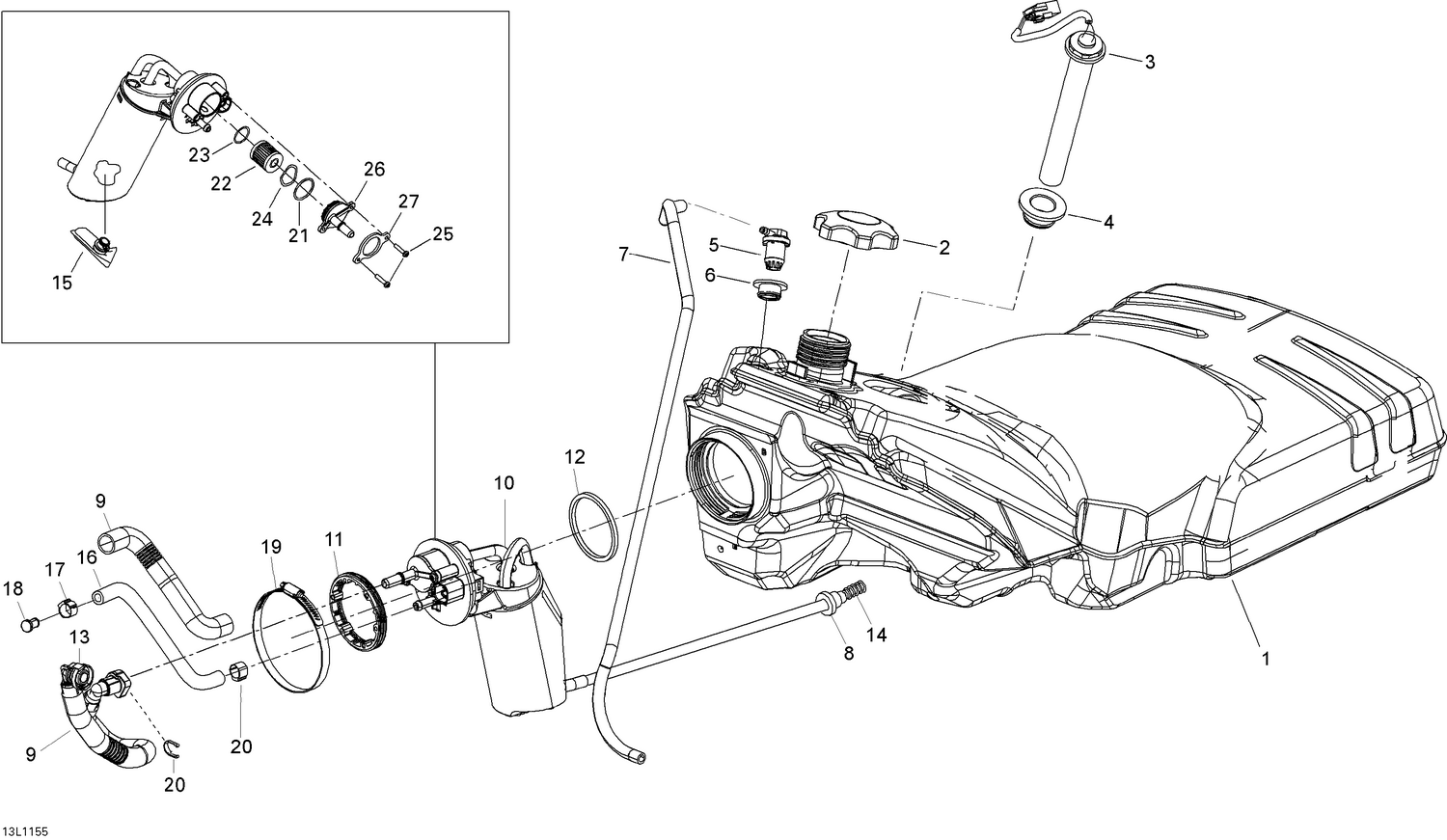

Схема сборки, где используется деталь
Used in (24 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 02- Fuel System | Lynx / 2011 / Adventure / Adventure GT 1200 4-TEC, 2011 / 02- Fuel System | 13 |
| LNX_EN_US | 02- Fuel System | Lynx / 2012 / Adventure / Adventure GT 1200 4-TEC CE, 2012 / 02- Fuel System | 13 |
| LNX_EN_US | 02- Fuel System | Lynx / 2012 / Adventure / Adventure GT 1200 4-TEC, 2012 / 02- Fuel System | 13 |
| LNX_EN_US | 02- Fuel System | Lynx / 2013 / Adventure / Adventure GT 1200 4-TEC, 2013 000LADB00 000LADE00 000L | 23 |
| LNX_EN_US | 02- Fuel System | Lynx / 2013 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2013 000LYDE00 / 02- Fuel Sy | 23 |
| LNX_EN_US | 02- Fuel System | Lynx / 2014 / Adventure / Adventure GT 1200 4-TEC, 2014 000LAEB00 000LAEE00 000L | 23 |
| LNX_EN_US | 02- Fuel System | Lynx / 2014 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2014 000LYEE00 / 02- Fuel Sy | 23 |
| LNX_EN_US | 02- Fuel System | Lynx / 2015 / Adventure / Adventure GT 1200 4-TEC, 2015 000LAFB00 000LAFE00 / 02 | 23 |
| LNX_EN_US | 02- Fuel System | Lynx / 2015 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2015 000LYFE00 / 02- Fuel Sy | 23 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2011 / Expedition / Expedition LE 1200 XU, 2011 000SPBB00 / 02- Fuel S | 13 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2011 / Expedition / Expedition SE 1200 XU, 2011 000SPBA00 000SPBE00 / | 13 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2012 / Expedition / Expedition LE 1200 XU, 2012 000SPCB00 / 02- Fuel S | 13 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2012 / Expedition / Expedition SE 1200 XU, 2012 000SPCA00 000SPCE00 / | 13 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2013 / EXPEDITION / EXPEDITION LE 1200 XU, 2013 000SPDB00 000SPDC00 / | 23 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2013 / EXPEDITION / EXPEDITION SE 12004TEC, REVXU, 2013 000SPDA00 000S | 23 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE & SE 1200 XR, 2013 000EPDA00 0 | 29 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2013 / GSX / GSX LE & SE 1200 XR, 2013 000DKDA00 000DNDA00 000DNDB00 / | 29 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2013 / MX Z / MXZ X & TNT 1200 XR, 2013 000MKDA00 000MKDB00 000MKDD00 | 29 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2013 / RENEGADE / RENEGADE X & ADRENALINE 1200 XR, 2013 000MMDA00 000M | 29 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2014 / EXPEDITION / EXPEDITION LE 1200 XU, 2014 000SPEB00 000SPEB00 00 | 23 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2014 / EXPEDITION / EXPEDITION SE 1200 XU, 2014 000SPEE00 / 02- Fuel S | 23 |
| SKI_DOO_EN_US | 02- Fuel System | Ski-Doo / 2016 / GRAND TOURING Family / GRAND TOURING - 4-STROKE, 2016 000EAGA00 | 17 |
| SKI_DOO_EN_US | 02- Fuel System - All Models | Ski-Doo / 2016 / MXZ Family / MXZ - 4-STROKE, 2016 000MAGA00 000MAGB00 000MKGA00 | 17 |
| SKI_DOO_EN_US | 02- Fuel System - All Models | Ski-Doo / 2016 / RENEGADE Family / RENEGADE - 4-STROKE, 2016 000MBGA00 000MBGB00 | 17 |
