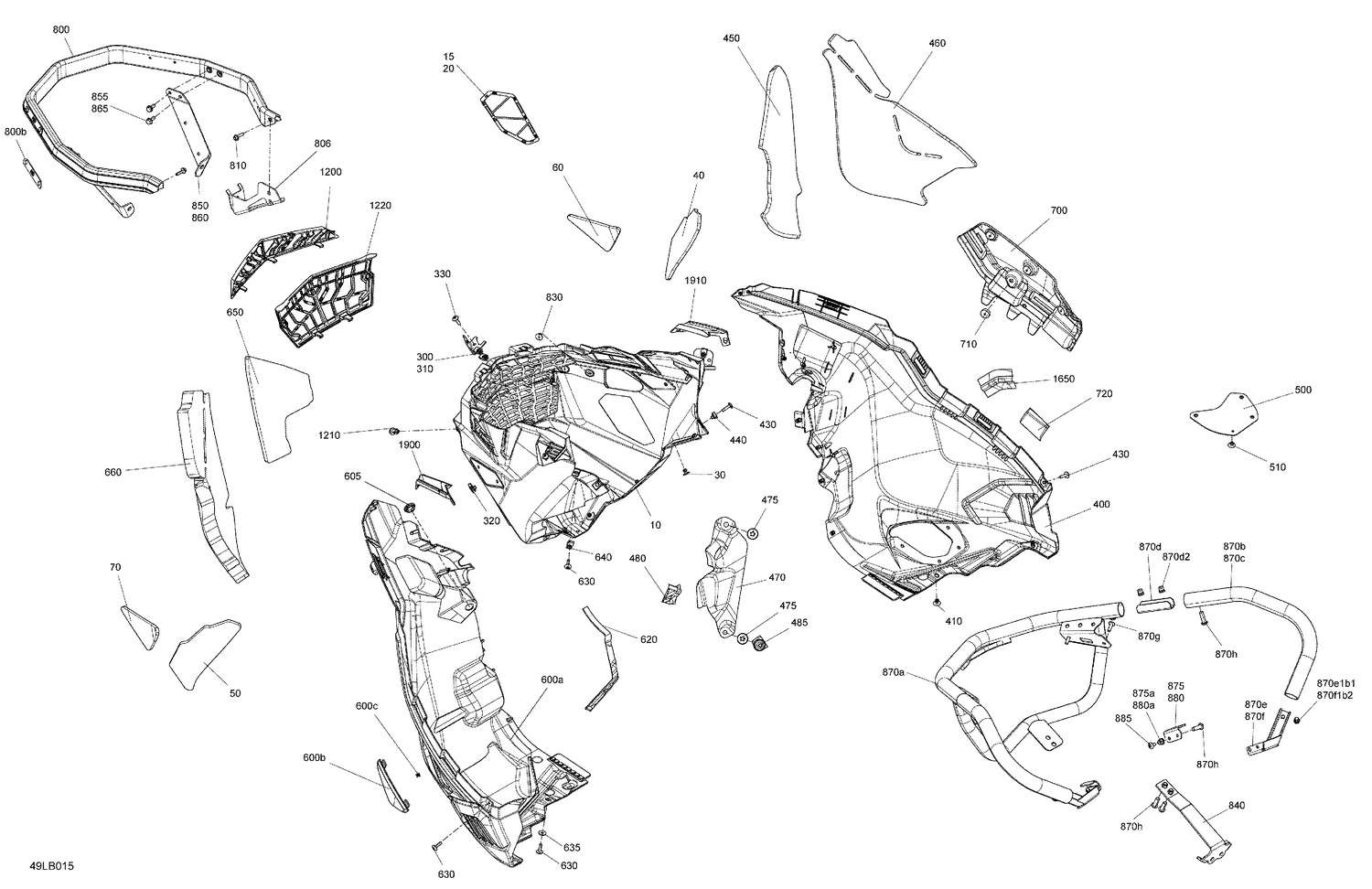

07- Body - Bottom Pan
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008131 | Front Bottom Pan |
| 15 | 517307573 | LH Rear Latch |
| 20 | 517307574 | RH Air Intake Grid |
| 30 | 293150104 | Pop Rivet 3/16 |
| 40 | 502007788 | Foam |
| 50 | 502007789 | Foam |
| 60 | 502007545 | RH Bottom Pan Central Foam |
| 70 | 502007546 | LH Bottom Pan Central Foam |
| 300 | 502007723 | LH Screw Plate |
| 310 | 502007724 | RH Screw Plate |
| 320 | 250000958 | Panel Nut M5 X 0.8 |
| 330 | 250000586 | Torx Truss M5 X 20 |
| 400 | 502007922 | RH Bottom Pan 600MM |
| 410 | 293150104 | Pop Rivet 3/16 |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 502008138 | RH Upper Bottom Pan Foam |
| 460 | 502008139 | RH Lower Bottom Pan Foam |
| 470 | 502007902 | Heat Shield |
| 475 | 508000853 | Push Nut |
| 480 | 44110 | Aluminum Foil |
| 485 | 44110 | Aluminum Foil |
| 500 | 502007901 | Plate |
| 510 | 293150103 | Pop Rivet 3/16 |
| 600a | 502008097 | LH Bottom Pan |
| 600b | 502007676 | Bottom Pan Door |
| 600c | 269800431 | Hairpin |
| 605 | 518330527 | Bottom Pan Plug |
| 620 | 293250087 | Joint En Neoprene, 410 MM |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 650 | 502008140 | LH Upper Bottom Pan Foam |
| 660 | 502008141 | LH Lower Bottom Pan Foam |
| 700 | 502008199 | Heat Shield |
| 710 | 502008149 | Stopper |
| 720 | 44110 | Aluminum Foil |
| 800b | 502007880 | Bumper Trim |
| 806 | 502008380 | Horn Bracket |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16 |
| 840 | 518332288 | Center Bracket |
| 850 | 502008104 | RH Bumper Support |
| 855 | 207661644 | Hex. Flange Screw M6 X 16 |
| 860 | 502008105 | LH Bumper Support |
| 865 | 207661644 | Hex. Flange Screw M6 X 16 |
| 870a | 520002193 | Orange Crush, Front Bumper |
| 870b | 520002201 | Orange Crush, RH Front Bumper Side Tube |
| 870c | 520002202 | Orange Crush, LH Front Bumper Side Tube |
| 870d | 520002203 | Joint Plate |
| 870d2 | 250100065 | Clinching Nut Hexert M8 |
| 870e1b1 | 250100065 | Clinching Nut Hexert M8 |
| 870f1b2 | 250100065 | Clinching Nut Hexert M8 |
| 870g | 250000722 | Torx Truss Screw M6 x 20 |
| 870h | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 875a | 250100065 | Clinching Nut Hexert M8 |
| 880a | 250100065 | Clinching Nut Hexert M8 |
| 885 | 250000675 | Torx Truss Screw M6 x 12 |
| 1200 | 502007977 | Upper Pre Filter |
| 1210 | 293150230 | Tuflok Plastic Rivet |
| 1220 | 502007978 | Lower Pre Filter |
| 1650 | 44110 | Aluminum Foil |
| 1900 | 502008035 | LH Bottom Pan Deflector |
