518332288
Center Bracket

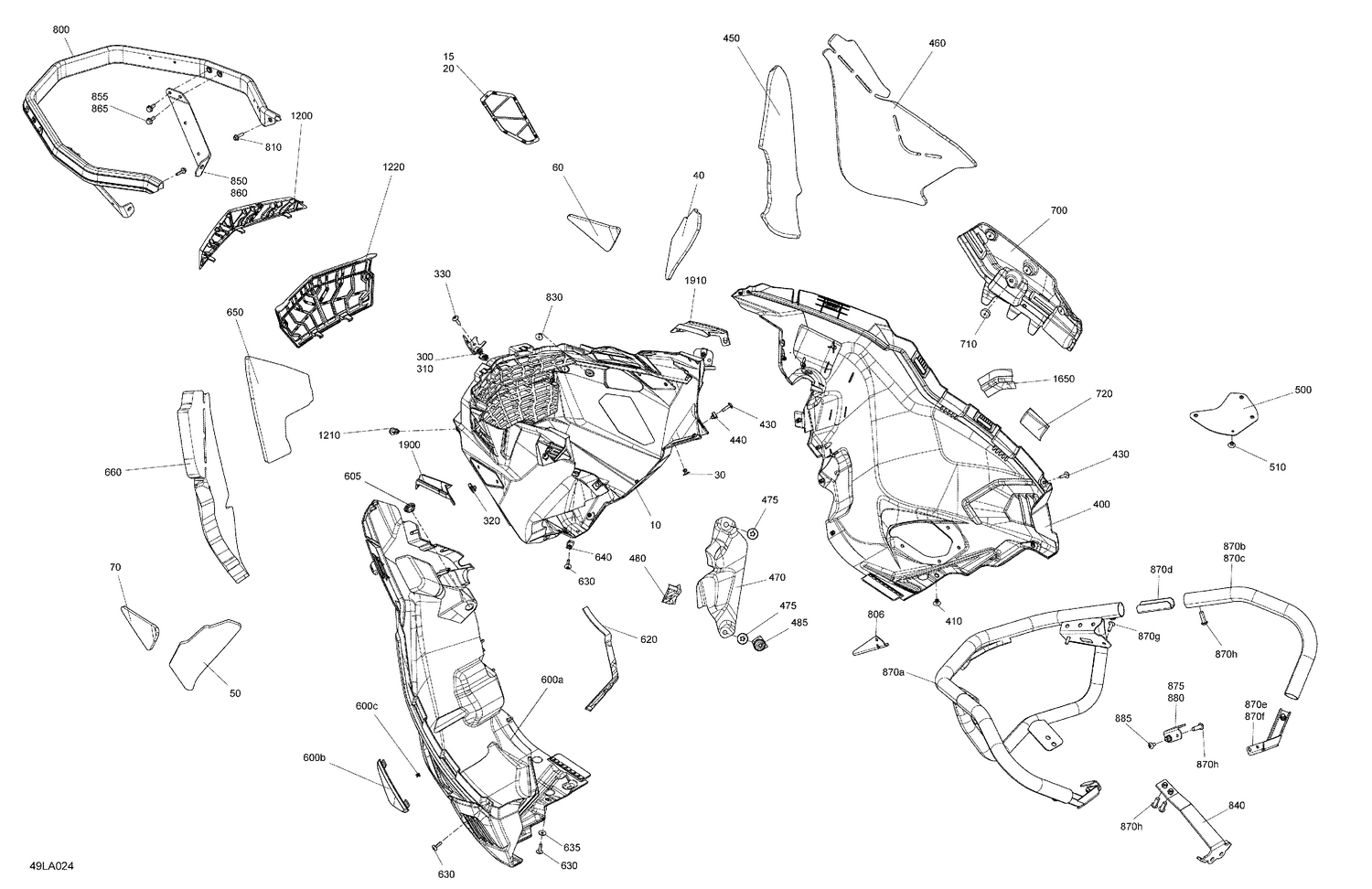

Схема сборки, где используется деталь
Used in (13 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2021 / 005 - 69 Ranger Series / 003 - 69 RANGER 900 ACE Turbo - ALPINE, 2 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2022 / 004 - 59 Ranger Series / 003 - 59 RANGER 900 ACE - ALPINE, 2022 00 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2022 / 005 - 69 Ranger Series / 003 - 69 RANGER 900 ACE TURBO - ALPINE, 2 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 001 - 49 Ranger Series / 001 - 49 RANGER PRO - 600R E-TEC, 2023 00 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 002 - 59 Ranger Series / 003 - 59 RANGER ALPINE - 900 ACE, 2023 00 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 003 - 69 Ranger Series / 005 - 69 RANGER ALPINE 900 ACE TURBO R, 2 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 008 - XTerrain Series / 005 - XTERRAIN RE 3700 - 850 E-TEC, 2023 0 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 008 - XTerrain Series / 006 - XTERRAIN RE 3700 - 900 ACE TURBO R, | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 008 - XTerrain Series / 007 - XTERRAIN PRO 3900 - 600R E-TEC, 2023 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 008 - XTerrain Series / 009 - XTERRAIN BRUTAL 3900 - 850 E-TEC, 20 | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 010 - North America - XTerrain Series / 001 - XTERRAIN RE 3700 - | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 010 - North America - XTerrain Series / 002 - XTERRAIN RE 3700 - | 840 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 010 - North America - XTerrain Series / 003 - XTERRAIN BRUTAL 390 | 840 |
