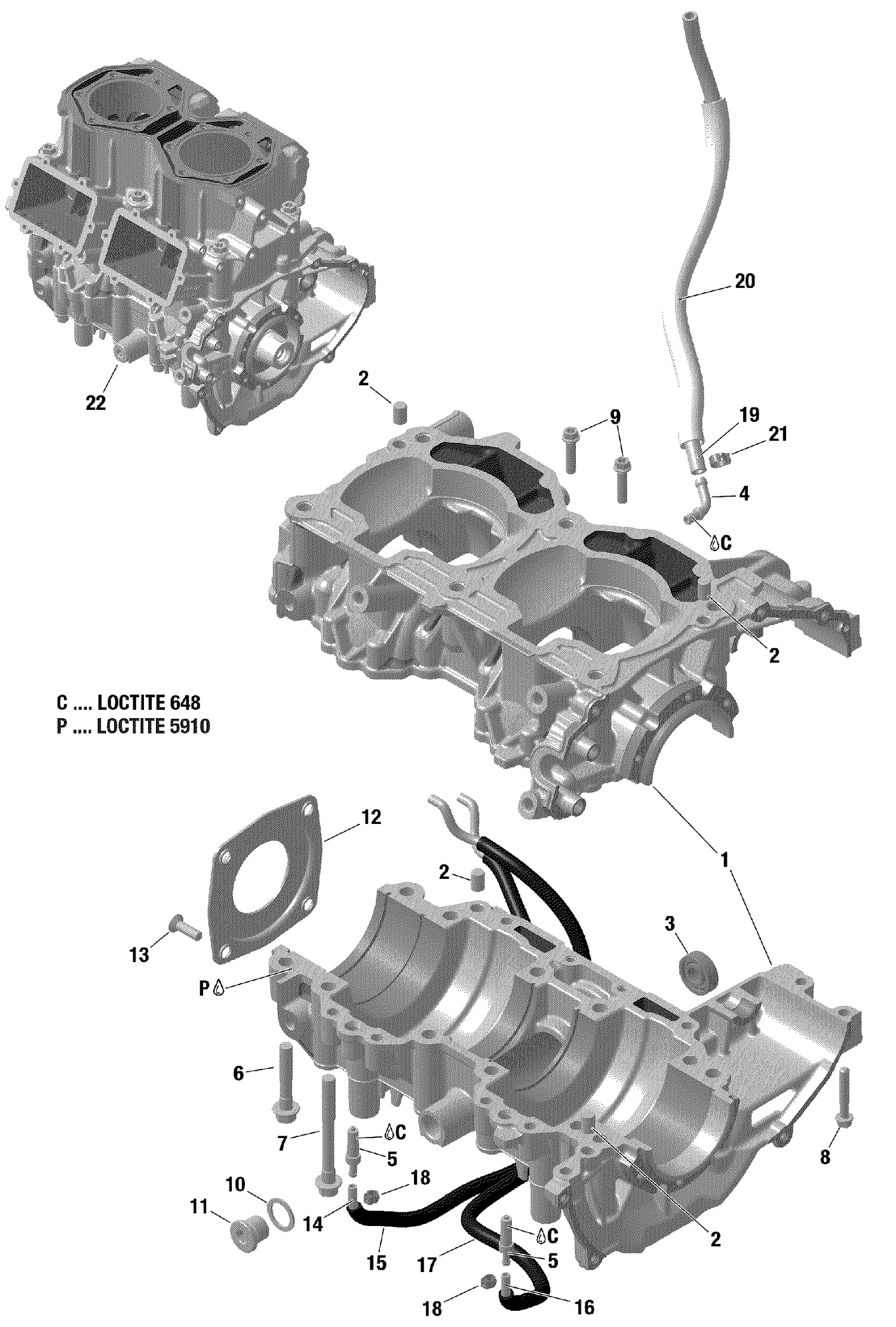

01- Crankcase
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420232100 | Ball Bearing |
| 4 | 420924529 | Impulse Fitting |
| 5 | 420956071 | Check Valve This part replaces 420956070. |
| 6 | 420640433 | Collar Hex Screw M8 X 45 This part replaces 420640432. |
| 7 | 420640832 | Hex. Collar Screw M8 x 75 |
| 8 | 420440274 | Flanged Torx Screw M6 X 35 |
| 9 | 420440234 | Flanged Torx Screw M6 X 25 |
| 10 | 420430622 | O-Ring |
| 11 | 420640457 | Plug Screw |
| 12 | 420812422 | Oil Seal Cover This part replaces 420812421. |
| 13 | 420941436 | Screw M6 X 20 |
| 14 | 420201928 | Oil Line 505Mm This part replaces 420201541. |
| 15 | 420460042 | Tube 390MM |
| 16 | 420201928 | Oil Line 505Mm This part replaces 420201921. |
| 17 | 420460058 | Tube 465MM |
| 18 | 420853138 | Clamp 5.8-7.0MM |
| 19 | 420201551 | Oil Line 310MM |
| 20 | 420460047 | Protector Tube |
| 21 | 420853653 | Clamp |
