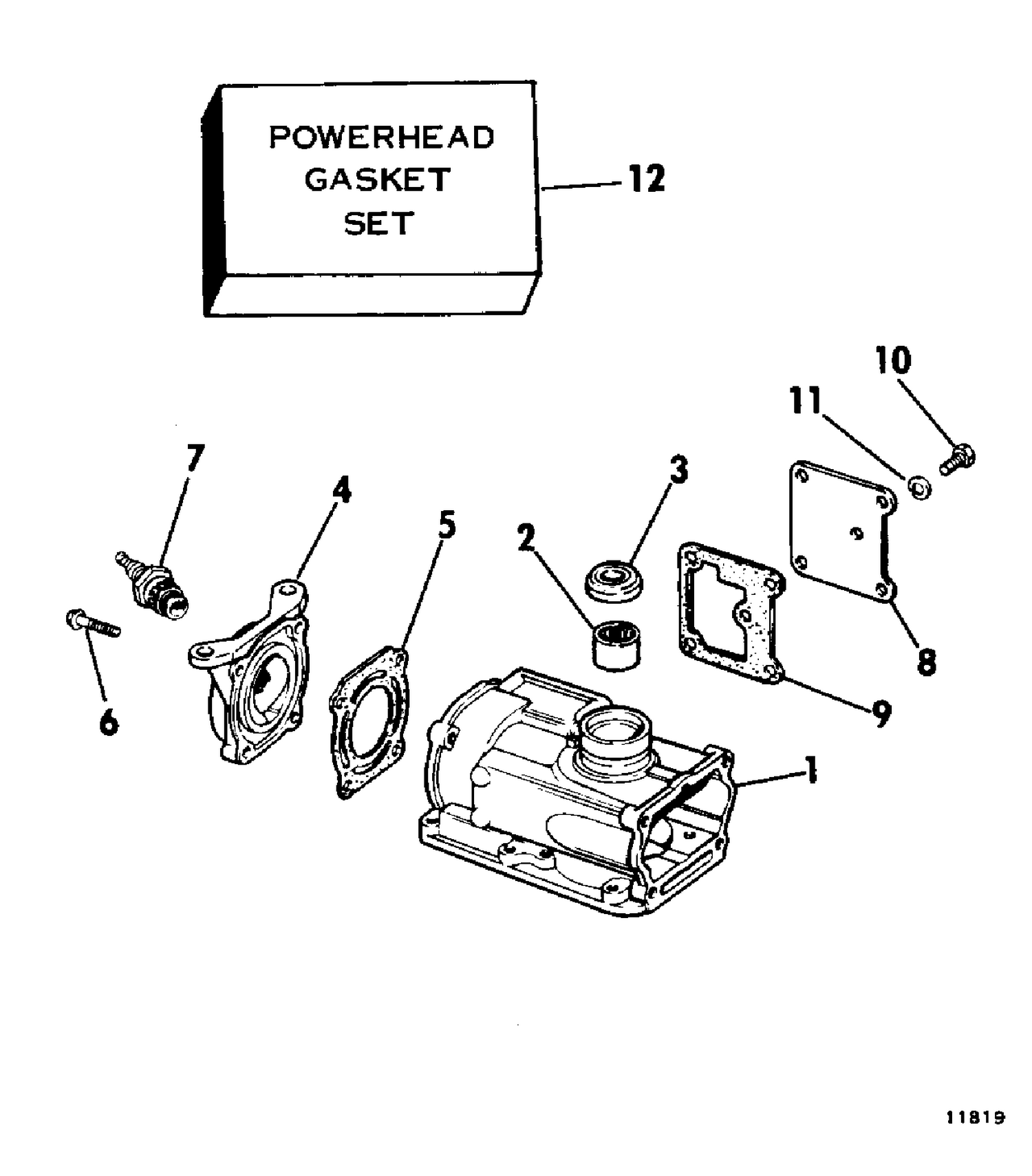

CYLINDER & CRANKCASE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0383011 | CYLINDER AND SLEEVE ASSY |
| 2 | 0382307 | NEEDLE BEARING |
| 3 | 0315256 | SEAL, Crankshaaft |
| 4 | 0316513 | CYLINDER HEAAD |
| 5 | 0313782 | GASKET, Cylinder head |
| 6 | 0309905 | SCEW,Cylinder head |
| 7 | 0384734 | SPARK PLUG, AC M44C |
| 7 | 0384869 | SPARK PLUG, Champion RJ6C |
| 7 | 0593871 | SPARK PLUB, Champion j6j |
| 8 | 0313781 | PLATE, Exhaust |
| 9 | 0313783 | GASKET, Cover plate |
| 10 | 0306487 | SCREW |
