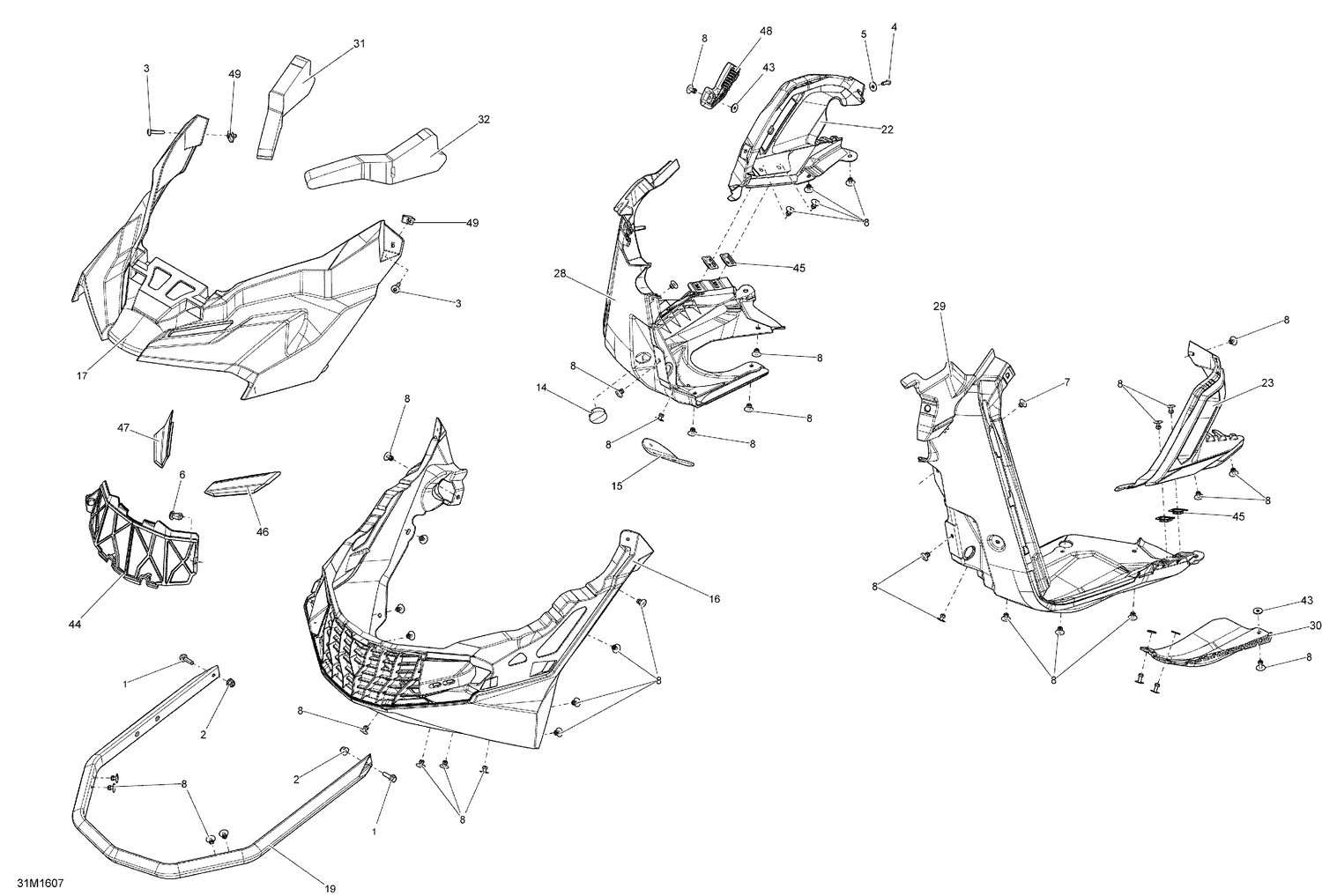

09- Bottom Pan
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 250000587 | Torx Screw M5 X 26 |
| 4 | 250000652 | Socket Screw M5 X .80 X 16 |
| 5 | 250200025 | Washer M5 |
| 6 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 7 | 293150103 | Pop Rivet 3/16" |
| 8 | 293150104 | Pop Rivet 3/16" |
| 14 | 414916600 | Black, Nylon Cap |
| 15 | 502006935 | Snow Deflector |
| 16 | 502007404 | YELLOW FRONT BOTTOM PAN - Call your local BRP dealership |
| 17 | 502007173 | Black Bottom Pan Cap |
| 19 | 860201167 | Black Front Bumper This part replaces 502007176. |
| 22 | 502007306 | Black - RH Side Bottom Pan Panel |
| 23 | 502007304 | Black - LH Side Bottom Pan Panel |
| 28 | 502007253 | Deep Black, RH Bottom Pan |
| 29 | 502007254 | Deep Black, LH Bottom Pan |
| 30 | 502007261 | GUARD PLATE - Call your local BRP dealership |
| 31 | 502007263 | RH Bottom Pan Cap Foam |
| 32 | 502007264 | LH Bottom Pan Cap Foam |
| 43 | 517124300 | Washer |
| 44 | 517305029 | Pre-Filter |
| 45 | 517305109 | Rivet Plate |
| 46 | 517305122 | LH Cap |
| 47 | 517305123 | RH Cap |
| 48 | 517305280 | Stopper Bumper |
