502007404
YELLOW FRONT BOTTOM PAN - Call your local BRP dealership

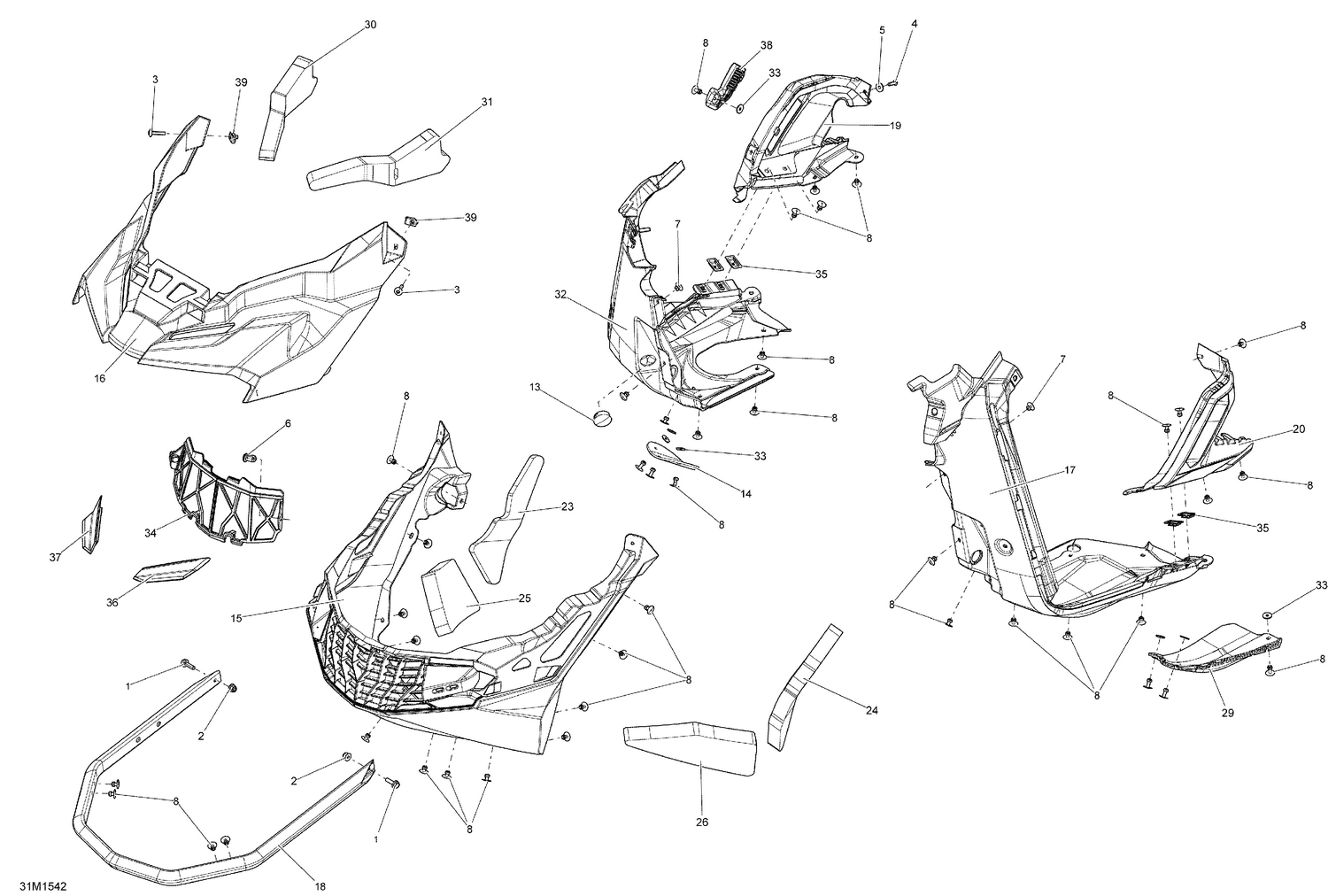

Схема сборки, где используется деталь
Used in (3 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Bottom Pan _31M1542 | Ski-Doo / 2015 / MX Z / MXZ X-RS 600HOE XS RS, 2015 000BMFA00 000BMFB00 / 09- Bo | 15 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2016 / MXZ Family / MXZ 600 RS, 2016 000BMGA00 000BMGB00 / 09- Bottom | 16 |
| SKI_DOO_EN_US | 09- Bottom Pan | Ski-Doo / 2017 / MXZ Family / MXZ 600 RS, 2017 000BMHA00 000BMHB00 / 09- Bottom | 10 |
