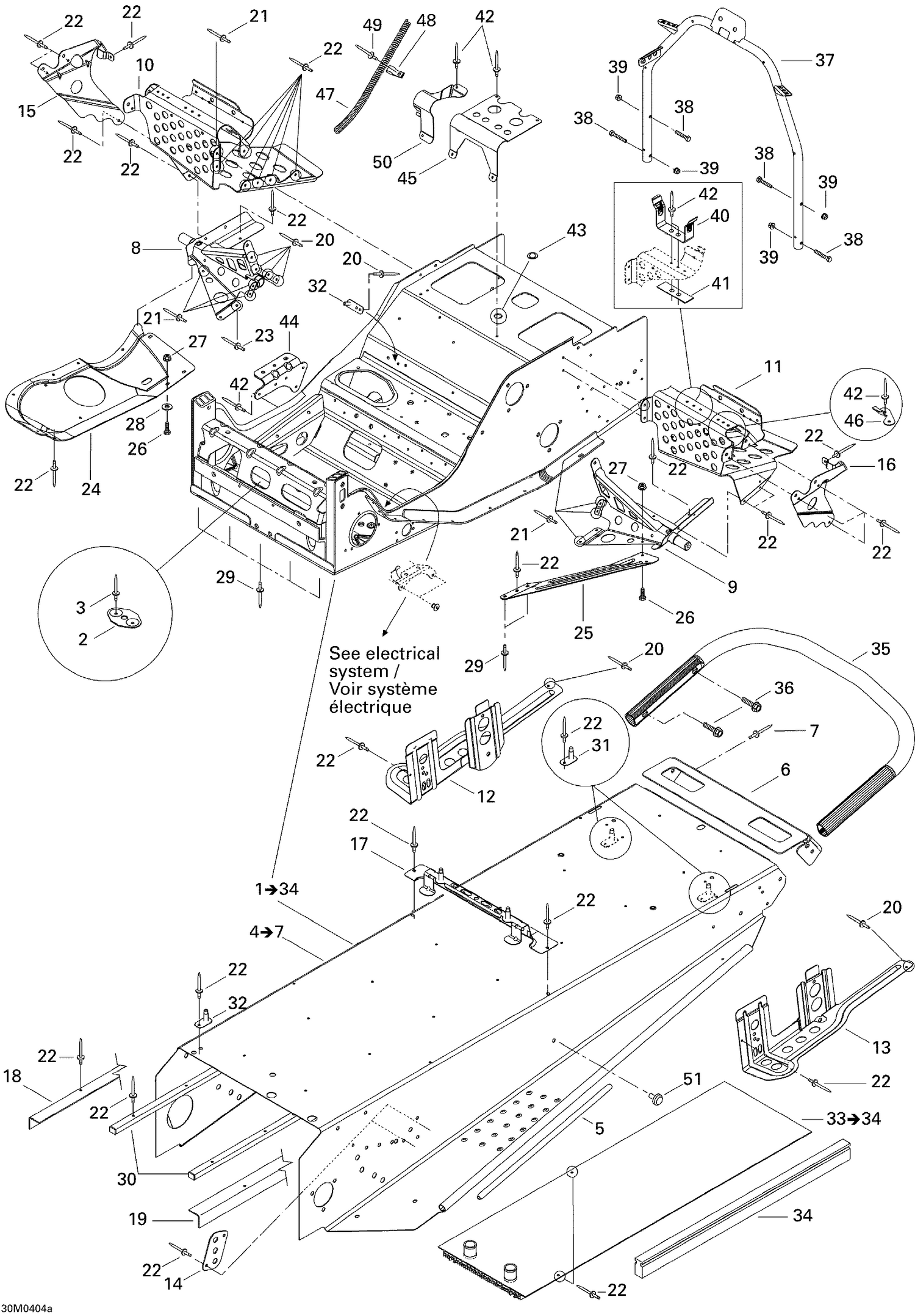

| Ref | Part Number | Description |
|---|
| 2 |
518201307 |
Plate Bracket |
| 3 |
390402200 |
Pop Rivet 3/16" |
| 5 |
518304746 |
FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 6 |
518321303 |
REAR CAP - Call your local BRP dealership |
| 7 |
390402200 |
Pop Rivet 3/16" |
| 8 |
518320506 |
RH Footrest Support |
| 9 |
518320507 |
LH SOOTREST SUPPORT - Call your local BRP dealership |
| 10 |
518323563 |
RH Footrest |
| 11 |
518323564 |
LH FOOTREST - Call your local BRP dealership |
| 12 |
518323315 |
RH SLIDE BRACKET - Call your local BRP dealership |
| 13 |
518323318 |
LH SLIDE BRACKET - Call your local BRP dealership |
| 14 |
518201321 |
REINFORCEMENT PLATE - Call your local BRP dealership |
| 15 |
518321305 |
RH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 16 |
518321307 |
LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 17 |
518321510 |
FUEL TANK BRACKET - Call your local BRP dealership |
| 18 |
518323193 |
RH Frame Reinforcement |
| 19 |
518323195 |
LH Frame Reinforcement |
| 20 |
390909200 |
Avex Rivet |
| 21 |
390909100 |
Avex Rivet |
| 22 |
390402200 |
Pop Rivet 3/16" |
| 23 |
390402300 |
Pop Rivet 3/16" |
| 25 |
518322119 |
LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 26 |
207152044 |
Hex. Screw M5 X 20 |
| 27 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 28 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 29 |
390910300 |
HENROB RIVET - Call your local BRP dealership |
| 30 |
518321543 |
Frame Protector |
| 31 |
518323321 |
Seat Bracket |
| 32 |
518323173 |
Double Bracket |
| 34 |
518321655 |
Radiator Protector |
| 35 |
518322708 |
REAR BUMPER - Call your local BRP dealership |
| 36 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 37 |
518322755 |
Handle Support |
| 38 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
518202100 |
Belt Guard Bracket |
| 41 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 42 |
390402200 |
Pop Rivet 3/16" |
| 43 |
414859400 |
CAP - Call your local BRP dealership |
| 44 |
518322635 |
Muffler Support |
| 45 |
518310400 |
AIR INTAKE SUPPORT - Call your local BRP dealership |
| 46 |
518322031 |
TOOL KIT BRACKET - Call your local BRP dealership |
| 47 |
518321569 |
ROPE GUIDE - Call your local BRP dealership |
| 48 |
518321570 |
Open Clamp |
| 49 |
293150103 |
Pop Rivet 3/16" |
| 50 |
518322699 |
Hose Support |
