518323195
LH Frame Reinforcement

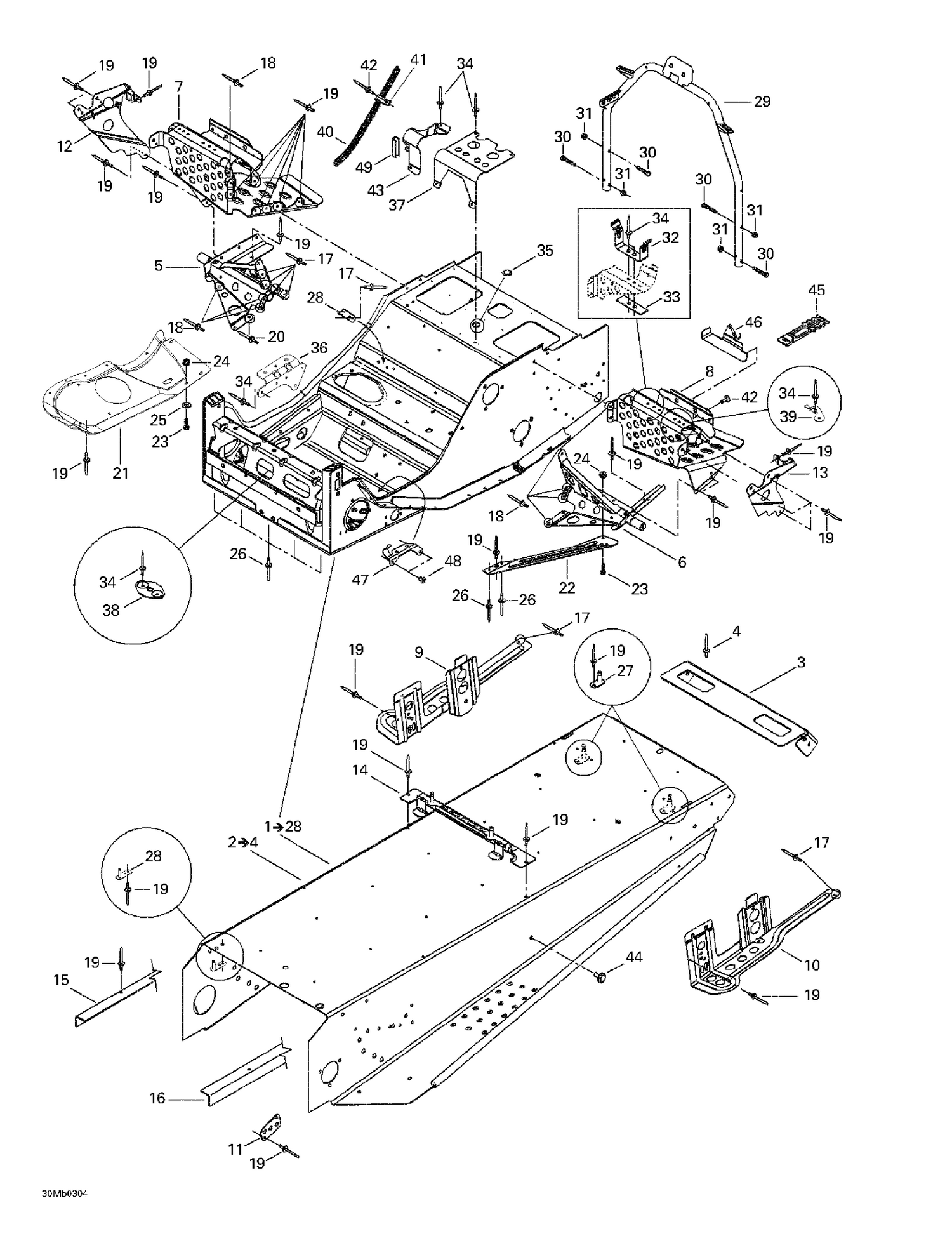

Схема сборки, где используется деталь
Used in (8 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Frame And Accessories | Ski-Doo / 2003 / Legend / Legend 380F/550F, 2003 / 09- Frame And Accessories | 16 |
| SKI_DOO_EN_US | 09- Frame And Accessories | Ski-Doo / 2003 / Legend / Legend 500/600/700, 2003 / 09- Frame And Accessories | 17 |
| SKI_DOO_EN_US | 09- Frame (Legend) | Ski-Doo / 2004 / Legend / Legend 380F, 2004 / 09- Frame (Legend) | 16 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / Legend / Legend 500 SS, 2004 / 09- Frame | 19 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / Legend / Legend 600 HO SDI, 2004 / 09- Frame | 19 |
| SKI_DOO_EN_US | 09- Frame (1 Passenger Seat) | Ski-Doo / 2004 / Legend / Legend V-1000, 2004 / 09- Frame (1 Passenger Seat) | 17 |
| SKI_DOO_EN_US | 09- Frame (MX Z) | Ski-Doo / 2004 / MX Z / MX Z 380F, 2004 / 09- Frame (MX Z) | 16 |
| SKI_DOO_EN_US | 09- Frame, 1 Passenger Seat | Ski-Doo / 2005 / Legend / Legend V-1000, 2005 / 09- Frame, 1 Passenger Seat | 17 |
